Description

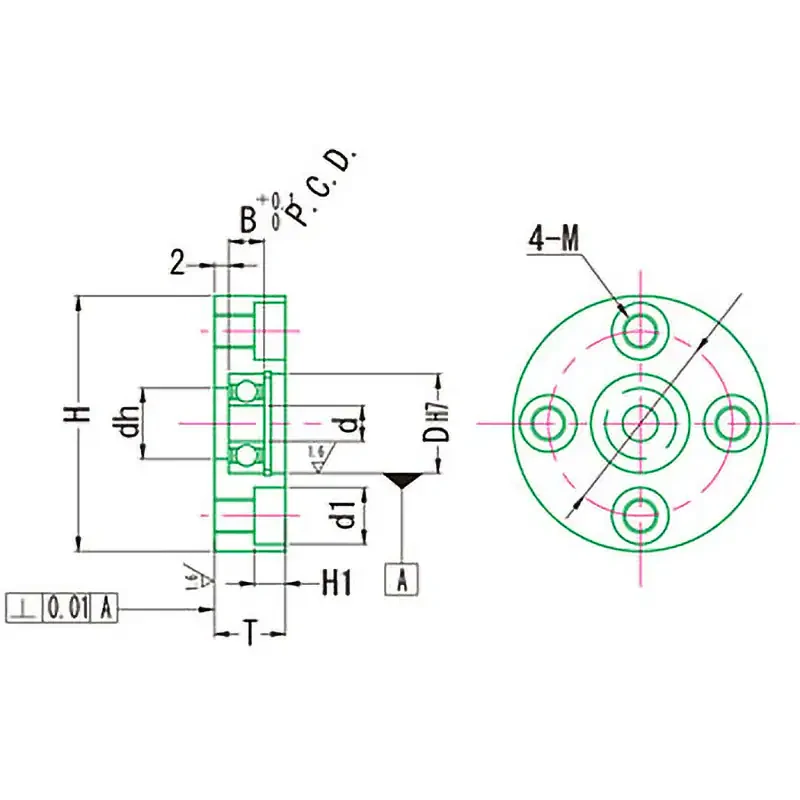

Dimension D (mm): (H7) Tolerance: 24.+0.021
Dimension DH (mm): 21
Dimension H: 1 (mm): 4.4
Dimension P.C.D. (mm): 38
Dimension D (mm): 12
Material: (H)/Lead-Free Electroless Nickel Plating, (B)/Bearing Steel
Weight (g): 121
Dimension T: 11
Dimension B: 6
Dimension H: 48
Dimension D: 18
Dimension M (Bottom Hole): M5*P0.8 (4.3)
