Description

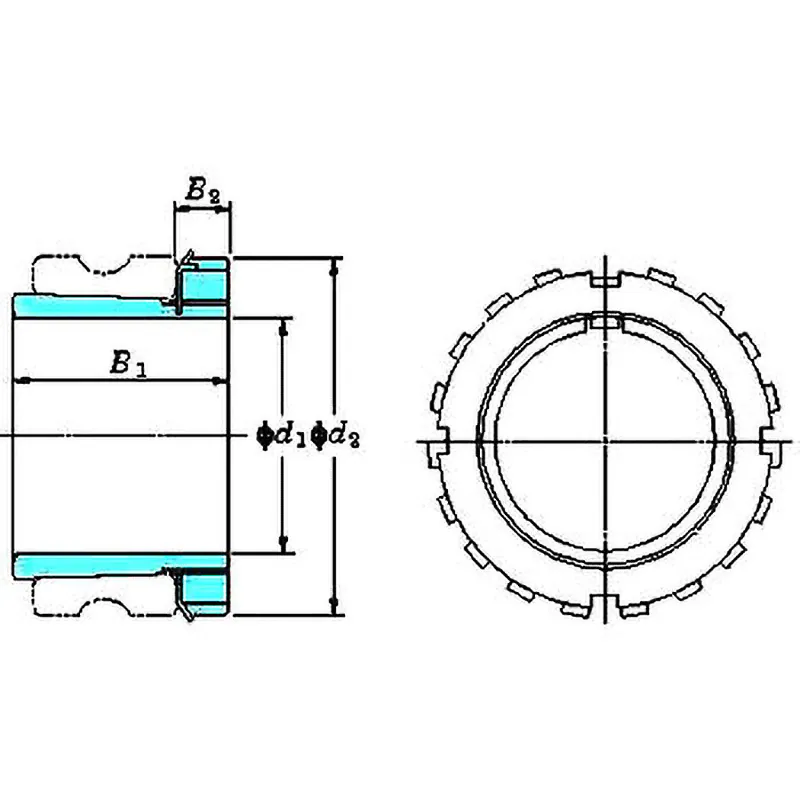

Dimensions B1 (mm): 59
Dimensions B2 (mm): 17
Dimensions d2 (mm): 105
Axis hole diameter d1 (mm): 70
Usage: Fixing the axis
Type: Adapter
Type H
Compatible: Sleeve A316X
RoHS Directive (10 substances compliance): Compliant
Compatible: Bearing UK216, UKP216, UKF216
Used nut: AN16
Used washer: AW16X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
