Description
Description
Quantity: 1 piece
Number of notches: 3
Contact configuration: 1a1b
Notch angle (degrees): 45

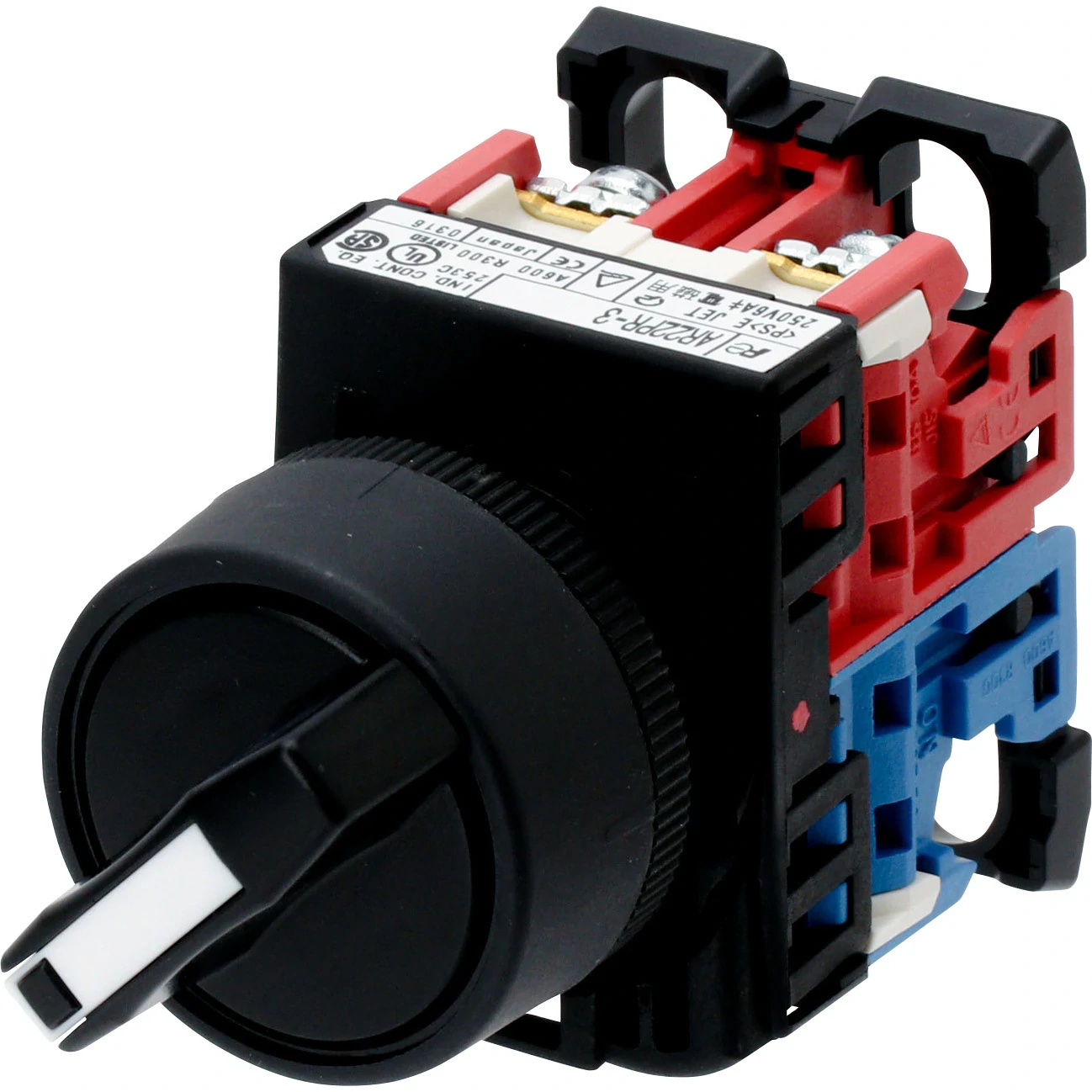

Part number: AR22PR-311B
Protection structure: Operating section: IP65 (Oil-resistant type)
Contact configuration: 1a1b
Frame: Round frame
Notch angle (degrees): 45
Number of notches: 3

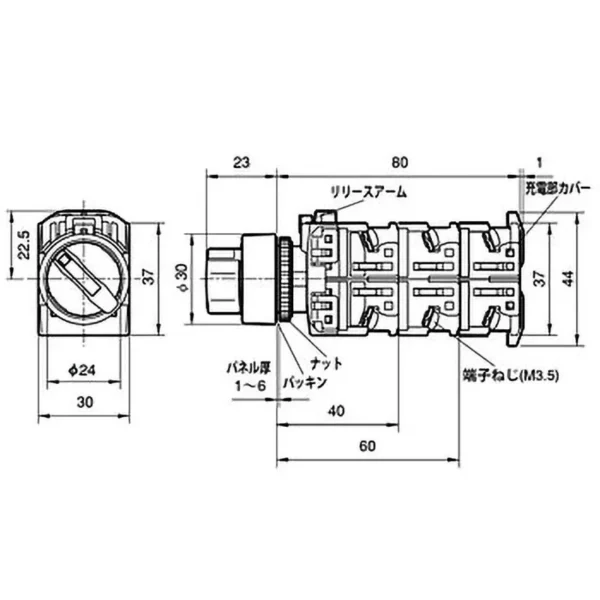

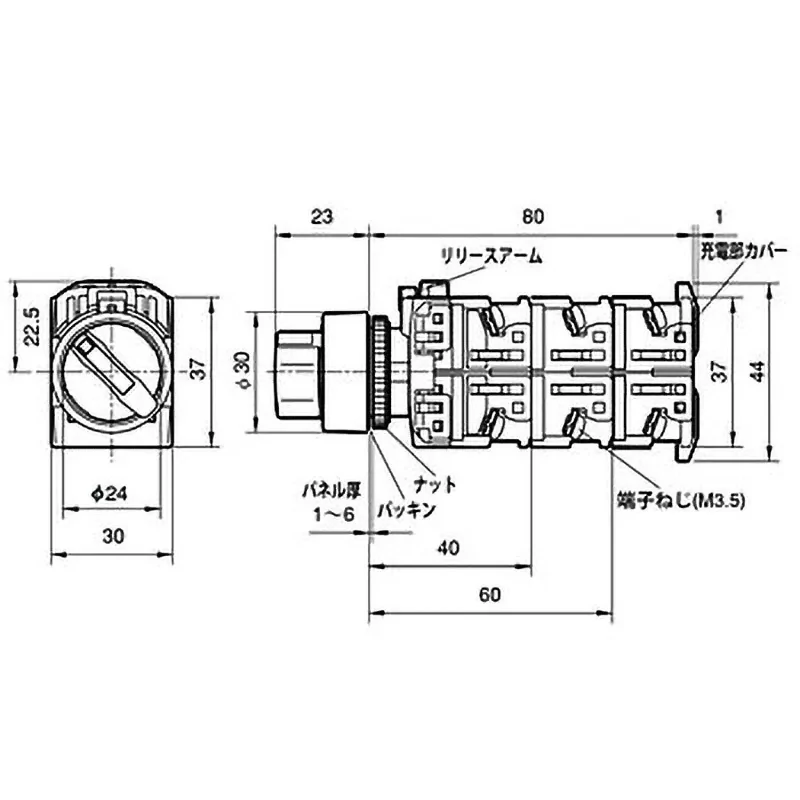

Mounting dimensions (mm): Diameter 22.3, Diameter 25.5 compatible
Mounting hole diameter (Diameter mm): 22
Rated operating current (A): AC-15 (Coil load): 24V/6, 110V/6, 220V/6, 440V/2.5; DC-13 (Coil load): 24V/4, 110V/1.3, 220V/0.45; DC-12 (Resistive load): 24V/6, 110V/2.5, 220V/1
Reset method: Manual
Operating section shape: Knob type
Mechanical durability: Over 1 million times
Type: Standard type
Category: Selector
Dielectric strength: Charging part to ground, between different charging parts: AC2500V for 1 minute
Rated insulation voltage (V): AC/DC600
Rated frequency (Hz): 50/60
Terminal screw: M3.5 with square washer, plus and minus compatible screw (self-tapping type)
Storage temperature (Celsius degrees): -40 to 80
Insulation resistance (Megaohm): Charging part to ground, between different charging parts: 100 or more (measured with DC500V megger)
Operating ambient temperature (Celsius degrees): -20 to 70 (however, without freezing or condensation)
Electrical durability: Over 500,000 times (at AC220V 6A): Over 1 million times (at AC220V 3A)
Short circuit protection device: Fuse 15A
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Vibration resonance test: Complex amplitude 0.1mm, Frequency: 10-55Hz; Constant vibration endurance test: Complex amplitude 3.0mm, Frequency: 16.7Hz
Rated continuous current (A): 10
Switching frequency (times/hour): 1200 (usage rate 40%)
Material (ring) (round): Made of resin
Color (knob): Black
Conditional short-circuit current (A): 1000
Relative humidity (%RH): Inside panel: 45-85 (-5 to 40 Celsius degrees) (however, without freezing or condensation)
Impact resistance (malfunction) (m/s2): 100
Impact resistance (durability) (m/s2): 500
Special response product –
Pre-tightening structure
Contact transformer unit addition and replacement with one touch
Two-direction wiring to improve work efficiency
