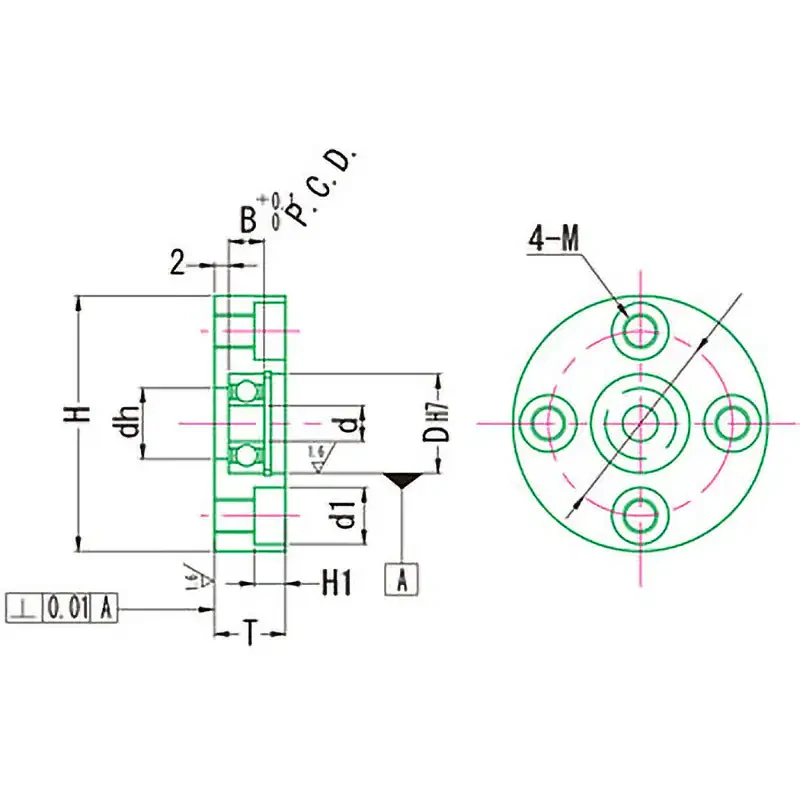

Description
Dimension D (mm): (H7) Tolerance: 62+0.030
Dimension DH (mm): 55
Dimension H1 (mm): 8.6
Dimension P.C.D. (mm): 88
Dimension D (mm): 30
Material: (H)/Lead-Free Electroless Nickel Plating, (B)/Bearing Steel
Weight (g): 1129
Dimension T: 23
Dimension B: 16
Dimension H: 104
Dimension D: 114
Dimension M (Bottom Hole): M10*P1.5(8.5)
