Description
Quantity: 1 piece
Number of Notches: 2
Contact Configuration: 1a1b
Notch Angle (degrees): 90

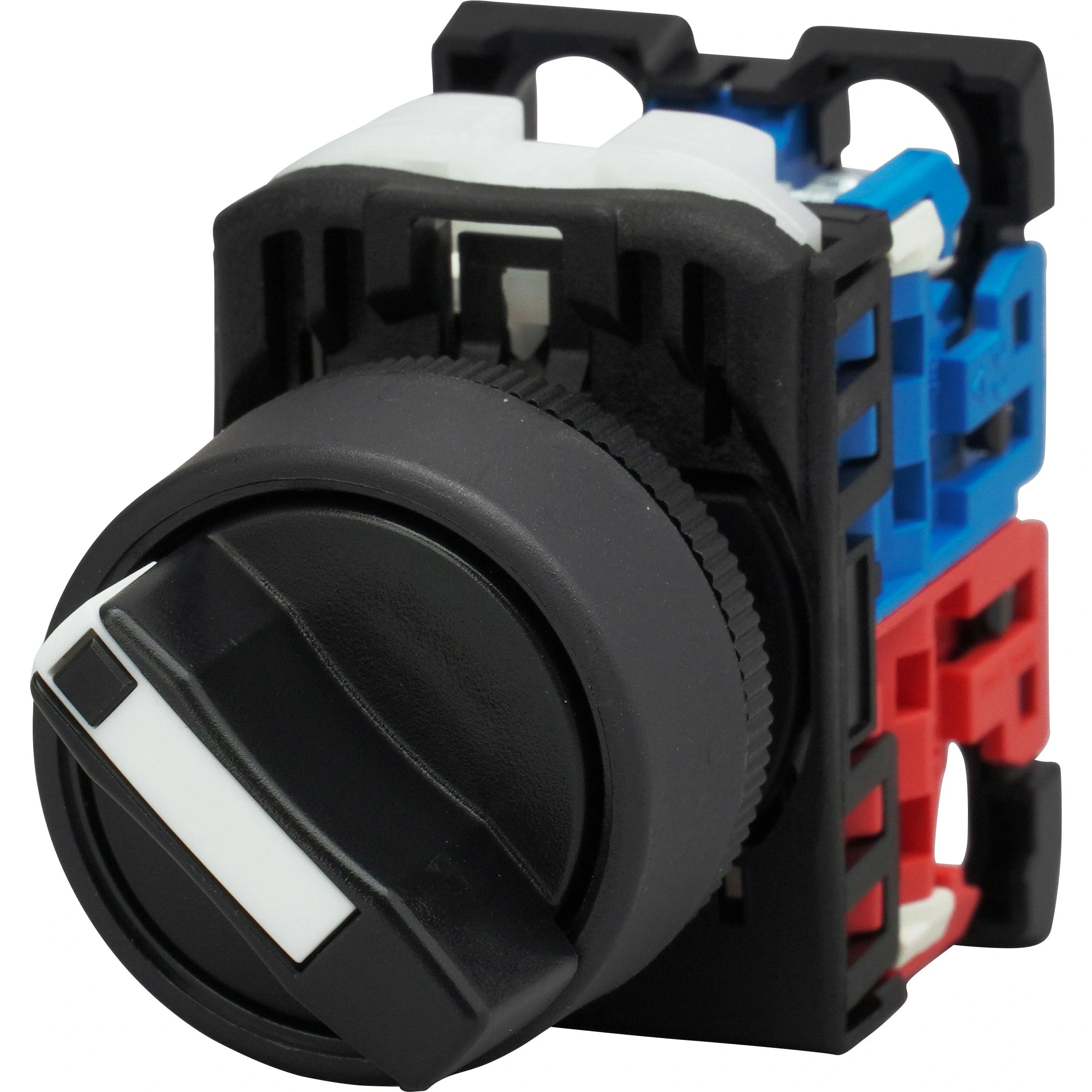

Part Number: AR22PR-211B
Protection Structure: Operating Part: IP65 (Oil-resistant)
Contact Configuration: 1a1b
Frame: Round Frame
Notch Angle (degrees): 90
Number of Notches: 2

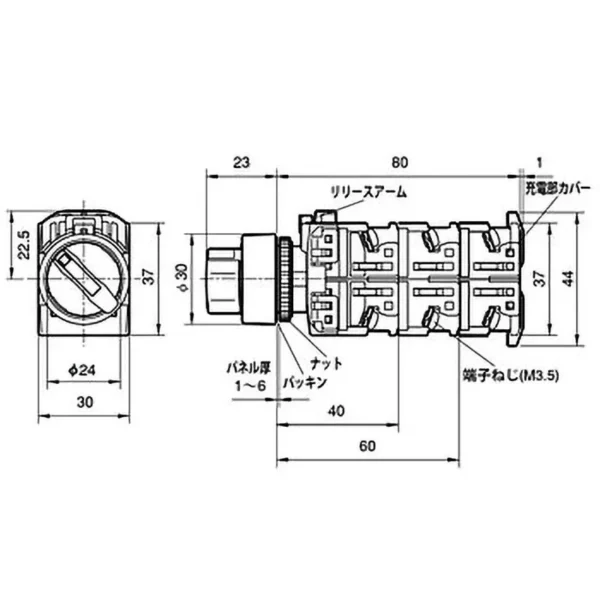

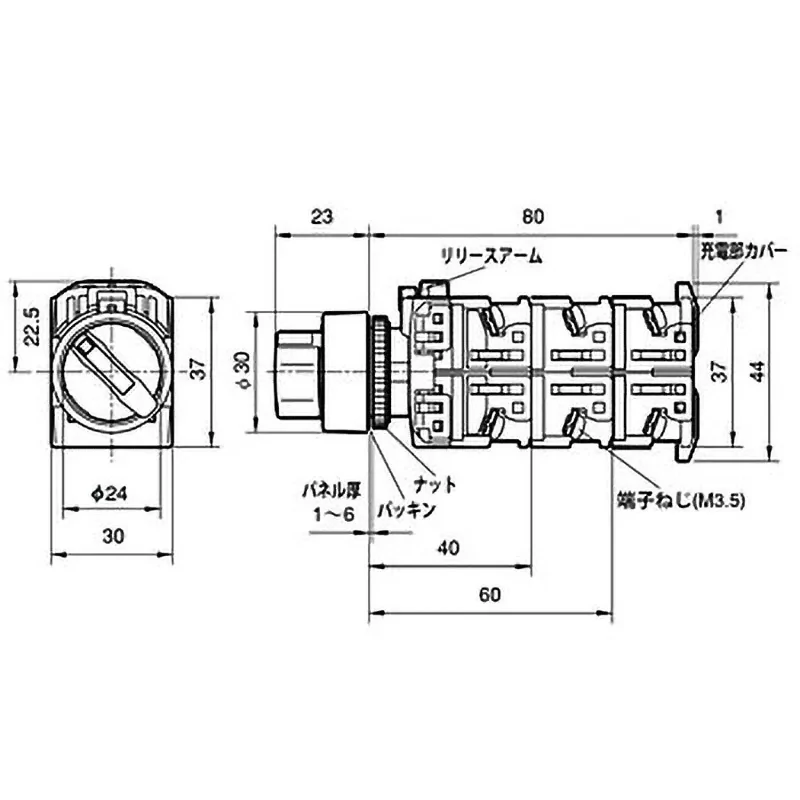

Mounting Dimensions (mm): Diameter 22.3 / Diameter 25.5 common
Mounting Hole Diameter (Diameter mm): 22
Rated Operating Current (A): AC-15 (Coil Load): 24V/6, 110V/6, 220V/6, 440V/2.5 DC-13 (Coil Load): 24V/4, 110V/1.3, 220V/0.45 DC-12 (Resistive Load): 24V/6, 110V/2.5, 220V/1
Return Method: Manual
Operating Part Shape: Knob Type
Mechanical Durability: Over 1 million times
Type: Standard Type
Category: Selector
Withstand Voltage: Between Charged Part and Earth, Between Different Poles of Charged Part: AC2500V for 1 minute
Rated Insulation Voltage (V): AC/DC600
Rated Frequency (Hz): 50/60
Terminal Screw: M3.5 with Square Washer, Plus/Minus Dual-purpose Screw (Self-up type)
Storage Temperature (Celsius degrees): -40 to 80
Insulation Resistance (Megaohm): Between Charged Part and Earth, Between Different Poles of Charged Part: Over 100 (using DC500V megger)
Operating Ambient Temperature (Celsius degrees): -20 to 70 (no freezing or condensation)
Electrical Durability: Over 500,000 times (at AC220V 6A): Over 1 million times (at AC220V 3A)
Short Circuit Protection Device: Fuse 15A
Rated Impulse Withstand Voltage (kV): 6
Pollution Degree (Operating Environment): 3
Vibration Resonance Test: Complex Amplitude 0.1mm, Frequency: 10-55Hz, Constant Vibration Durability Test: Complex Amplitude 3.0mm, Frequency: 16.7Hz
Rated Continuous Current (A): 10
Switching Frequency (times/hour): 1200 (Usage Rate 40%)
Material (Ring) (Round): Made of Resin
Color (Knob): Black
Conditional Short-Circuit Current (A): 1000
Relative Humidity (%RH): Inside Panel: 45-85 (-5 to 40 Celsius degrees) (no freezing or condensation)
Impact Resistance (Malfunction) (m/s2): 100
Impact Resistance (Durability) (m/s2): 500
Special Correspondence Product –
Pre-tightening Structure
Contact Transformer Unit can be added or replaced with one touch
