Description
Description: Quantity: 1 piece
Coil rated voltage (V): AC100
Suitable motor capacity (200闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.2
Suitable motor capacity (380闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.7
Suitable motor capacity (500闂?50V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.7
Suitable motor capacity (200闂?20V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.2

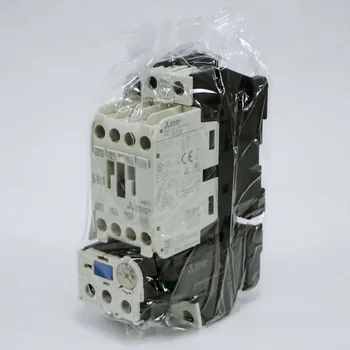

Part number: MSO-T10 1.5KW 200V AC100V
Motor capacity (kW): 1.5
Auxiliary contact: 1a
Frame: T10
Suitable thermal relay: With 2-element thermal relay, (Model Name): TH-T18
Heater rating (A): 6.6
Heat element rated setting range (A): 5.2闂?
Coil rated voltage (V): AC100
Type: Open type
Category: Electromagnetic Contactor
Operating method: Non-reversible
Main circuit voltage (V): 200
Specifications: Terminal section specifications: Standard specifications, Operating coil input: Continuous/7VA, Instantaneous input/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.36
Mounting method: IEC 35mm rail, screw
Form: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated insulation voltage (V): 690
Rated operating current (A): Three-phase squirrel-cage motor (AC-3 grade): (200闂?20V) 11/(380闂?40V) 7/(500闂?50V) 6, Resistive load (AC-1 grade) (200闂?40V) 20/(380闂?40V) 11
Mechanical durability: 10 million times
Electrical durability: AC-3 grade: 2 million times, AC-4 grade: 30,000 times, AC-1 grade: 500,000 times
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Switching frequency (times/hour): AC-3 grade: 1800, AC-4 grade: 300, AC-1 grade: 1200
Open thermal current (A): 20
Operating method: Operating coil, Operating circuit: Standard specifications
Suitable motor capacity (200闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.2
Suitable motor capacity (380闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.7
Suitable motor capacity (500闂?50V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.7
Suitable motor capacity (200闂?20V) (kW): Three-phase squirrel-cage motor (AC-3 grade): 2.2
The miniaturization of the Electromagnetic Contactor has been realized in many ratings.
By standardizing the terminal cover, the effort of specifying different model names for customers and arranging options is reduced, leading to inventory reduction and cost savings from the cover. Of course, safety is also improved as protection for the charging section.
In the old series, the number of operating coil ratings was reduced from 14 types to 8 types, expanding the applicable voltage range. This not only reduces customer inventory but also achieves shorter delivery times by consolidating coil manufacturing types.
It is suitable for motor overload and constraint protection.
