Description

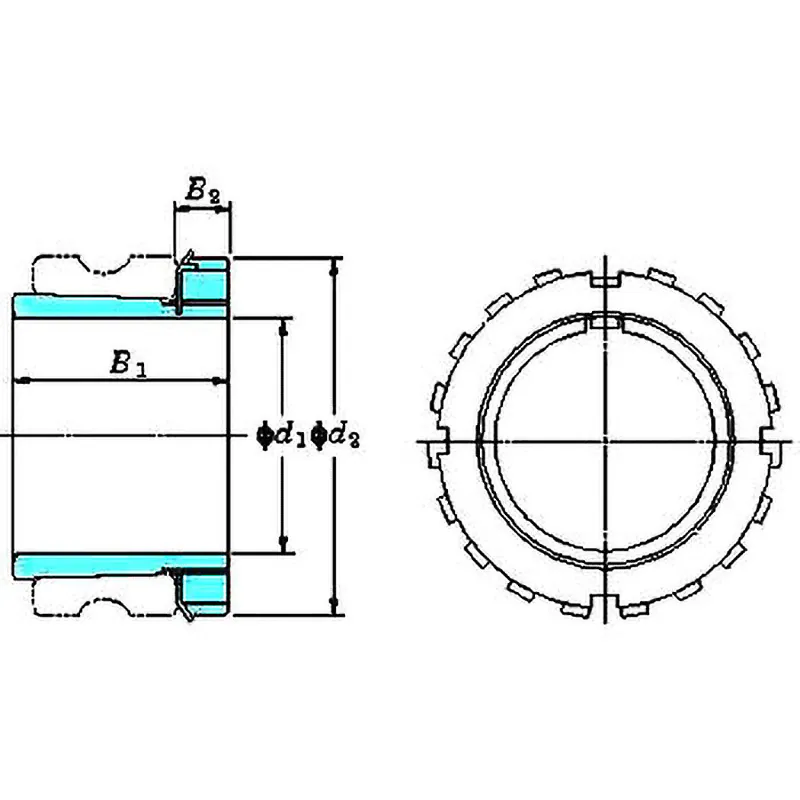

Dimensions B1 (mm): 65
Dimensions B2 (mm): 14
Dimensions d2 (mm): 85
Axis hole diameter d1 (mm): 60
Usage: Fixing the axis

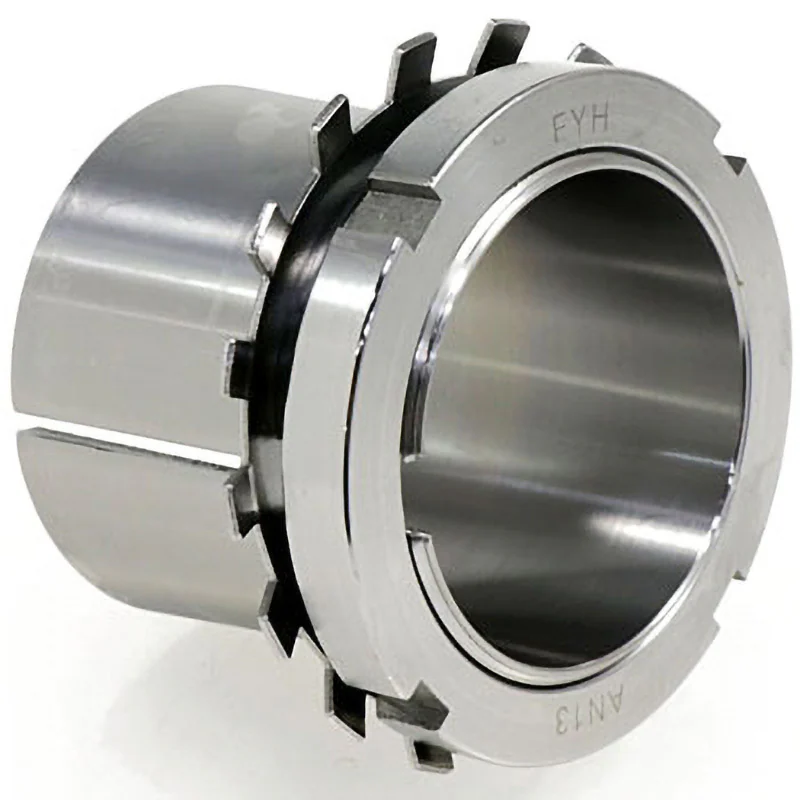

Type: Adapter
Type H
Compatible: Sleeve A2313X
RoHS Directive (10 substances compliance): Compliant
Compatible: Bearing UK213, UKP213, UKF213
Used nut: AN13
Used washer: AW13X
Manufacturer
Washers, sleeves, and lock nuts are replaceable individually.
