Description

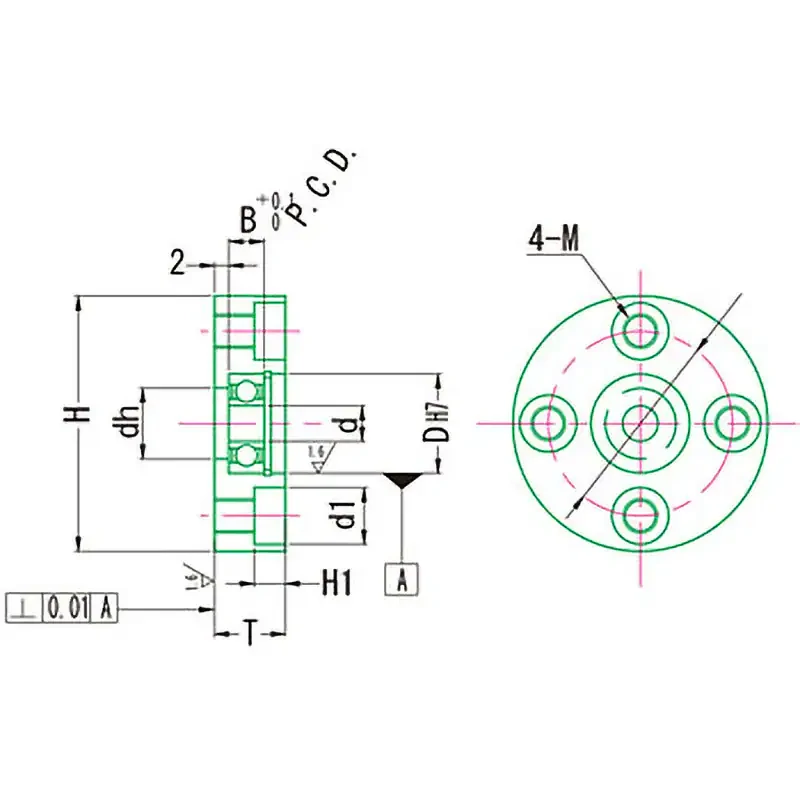

Dimension D (mm): (H7) Tolerance: 47 +0.025
Dimension DH (mm): 40
Dimension H (mm): 6.5
Dimension P.C.D. (mm): 68
Dimension D (mm): 20
Material: (H)/ Lead-Free Electroless Nickel Plated, (B)/ Bearing Steel
Weight (g): 616
Dimension T: 20
Dimension B: 14
Dimension H: 81
Dimension D: 111
Dimension M (Bottom Hole): M8*P1.25 (6.8)
