Description

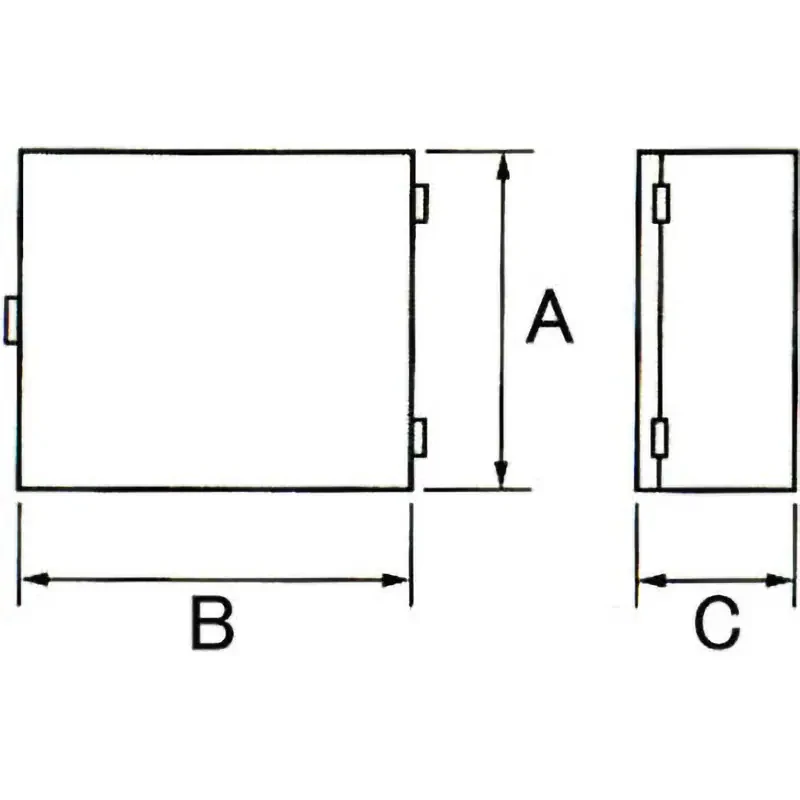

Dimensions (Height A * Width B * Depth C) (mm): 250 * 200 * 160
Effective Depth (mm): 143
Base Plate Dimensions (Height * Width) (mm): 200 * 150
Protection Level: IP4X
Weight (kg): 3.4
Color: Cream
Specification: With Gasket

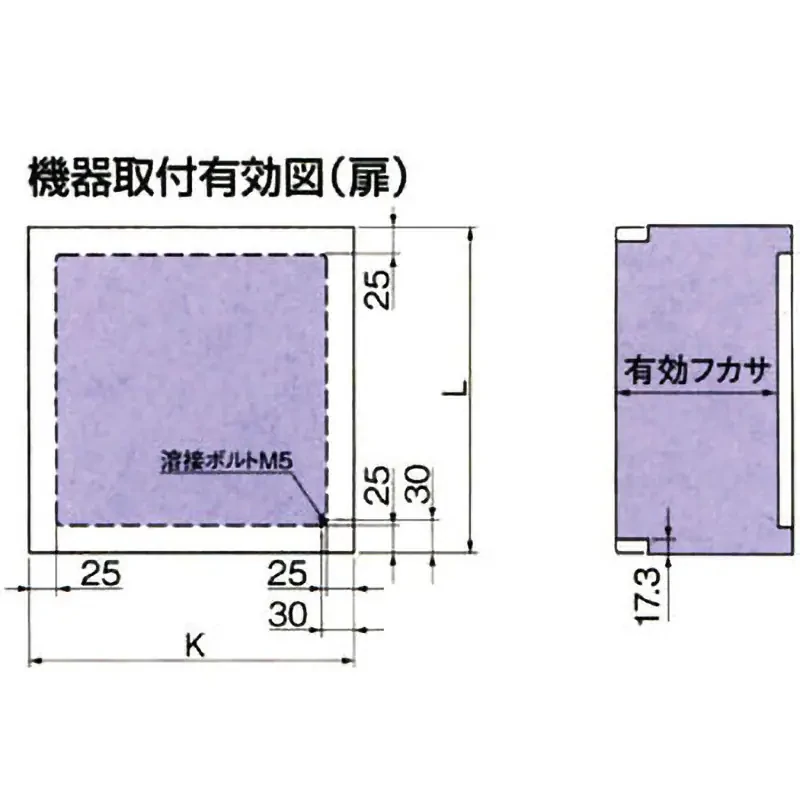

Dimension L (mm): 247
Plate Thickness (mm) (Door): 1.6 / (Body): 1.2
Handle Snap Latch (Made of Stainless Steel)
Dimension K (mm): 198
Coating Color: Cream Coating (2.5Y9/1)
Door Opening Method: Single Opening
Installation Location: Indoor
Coating: Powder Coating
Material (Base Plate): Made of Iron
Material (Box): Iron
RoHS Directive (10 Substances Compliance): Compliant
The adoption of a catch allows for smooth opening and closing of the door!
The grounding terminal uses a brass screw.
The fixing of the iron base plate adopts a nut holder type with minimal screw protrusion.
