Description
Inner diameter d (mm): 25;
Outer diameter D (mm): 52;
Width B (mm): 15;
Shield shape: Open type;
Basic dynamic load rating Cr (N): 14000;
Basic static load rating Cor (N): 7850;
Material: (Main body) High carbon chromium bearing steel;
Chamfer dimension r (mm): 1;
Allowable rotational speed (/min [r.p.m]) Oil lubrication: 15000;
JIS grade: 0;
Load direction: Radial;
Outer ring type: Flat;

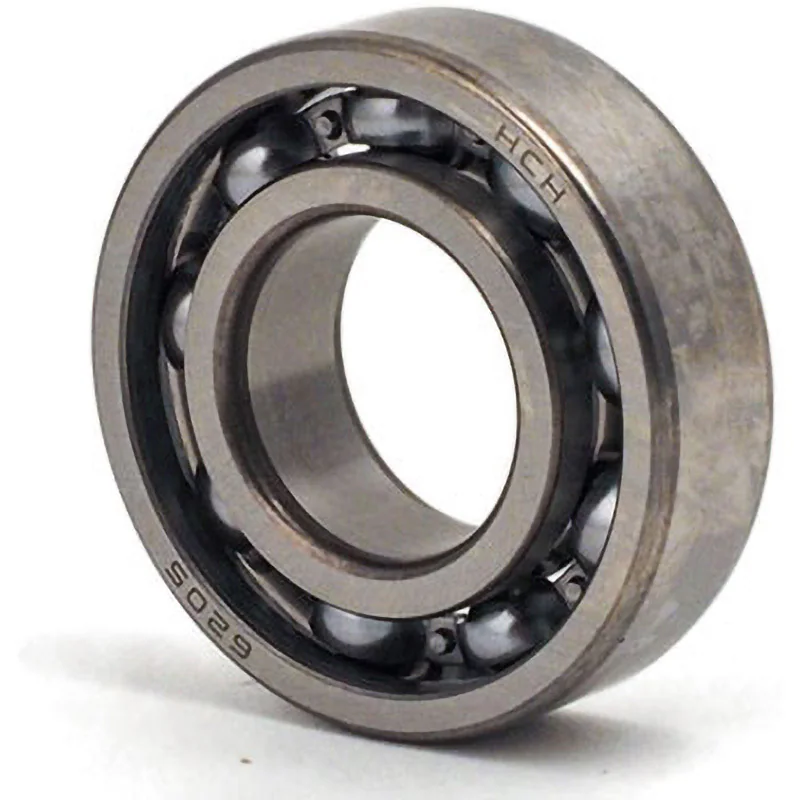

Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6200
