Description
Description: Quantity: 1 piece

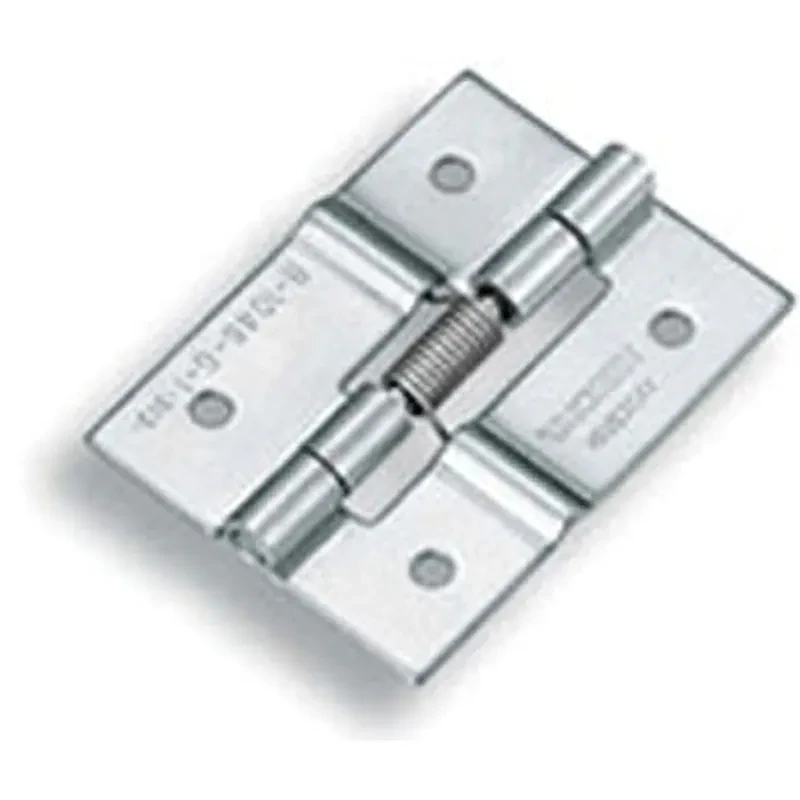

Item Number: B-1046-G-1

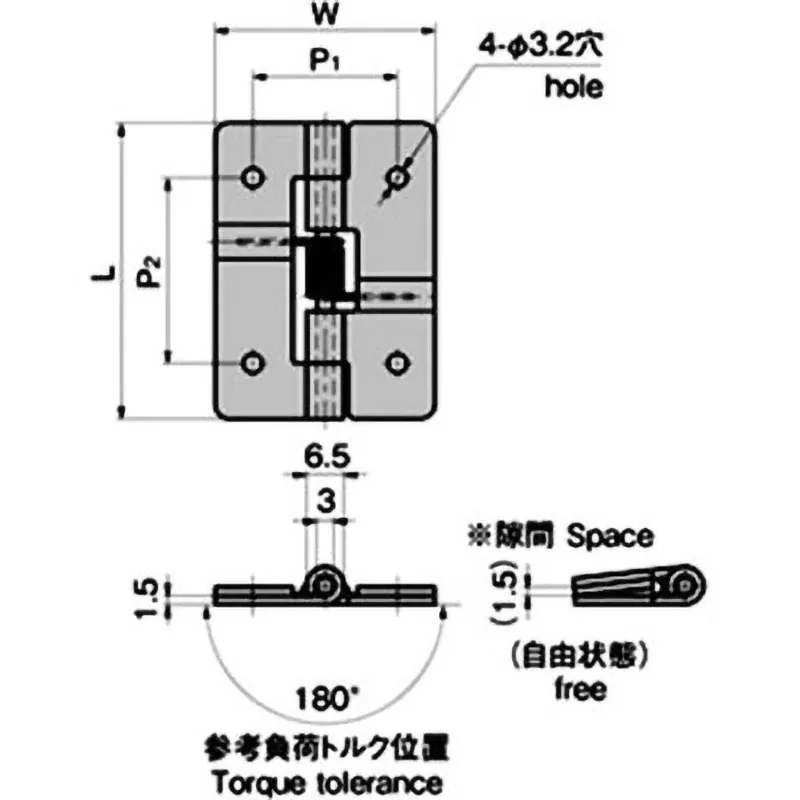

Dimension L(mm): 51
Dimension P1(mm): 25
Dimension P2(mm): 32
Dimension W(mm): 38
Material: Stainless Steel Plate (SUS304)
Application: Small Door Measurement Equipment Communication Equipment
Weight (g): 27
Surface Finish: Glossy Barrel Polishing
Takigen Code: 13270
Rated Torque (cN*m): 13.1
A reaction force acts in the closing direction.
The reverse spring specification of the conventional spring hinge B-1046-1 is compatible for installation.
It is excellent in corrosion resistance due to Stainless Steel.
