Description

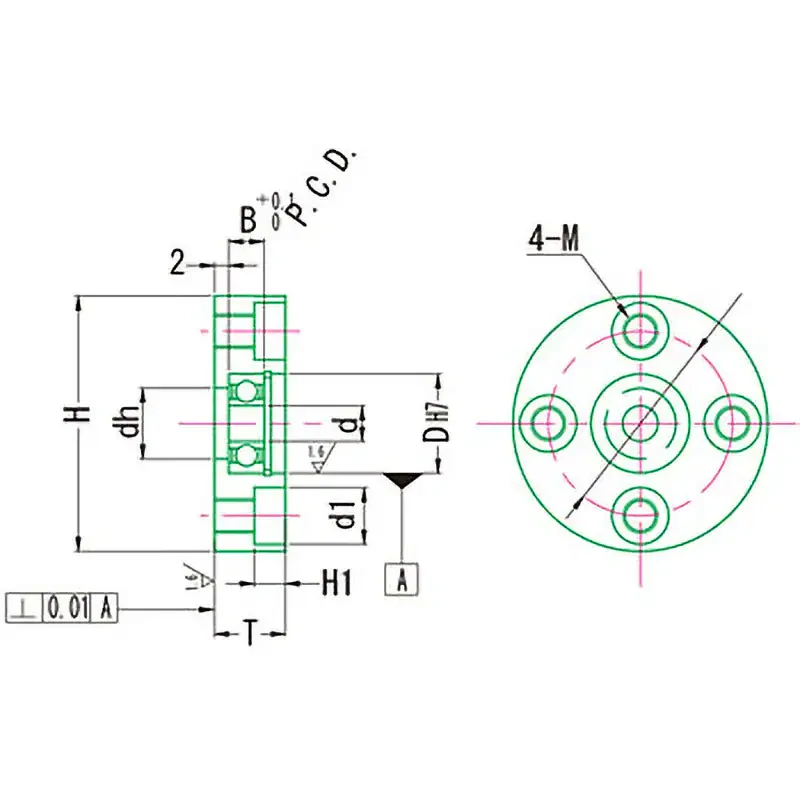

Dimension D (mm): (H7) Tolerance: 30 +0.021
Dimension DH (mm): 24
Dimension H: 1 (mm): 4.4
Dimension P.C.D. (mm): 44
Dimension D (mm): 10
Material: (H)/ Lead-Free Electroless Nickel Plating, (B)/ Bearing Steel
Weight (g): 202
Dimension T: 14
Dimension B: 9
Dimension H: 54
Dimension D: 18
Dimension M (Bottom Hole): M5*P0.8 (4.3)
