Description

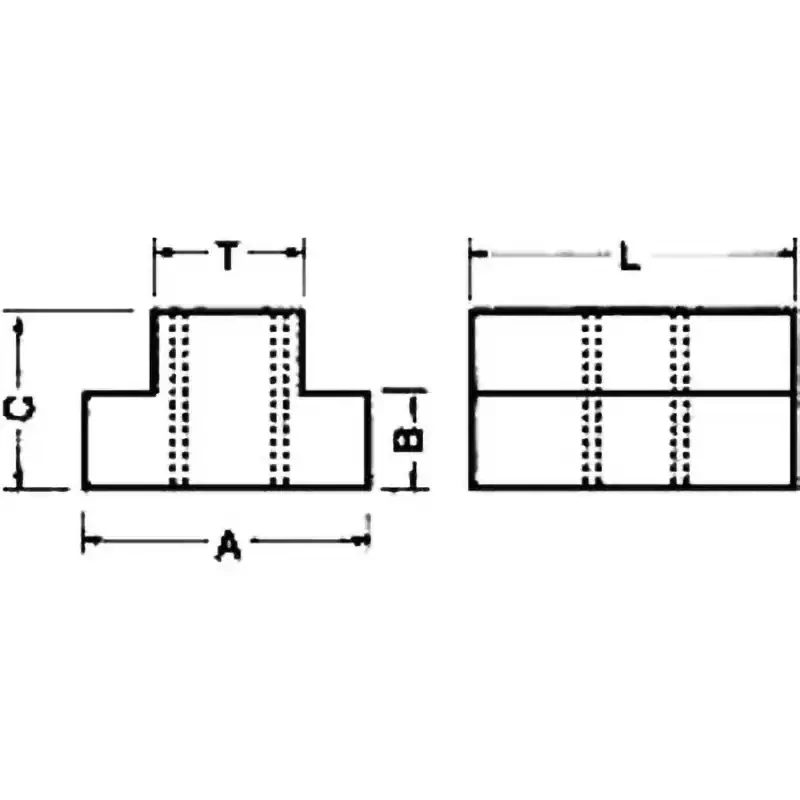

Dimensions A (mm): 28
Dimensions B (mm): 10
Dimensions C (mm): 20
Dimensions H (mm): 20
Dimensions L (mm): 32
Dimensions T (mm): 18
Screw diameter: M16*2.0
TRUSCO Part No. 108-6855
Material: S45C
Weight (g): 84
Pitch: Standard
Finish: Black Oxide
Heat-Treated Quenching
The bolt is processed to ensure it does not protrude and damage the machine table.
