Description
Description: Quantity: 1 piece
Coil rated voltage (V): AC200
Suitable motor capacity (200-240V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.2
Suitable motor capacity (380-440V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.7
Suitable motor capacity (500-550V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.7
Suitable motor capacity (200-220V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.2

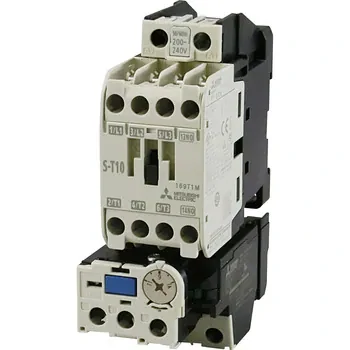

Part number: MSO-T10 2.2KW 200V AC200V
Motor capacity (kW): 2.2
Auxiliary contact: 1a
Frame: T10
Compatible thermal relay: 2-element thermal relay included, (model name): TH-T18
Heater calling (A): 9
Heat element rated setting range (A): 7-11
Coil rated voltage (V): AC200
Type: Open type
Category: Electromagnetic Contactor
Operating method: Non-reversible
Main circuit voltage (V): 200
Specifications: Terminal part specifications: Standard specifications, operating coil input: Constant/7VA, instant on/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.36
Mounting method: IEC 35mm rail, screws
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated insulation voltage (V): 690
Rated operating current (A): Three-phase squirrel-cage motor (AC-3 level): (200-220V) 11/(380-440V) 7/(500-550V) 6, resistive load (AC-1 level) (200-240V) 20/(380-440V) 11
Mechanical durability: 10 million times
Electrical durability: AC-3 level: 2 million times, AC-4 level: 30,000 times, AC-1 level: 500,000 times
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Switching frequency (times/hour): AC-3 level: 1800, AC-4 level: 300, AC-1 level: 1200
Open thermal current (A): 20
Operating method: Operating coil, operating circuit: Standard specifications
Suitable motor capacity (200-240V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.2
Suitable motor capacity (380-440V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.7
Suitable motor capacity (500-550V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.7
Suitable motor capacity (200-220V) (kW): Three-phase squirrel-cage motor (AC-3 level): 2.2
The miniaturization of Electromagnetic Contactors has achieved compactness in many ratings.
By standardizing the terminal cover, the effort of specifying different model names for customers and arranging options has been reduced, leading to inventory reduction and cost reduction effects from the cover. Of course, safety is also improved as protection for the charging part.
In the old series, the number of operating coil ratings was reduced from 14 to 8 types. The applicable voltage range has been expanded. This not only reduces customer inventory but also realizes shorter delivery times through the consolidation of coil manufacturing types.
It is suitable for motor overload and binding protection.
