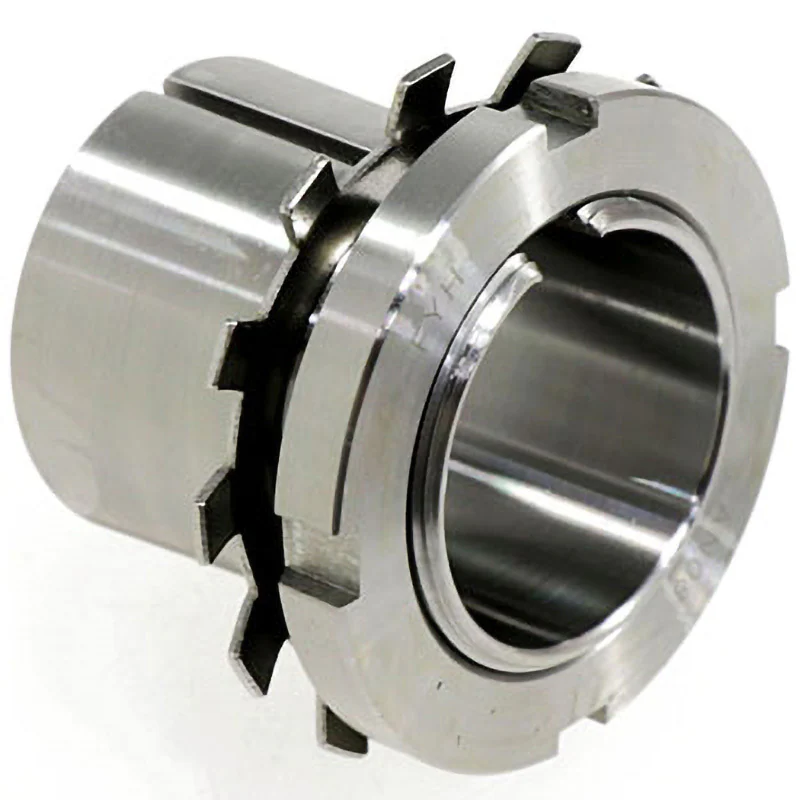

NSK (Nippon Seiko Co., Ltd.) Adapter for Shaft Support H300X H2300X > H2308X

¥1,187

SKU: r22104251b799 Category:

Description

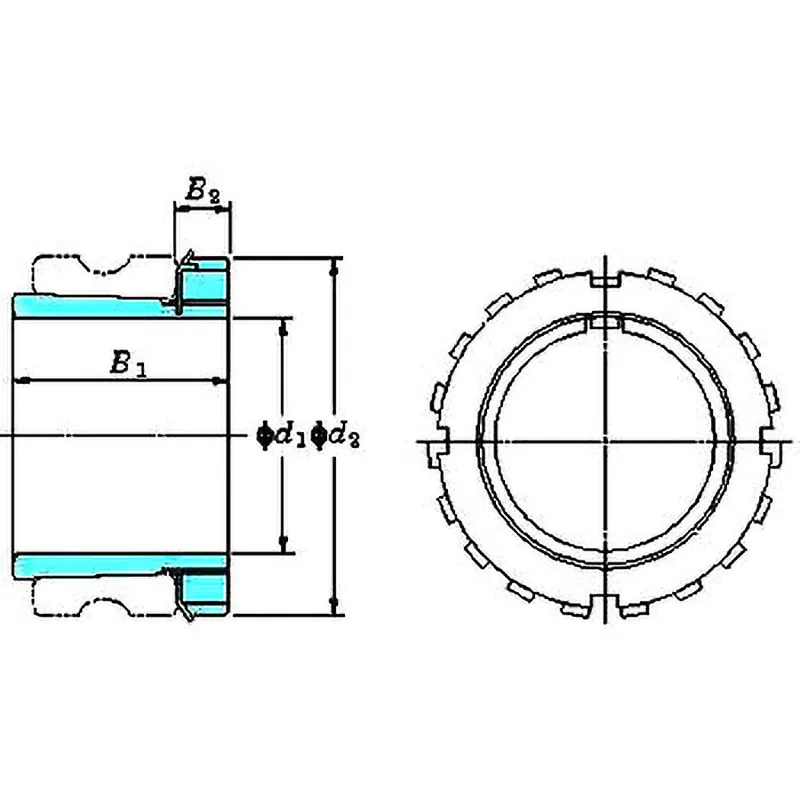

Dimensions B1 (mm): 46
Dimensions B2 (mm): 10
Dimensions d2 (mm): 58
Axle hole diameter d1 (mm): 35
Usage: Fixing the shaft
Type: Adapter
Type H
Compatible: Sleeve A2308X
RoHS Directive (10 substances compliant): Compliant
Compatible: Bearing UK208, UKP208, UKF208, UKF308, UKX08
Used nut: AN08
Used washer: AW08X

Manufacturer

Washers, sleeves, and lock nuts can be individually replaced.
