Description
Quantity: 1 piece

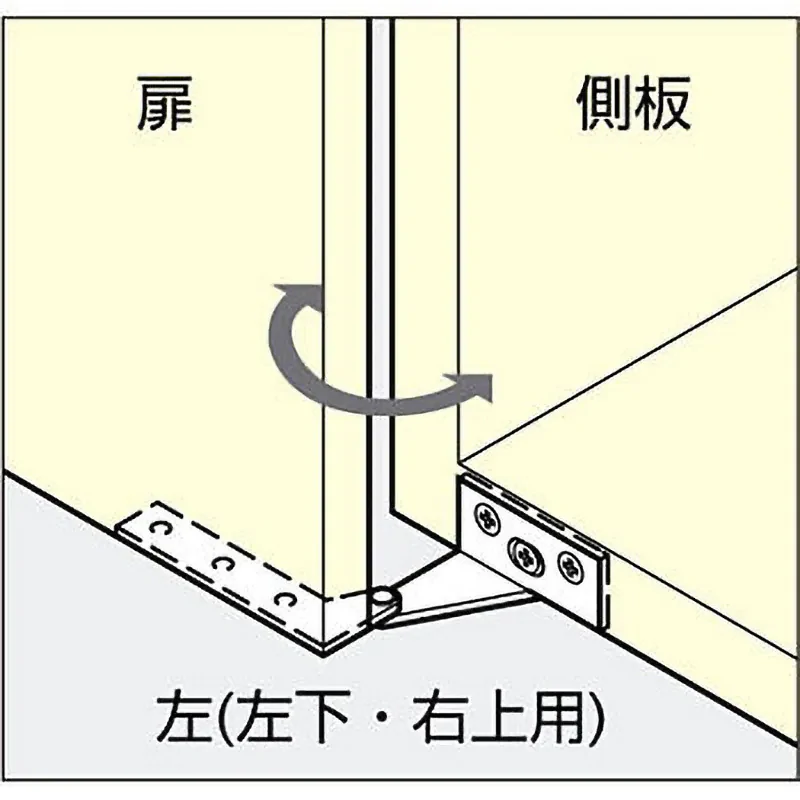

Specification: Left (for lower left and upper right)
Part Number: PL-60L
Material: Stainless Steel (SUS430)
Application: For overlay doors
Specification: Left (for lower left and upper right)
Weight (g): 27
Type: Pivot Hinge
Finish: Raw
Applicable Door Height (mm): 700 or less
Main Body Length (mm): 20
Leaf Thickness (mm): 2
Recommended Door Thickness (mm): 22
RoHS Directive (10 substances compliant): Compliant
Applicable Door Width (mm): 450 or less
Applicable Door Weight (kg): 2.6 or less
Maximum Door Height (mm): 700
Maximum Door Width (mm): 450

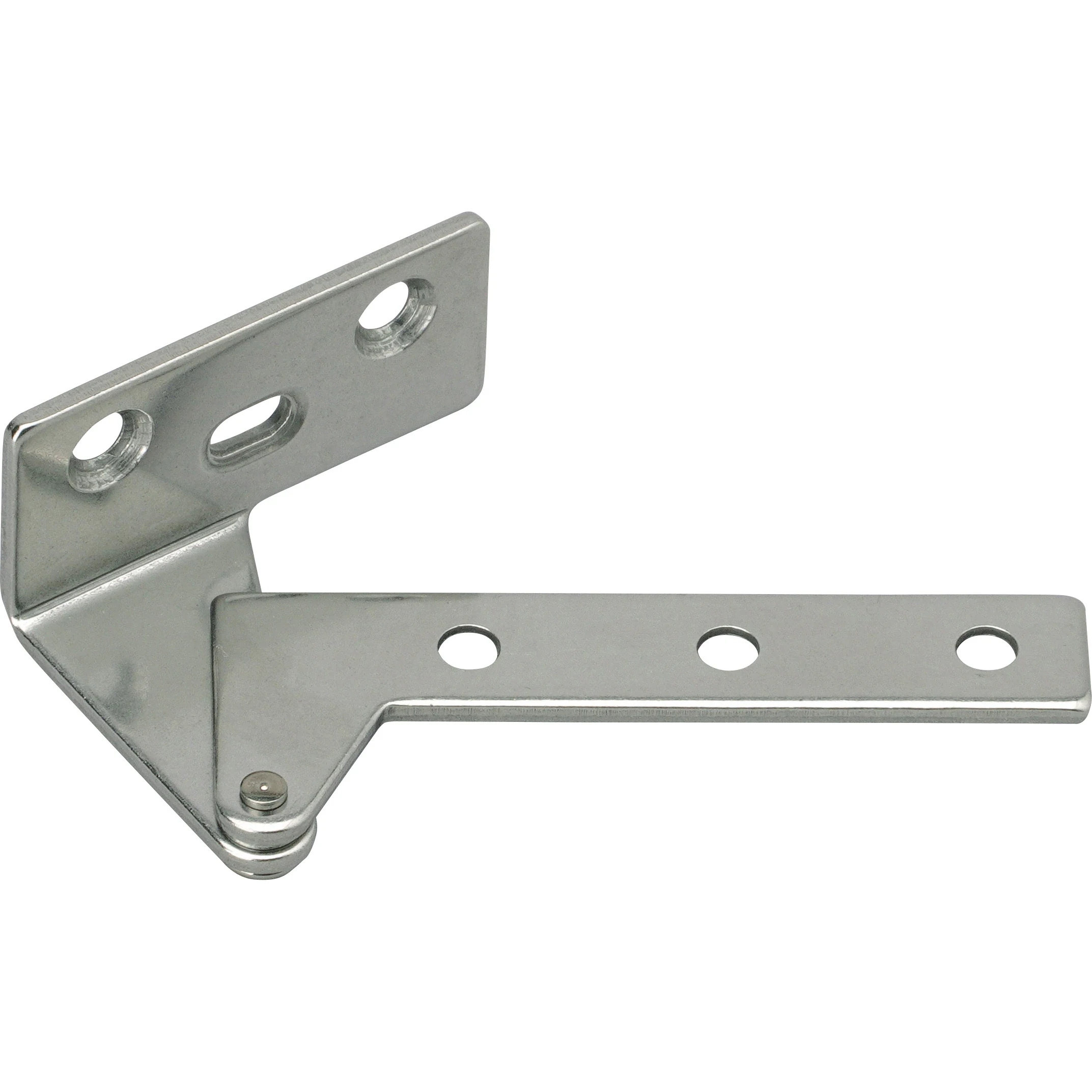

This is a Stainless Steel Pivot Hinge for overlay doors.
