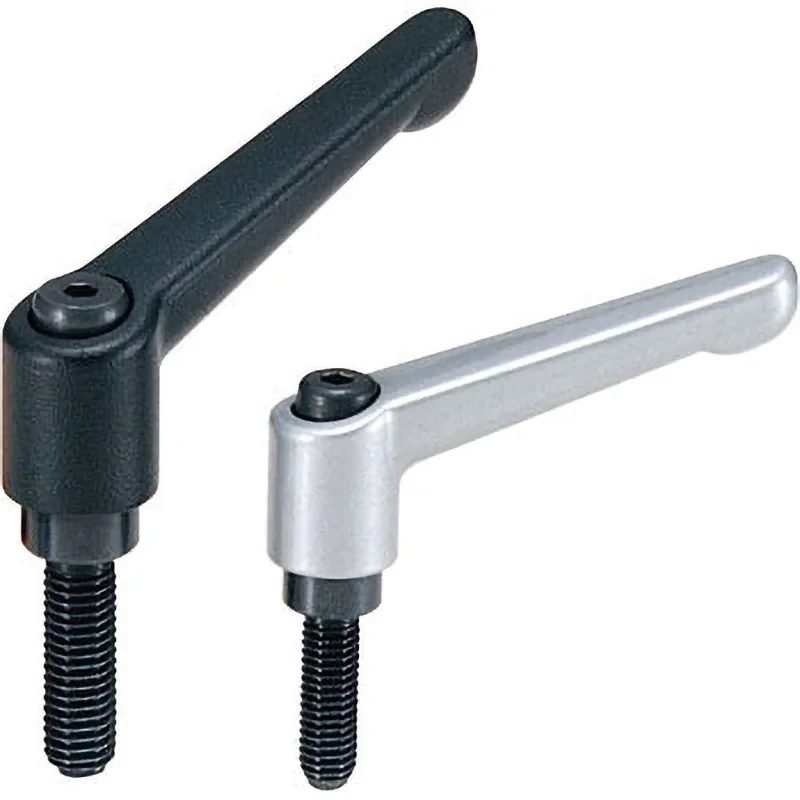

GEO.PRINCE TAKESHITA Clamp Lever LDM-4-12-BK

¥851

SKU: r22102454d45f Category:

Description

Content: 1 piece
Mounting hole Diameter (mm): M4
Mounting length (mm): 12
Part number: LDM-4-12-BK

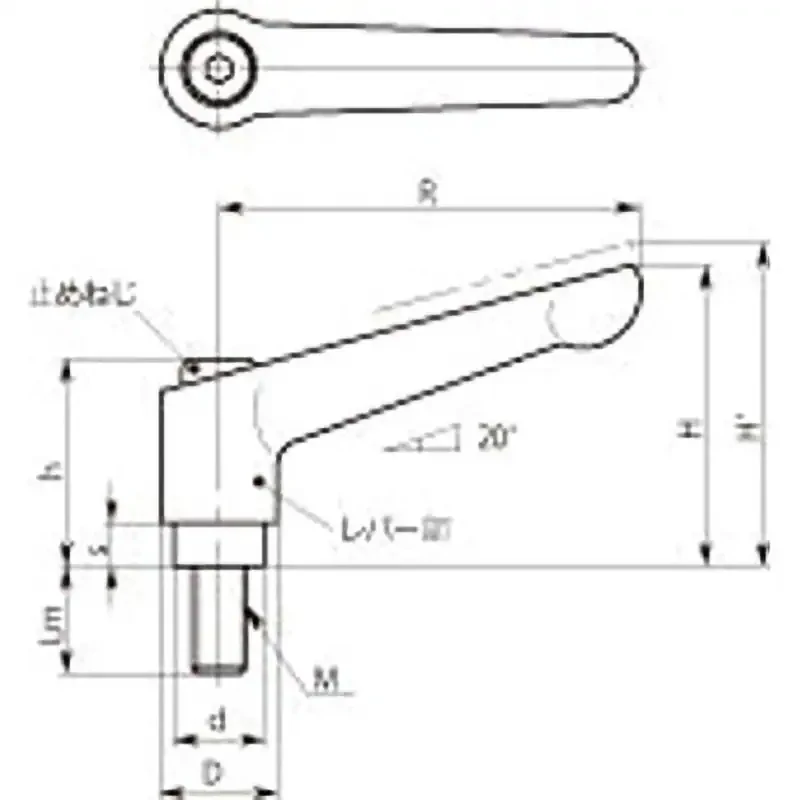

Dimension D (mm): 13
Dimension H’ (mm): 37.5
Dimension H (mm): 34
Dimension Lm (mm): 12
Dimension R (mm): 45
Dimension d (mm): 10
Dimension h (mm): 24.5
Dimension s (mm): 4
Type: Clamp Lever
Shape: L-shaped
Mounting part: Male Thread
Mounting hole Diameter (mm): M4
Mounting length (mm): 12
Turning radius (mm): 45
Material (main body): Zinc Die Casting
Number of teeth: 18
Material (screw part): SUM22L
Surface treatment (lever part): Electrostatic Coating
Maximum load (N): 29
Maximum tightening force (kN): 2.4
Lever color: Matte Black
Material (spring): Stainless Steel Wire or SWPB
As a mechanical assembly component
As a replacement part for existing machinery
