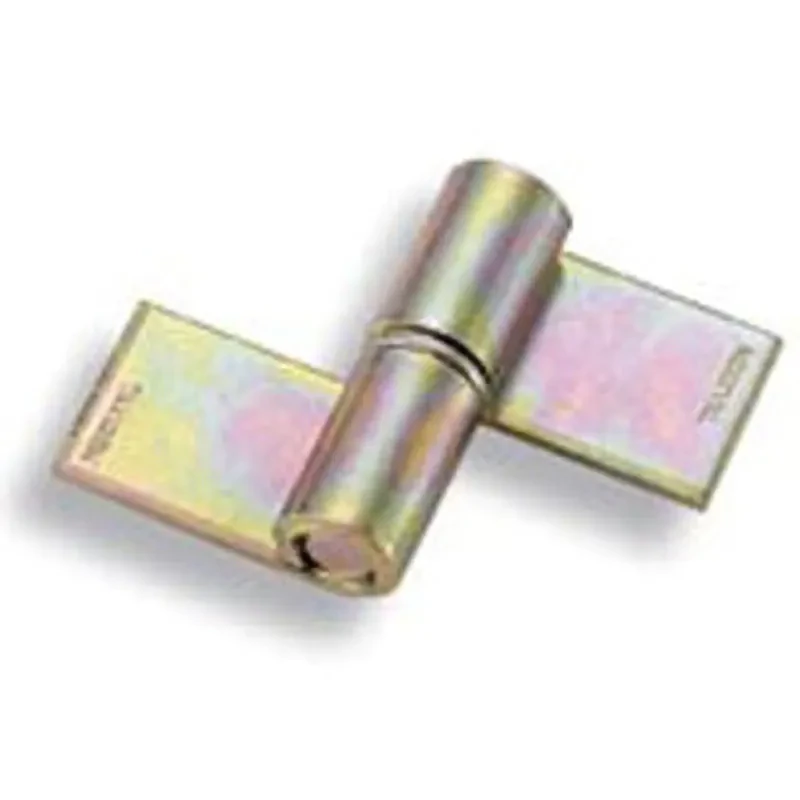

Description
Quantity: 1 piece
Part Number: B-3-1

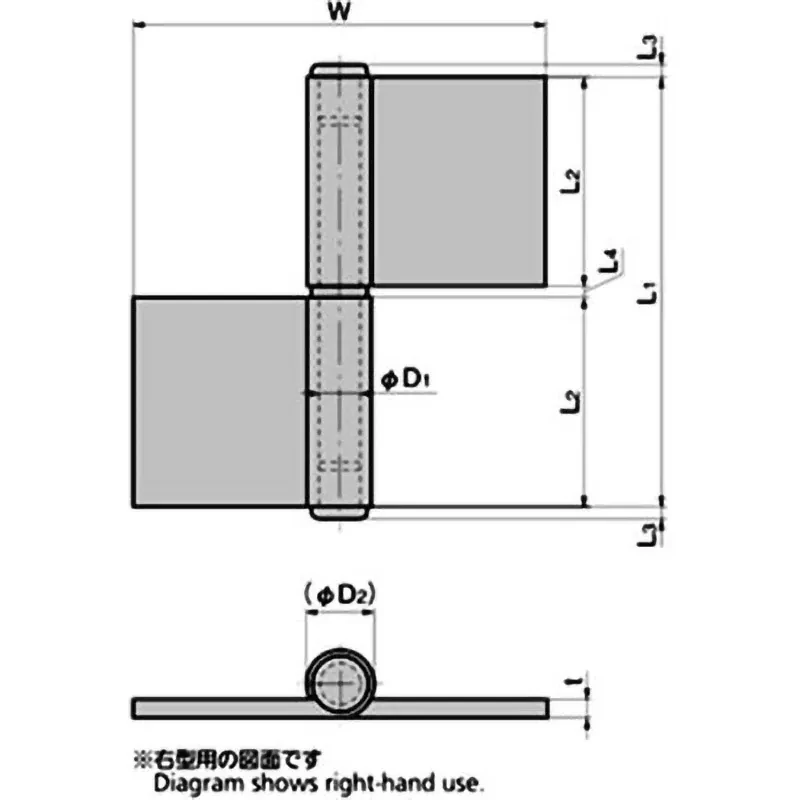

Dimension D1 (mm): 11
Dimension D2 (mm): 21
Dimension L1 (mm): 151
Dimension L2 (mm): 74
Dimension L4 (mm): 3
Dimension W (mm): 116
Dimension t (mm): 4.5
Material: Hot-rolled steel sheet (SPHC)
Application: Distribution board, control panel, cubicle, machine tool, entrance door
Weight (kg): 75 (vertical two-position specification: refer to door)
Weight (g): 630
Surface finish: Zinc-plated chromate treatment (MFZn-C)
Takigen code: 10013
Universal type (left and right compatible)
