Description

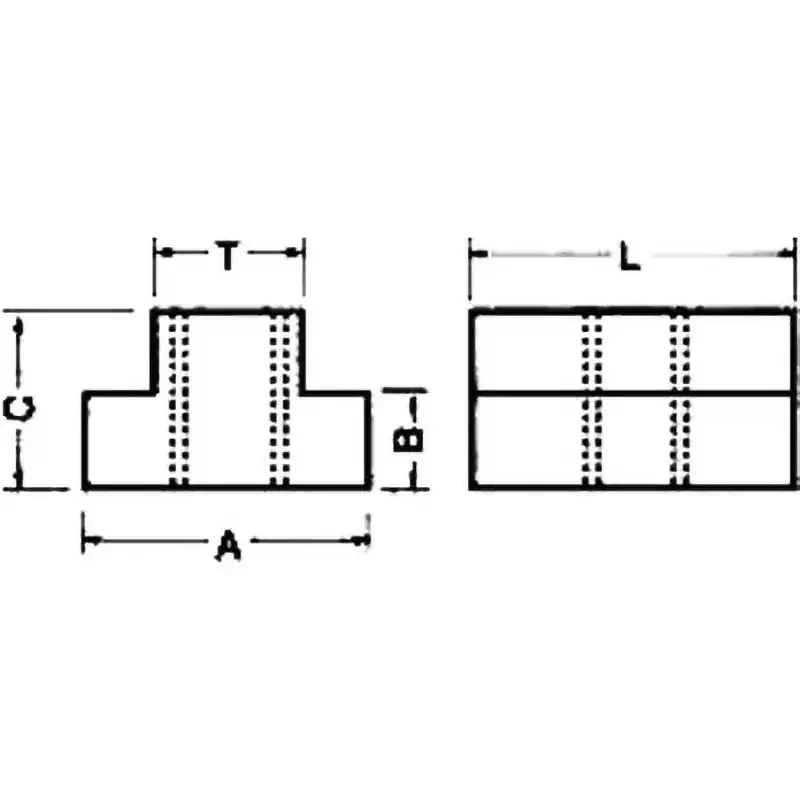

Dimensions A (mm): 22
Dimensions B (mm): 8
Dimensions C (mm): 16
Dimensions H (mm): 16
Dimensions L (mm): 26
Dimensions T (mm): 14
Screw diameter: M12*1.75
TRUSCO Part No. 108-6804
Material: S45C
Weight (g): 45
Pitch: Coarse
Finish: Black Oxide
Heat-Treated Quenching
The bolt is crimped to prevent it from protruding and damaging the machine table.
