Description
Material: Aluminum Alloy (ADC)

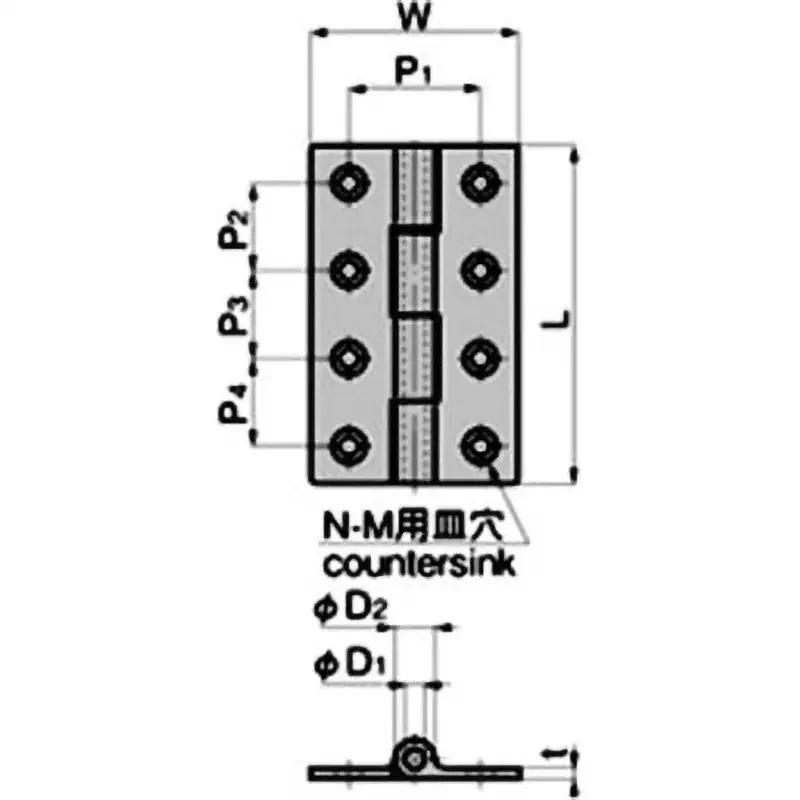

Dimension D1 (mm): 5
Dimension D2 (mm): 10
Dimension L (mm): 75
Dimension N (mm): 6
Dimension P1 (mm): 30
Dimension P2 (mm): 27
Dimension P3 (mm): 27
Dimension W (mm): 50
Dimension t (mm): 3
Application: Communication Equipment, Measuring Instruments
Mass (kg): 20 (Reference door when using 2 vertically)
Mass (g): 48
Number of Mounting Holes: 3
Surface Finish: Silver Frosted Coating
Dimension M: M4
Takigen Code: 11445
It is lightweight due to the aluminum alloy.
Stainless Steel shaft is used.
