Description
Quantity: 1 piece
Coil Rated Voltage (V): AC200
Compatible Motor Capacity (200-240V) (kW): Three-Phase Squirrel-Cage Motor (AC-3 Class): 2.2
Compatible Motor Capacity (380-440V) (kW): Three-Phase Squirrel-Cage Motor (AC-3 Class): 2.7
Compatible Motor Capacity (500-550V) (kW): Three-Phase Squirrel-Cage Motor (AC-3 Class): 2.7
Compatible Motor Capacity (200-220V) (kW): Three-Phase Squirrel-Cage Motor (AC-3 Class): 2.2

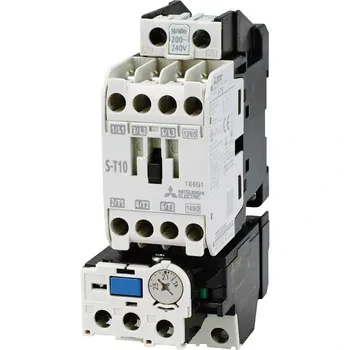

Model Number: MSO-T10 0.4KW 200V AC200V
Motor Capacity (kW): 0.4
Auxiliary Contact: 1a
Frame: T10
Compatible Thermal Relay: 2-element thermal relay included, (Model Name): TH-T18
Heater Call (A): 2.1
Heat Element Rated Setting Range (A): 1.7-2.5
Coil Rated Voltage (V): AC200
Type: Open Type
Category: Electromagnetic Contactor
Operating Method: Non-Reversible
Main Circuit Voltage (V): 200
Specifications: Terminal Specifications: Standard Specifications, Operating Coil Input: Continuous/7VA, Instantaneous Input/45VA
Trusco Product Number: 777-7868
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.36
Mounting Method: IEC 35mm Rail, Screw
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated Insulation Voltage (V): 690
Rated Operating Current (A): Three-Phase Squirrel-Cage Motor (AC-3 Class): (200-220V) 11 / (380-440V) 7 / (500-550V) 6, Resistive Load (AC-1 Class) (200-240V) 20 / (380-440V) 11
Mechanical Durability: 10 million cycles
Electrical Durability: AC-3 Class: 2 million cycles, AC-4 Class: 30,000 cycles, AC-1 Class: 500,000 cycles
Rated Impulse Withstand Voltage (kV): 6
Pollution Degree (Operating Environment): 3
Switching Frequency (times/hour): AC-3 Class: 1800, AC-4 Class: 300, AC-1 Class: 1200
Open Heat Current (A): 20
Operating Method: Operating Coil, Operating Circuit: Standard Specifications
