Description
Material: Aluminum alloy (ADC)

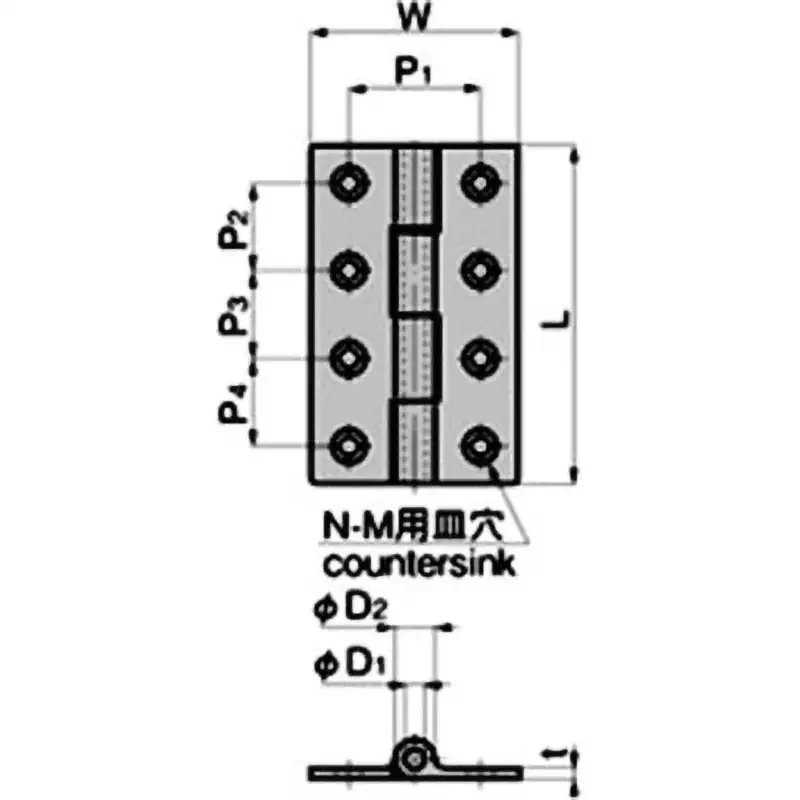

Dimension D1 (mm): 4
Dimension D2 (mm): 8
Dimension L (mm): 50
Dimension N (mm): 4
Dimension P1 (mm): 22
Dimension P2 (mm): 34
Dimension W (mm): 35
Dimension t (mm): 2.5
Application: Communication equipment, measurement equipment
Mass (kg): 10 (reference for double vertical usage)
Mass (g): 18
Number of mounting holes: 2
Surface finish: Silver matte coating
Dimension M: M3
Takigen code: 11443

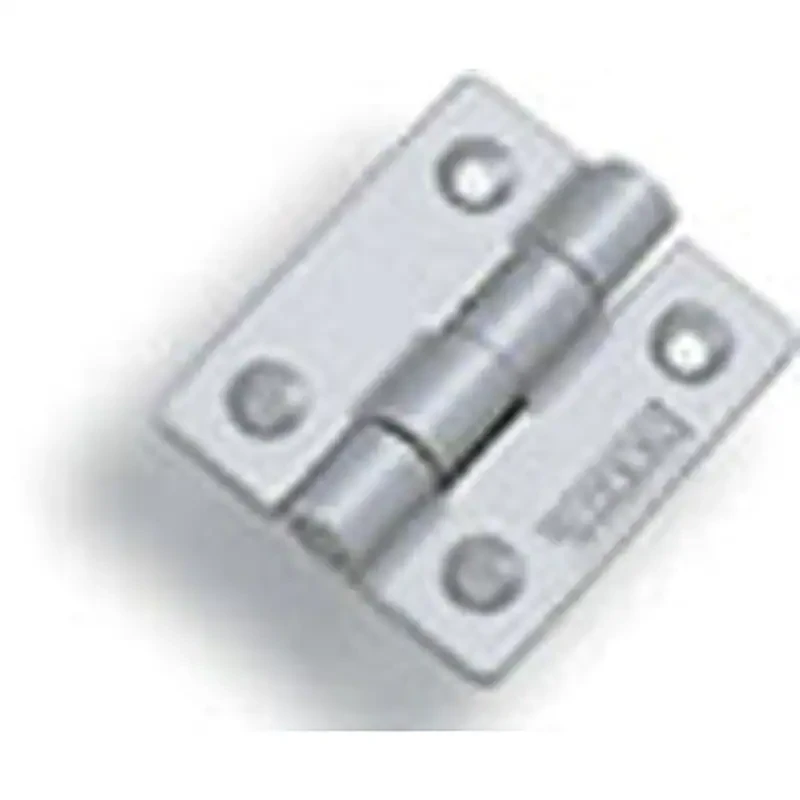

Since it is made of aluminum alloy, it is lightweight.
Stainless Steel shaft is used.
