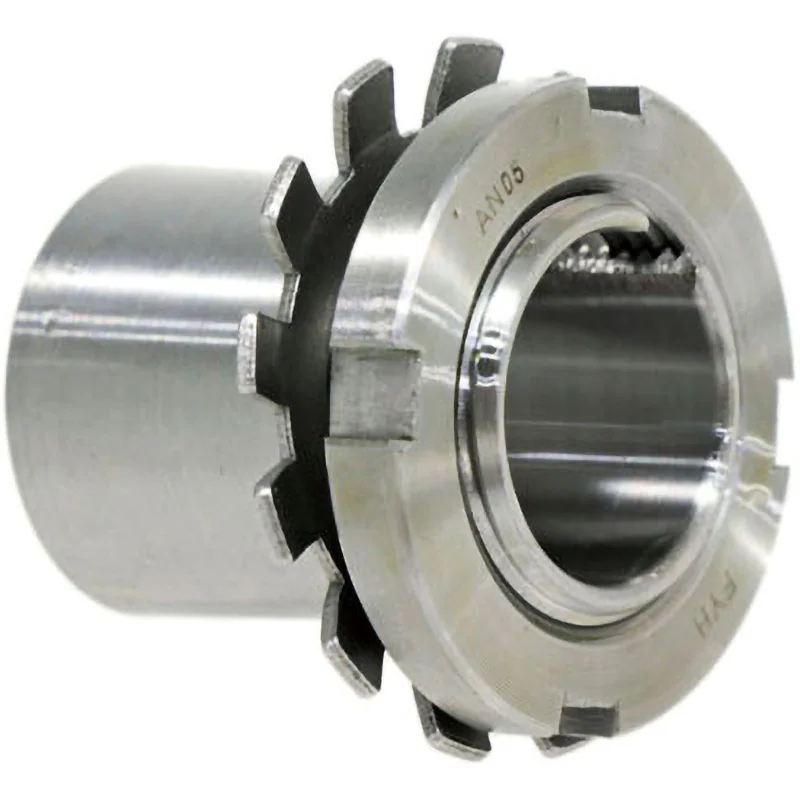

Description

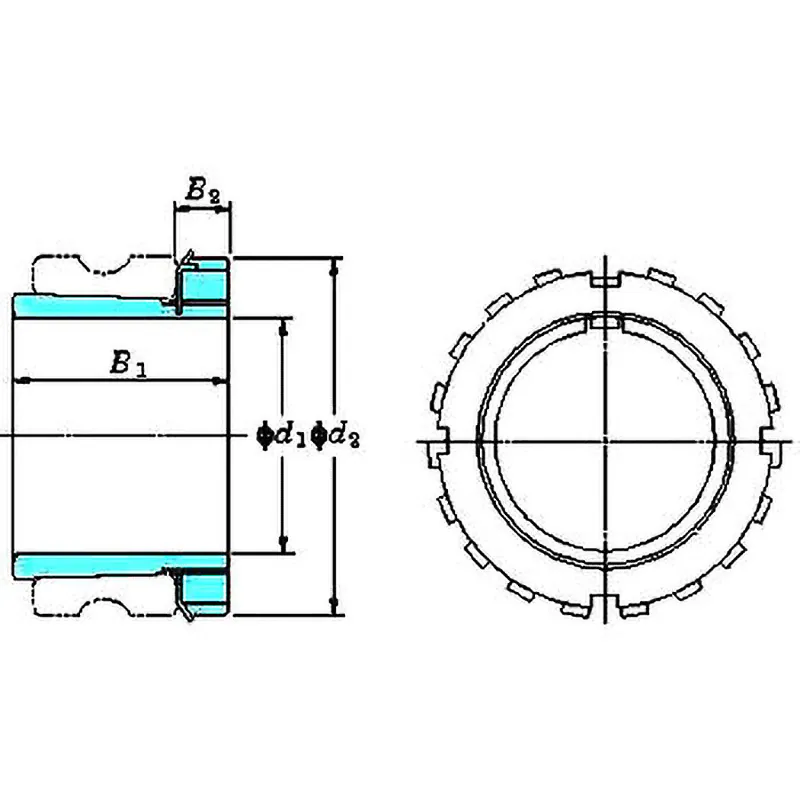

Dimensions B1 (mm): 35
Dimensions B2 (mm): 8
Dimensions d2 (mm): 38
Axis hole diameter d1 (mm): 20
Usage: To fix the shaft
Type: Adapter
Type H
Compatible: Sleeve A2305X
RoHS Directive (10 substances compliance): Compliant
Compatible: Bearing UK205, UKP205, UKF205
Used nut: AN05
Used washer: AW05X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
