Description
Description: Quantity: 1 piece
Notch count: 2
Contact configuration: 2a
Notch angle (degrees): 90

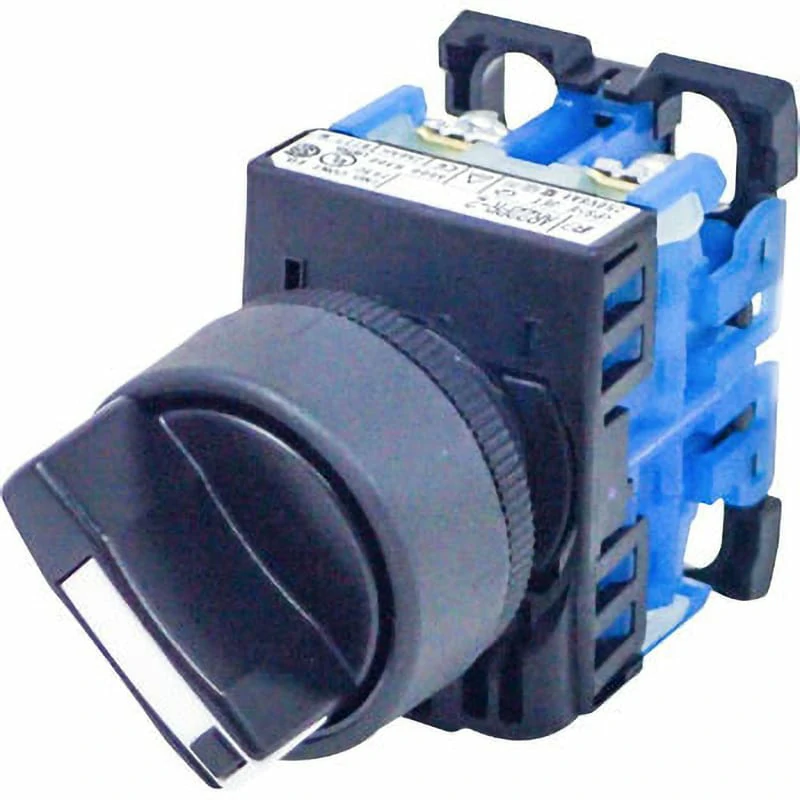

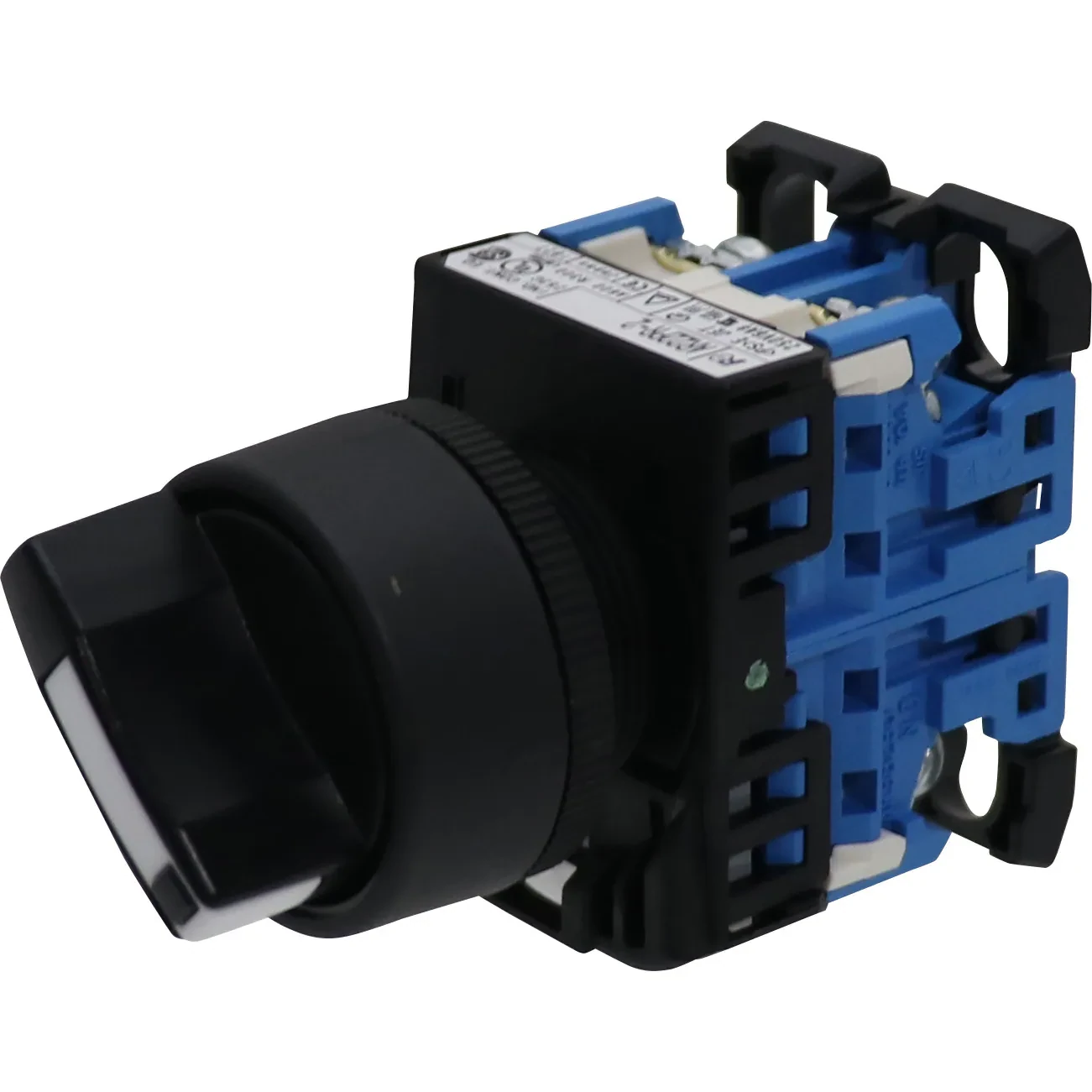

Product number: AR22PR-220B
Protection structure: Operating part: IP65 (oil-resistant)
Contact configuration: 2a
Frame: Round frame
Notch angle (degrees): 90
Notch count: 2
Mounting dimensions (mm): Diameter 22.3 Diameter 25.5 common
Mounting hole diameter (Diameter mm): 22
Rated operating current (A): AC-15 (Coil load): 24V/6, 110V/6, 220V/6, 440V/2.5 DC-13 (Coil load): 24V/4, 110V/1.3, 220V/0.45 DC-12 (resistive load): 24V/6, 110V/2.5, 220V/1
Reset method: Manual
Operating part shape: Knob type
Mechanical durability: Over 1 million times
Type: Standard type
Kind: Selector
Insulation voltage: Between charging part and ground, between different polarity charging parts: AC2500V for 1 minute
Rated insulation voltage (V): AC/DC600
Rated frequency (Hz): 50/60
Terminal screw: M3.5 plus and minus dual-purpose screw with square washer (self-up type)
Storage temperature (Celsius degrees): -40 to 80
Insulation resistance (Megaohm): Between charging part and ground, between different polarity charging parts: 100 or more (measured with DC500V megger)
Operating ambient temperature (Celsius degrees): -20 to 70 (however, no freezing or condensation)
Electrical durability: Over 500,000 times (at AC220V 6A): Over 1 million times (at AC220V 3A)
Short-circuit protection device: Fuse 15A
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Vibration resonance test: Complex amplitude 0.1mm frequency: 10闂?5Hz, steady vibration endurance test: Complex amplitude 3.0mm frequency: 16.7Hz
Rated current (A): 10
Switching frequency (times/hour): 1200 (usage rate 40%)
Material (ring) (round): Made of resin
Color (knob): Black
Conditional short-circuit current (A): 1000
Relative humidity (%RH): Inside the panel: 45闂?5 (-5闂?0 Celsius degrees) (however, no freezing or condensation)
Shock resistance (malfunction) (m/s2): 100
Shock resistance (durability) (m/s2): 500
Special闂傚倷娴囬褎顨ラ幖浣瑰€舵慨妯挎硾绾捐法鈧娲栧ú锕€鐣烽崣澶岀闁糕剝蓱鐏忣厼霉?
Pre-tightening structure
Contact transformer unit addition and replacement also one-touch
Improved work efficiency with 2-direction wiring
Short body depth dimension
Terminal part IP2X compliant products also available
Excellent contact reliability
Certified for overseas standards with standard products
Buzzer also available
