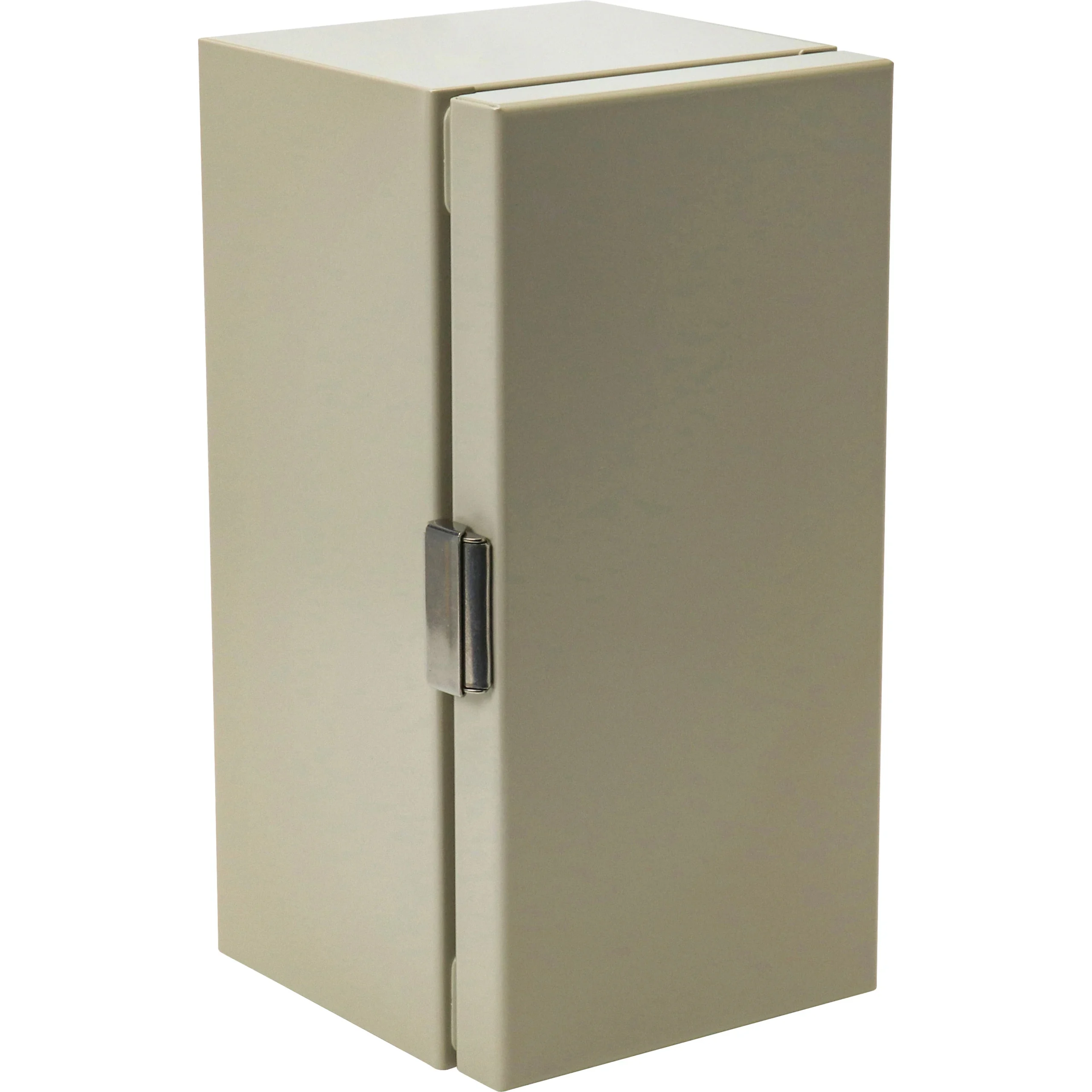

Description

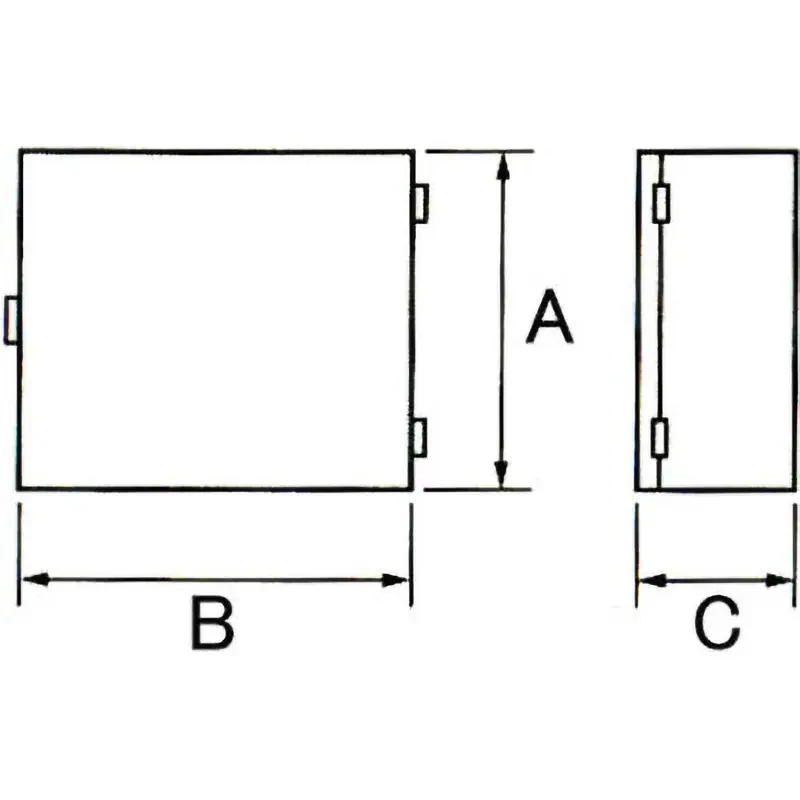

Dimensions (Height A * Width B * Depth C) (mm): 300 * 150 * 160
Effective Depth (mm): 143

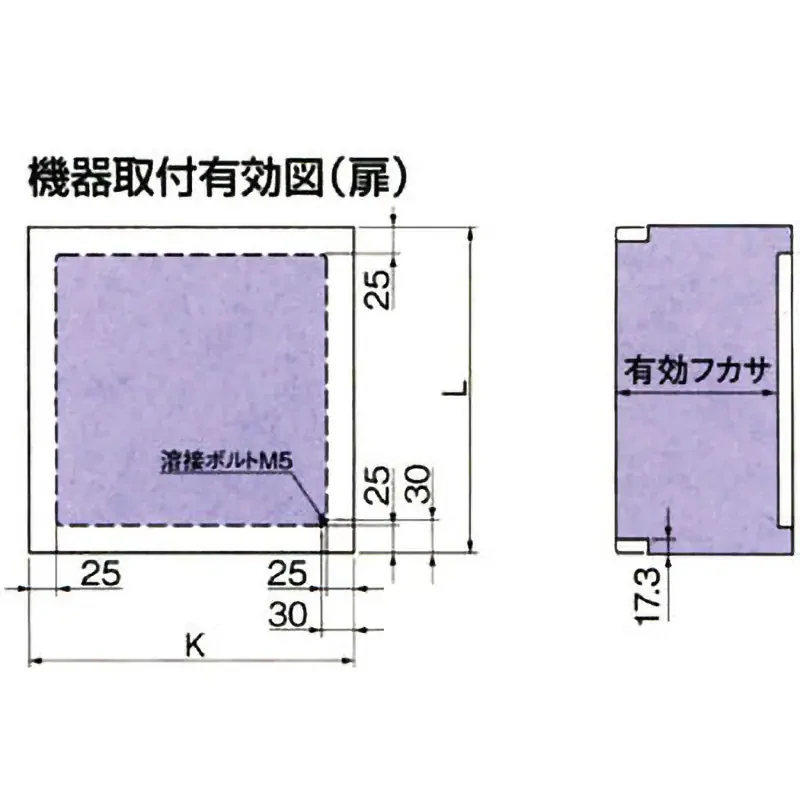

Plate Dimensions (Height * Width) (mm): 250 * 100
Protection Level: IP4X
Weight (kg): 3.3
Color: Light Beige
Specifications: With Gasket
Dimension L (mm): 297
Panel Thickness (mm) (Door): 1.6 / (Body): 1.2
Handle Snap Latch (Made of Stainless Steel)
Dimension K (mm): 148
Coating Color: Light Beige Paint (5Y7/1)
Door Opening Method: Single Opening
Installation Location: Indoor
Coating: Powder Coating
Material (Plate): Made of Iron
Material (Box): Iron
RoHS Directive (10 Substances Compliance): Compliant
The adoption of a catch allows for smooth door opening and closing!
The grounding terminal uses brass screws.
The fixing of the iron plate adopts a nut holder type with minimal screw protrusion.
