Description
Description
Quantity: 1 piece
Coil Rated Voltage (V): AC200
Suitable Motor Capacity (200闂?40V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.2
Suitable Motor Capacity (380闂?40V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.7
Suitable Motor Capacity (500闂?50V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.7
Suitable Motor Capacity (200闂?20V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.2

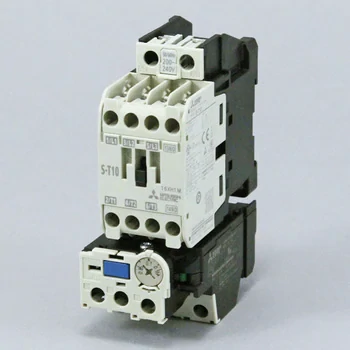

Product Number: MSO-T10 0.1KW 200V AC200V
Motor Capacity (kW): 0.1
Auxiliary Contacts: 1a
Frame: T10
Compatible Thermal Relay: 2-element Thermal Relay included, Model Name: TH-T18
Heater Call (A): 0.7
Heat Element Rated Setting Range (A): 0.55闂?.85
Coil Rated Voltage (V): AC200
Type: Open Type
Kind: Electromagnetic Contactor
Operation Mode: Non-reversible
Main Circuit Voltage (V): 200
Specifications: Terminal Part Specification: Standard, Operating Coil Input: Continuous/7VA, Inrush Instantaneous/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Mass (kg): 0.36
Mounting Method: IEC 35mm Rail, Screw
Model Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated Insulation Voltage (V): 690
Rated Operating Current (A): Three-phase Cage Motor (AC-3 Grade): (200闂?20V) 11 / (380闂?40V) 7 / (500闂?50V) 6, Resistive Load (AC-1 Grade): (200闂?40V) 20 / (380闂?40V) 11
Mechanical Durability: 10 million cycles
Electrical Durability: AC-3 Grade: 2 million cycles, AC-4 Grade: 30,000 cycles, AC-1 Grade: 500,000 cycles
Rated Impulse Voltage (kV): 6
Pollution Degree (Operating Environment): 3
Switching Frequency (cycles/hour): AC-3 Grade: 1800, AC-4 Grade: 300, AC-1 Grade: 1200
Open Heat Current (A): 20
Operation Mode: Operation Coil, Operation Circuit: Standard Specification
Suitable Motor Capacity (200闂?40V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.2
Suitable Motor Capacity (380闂?40V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.7
Suitable Motor Capacity (500闂?50V) (kW): Three-phase Cage Motor (AC-3 Grade): 2.7
