Description
Description
Quantity: 1 piece
Notch count: 2
Contact arrangement: 1a
Notch angle (degrees): 90

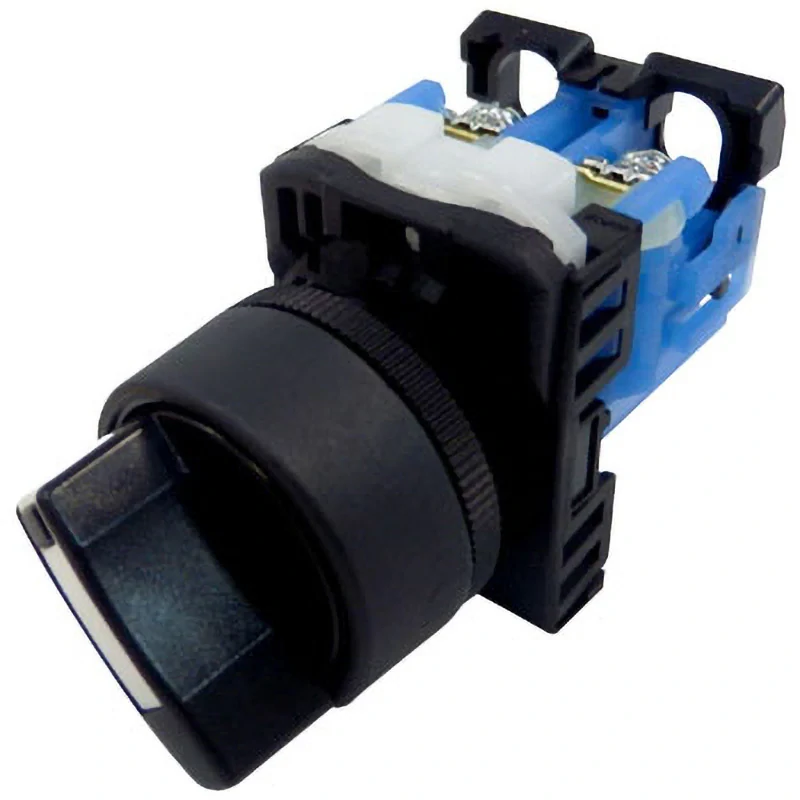

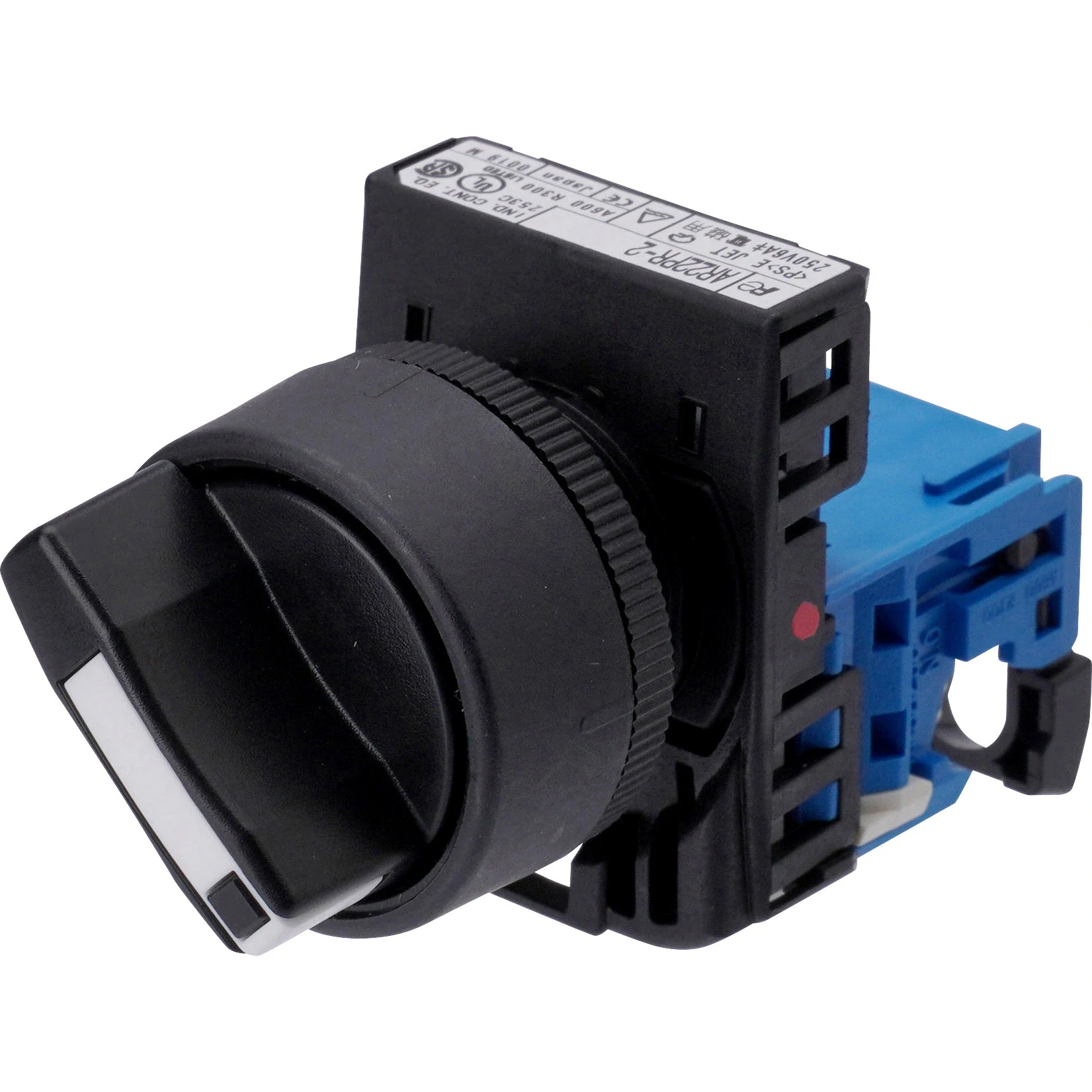

Part number: AR22PR-210B
Protection structure: Operating part: IP65 (oil-resistant)
Contact arrangement: 1a
Frame: Round frame
Notch angle (degrees): 90
Notch count: 2

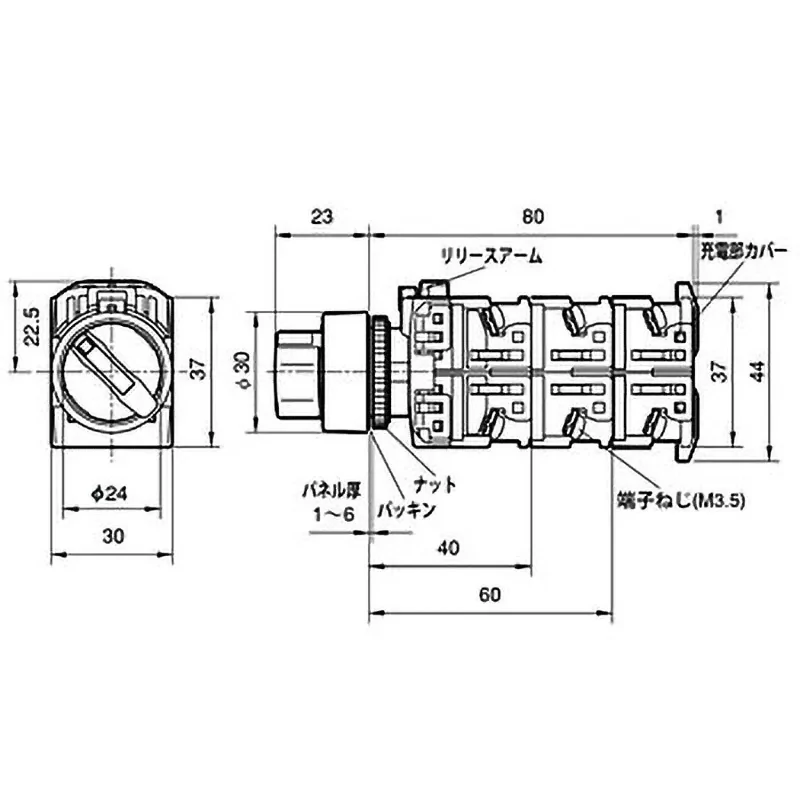

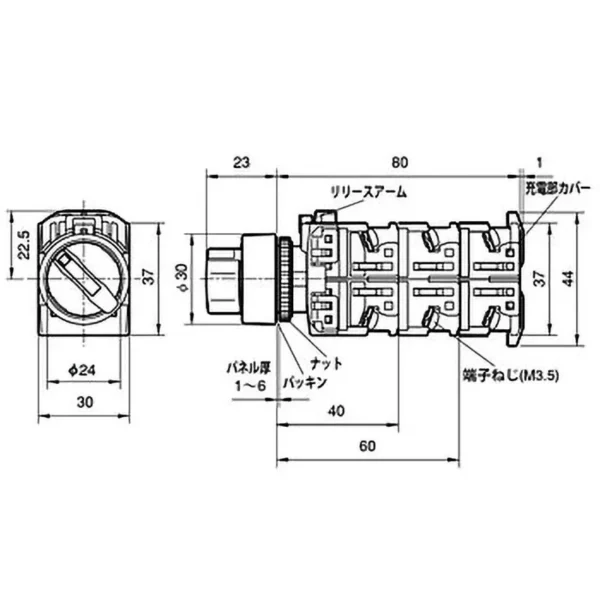

Mounting dimensions (mm): Diameter 22.3 Diameter 25.5 shared
Mounting hole diameter (Diameter mm): 22
Rated operating current (A): AC-15 (Coil load): 24V/6, 110V/6, 220V/6, 440V/2.5 DC-13 (Coil load): 24V/4, 110V/1.3, 220V/0.45 DC-12 (resistive load): 24V/6, 110V/2.5, 220V/1
Return method: Manual
Operating part shape: Knob type
Mechanical durability: Over 1 million times
Type: Standard type
Category: Selector
Dielectric strength: Between live part and ground, between different poles: AC2500V for 1 minute
Rated insulation voltage (V): AC/DC600
Rated frequency (Hz): 50/60
Terminal screw: M3.5 with square washer, cross-recessed screw (self-tapping type)
Storage temperature (Celsius degrees): -40 to 80
Insulation resistance (Megaohm): Between live part and ground, between different poles: Over 100 (measured with DC500V megger)
Operating ambient temperature (Celsius degrees): -20 to 70 (provided that there is no freezing or condensation)
Electrical durability: Over 500,000 times (at AC220V 6A): Over 1 million times (at AC220V 3A)
Short-circuit protection device: Fuse 15A
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Vibration resonance test: Complex amplitude 0.1mm, frequency: 10闂?5Hz; Steady-state vibration durability test: Complex amplitude 3.0mm, frequency: 16.7Hz
Rated continuous current (A): 10
Switching frequency (times/hour): 1200 (operating ratio 40%)
Material (ring) (round): Made of resin
Color (knob): Black
Conditional short-circuit current (A): 1000
Relative humidity (%RH): Inside the panel: 45闂?5 (-5 to 40 Celsius degrees) (provided that there is no freezing or condensation)
Shock resistance (malfunction) (m/s2): 100
Shock resistance (durability) (m/s2): 500
Specialized product-
Pre-tightening structure
Contact transformer unit can be added or replaced with one touch
Improved work efficiency with 2-direction wiring
