Description
Content: 1 piece
Mounting Hole Diameter (mm): M3
Mounting Length (mm): 16
Part Number: LDM-3-16-SG

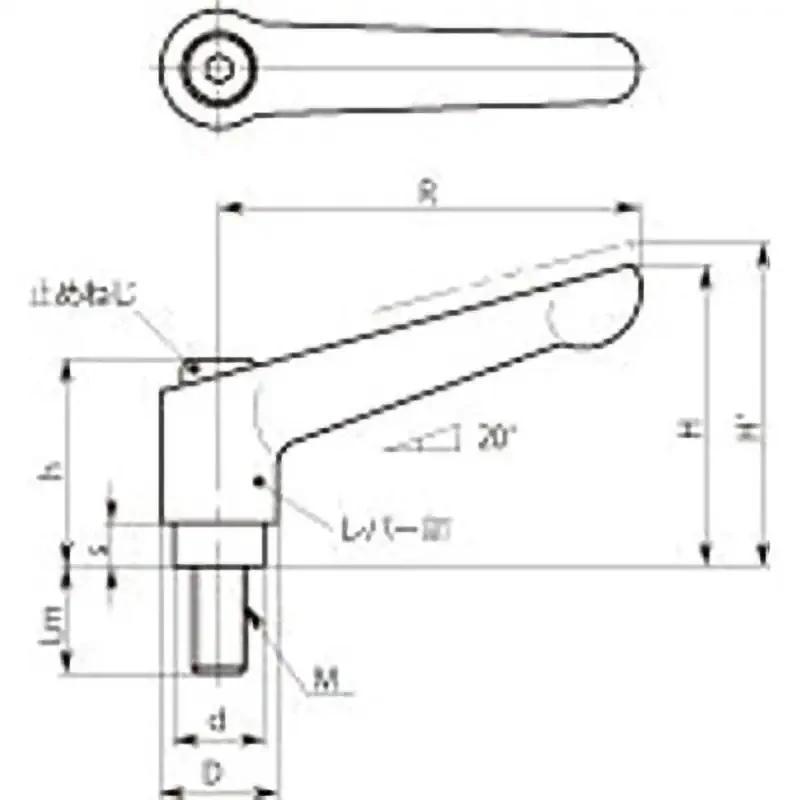

Dimension D (mm): 13
Dimension H’ (mm): 38.5
Dimension H (mm): 35
Dimension Lm (mm): 16
Dimension R (mm): 45
Dimension d (mm): 10
Dimension h (mm): 24.5
Dimension s (mm): 4

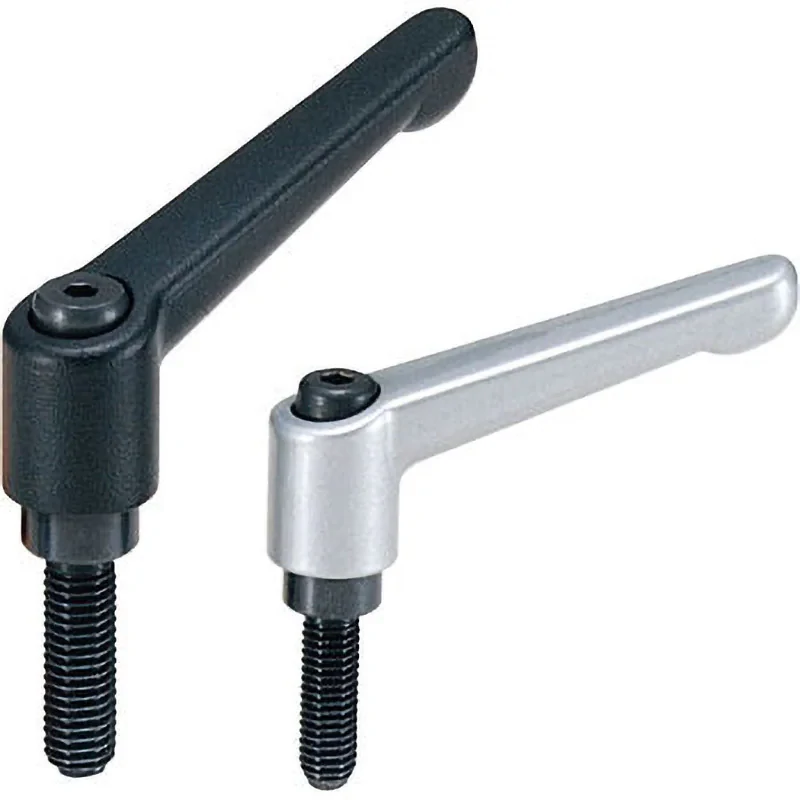

Type: Clamp Lever
Shape: L-shaped
Mounting Part: Male Thread
Mounting Hole Diameter (mm): M3
Mounting Length (mm): 16
Turning Radius (mm): 45
Material (Main Body): Zinc Die Cast
Number of Teeth: 18
Material (Thread Part): SUM22L
Surface Treatment (Lever Part): Electrostatic Coating
Maximum Load (N): 13
Maximum Tightening Force (kN): 1.4
Lever Color: Matte Silver
Material (Spring): Stainless Steel Wire or SWPB
As a mechanical assembly component
As a replacement part for existing machinery
