Description
Capacity: 1 piece

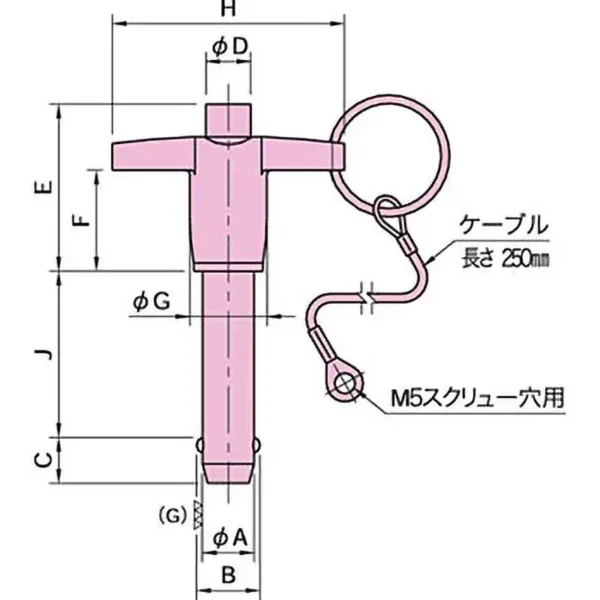

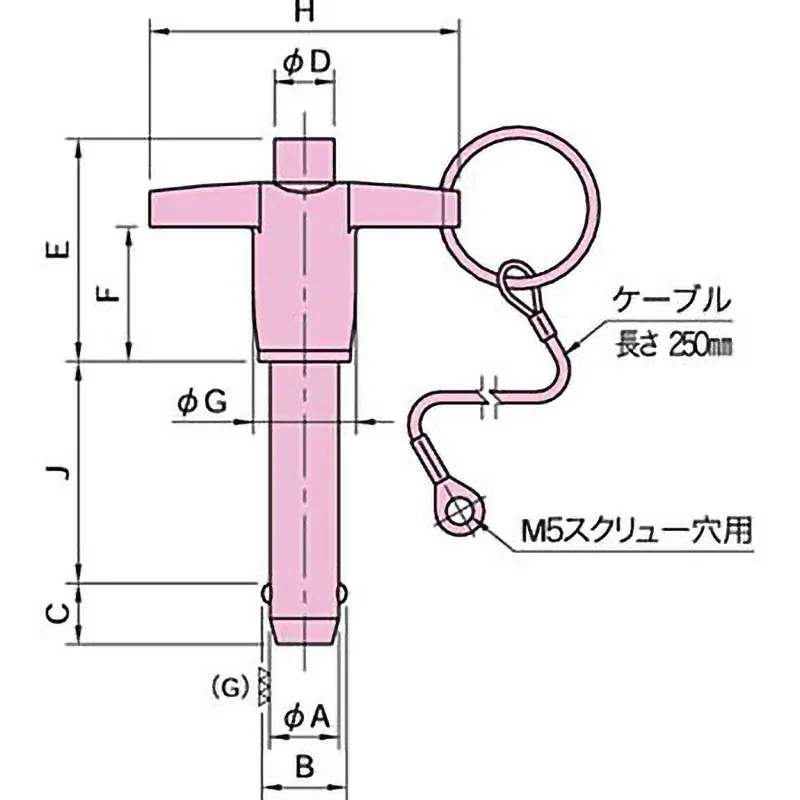

Dimensions H(mm): 74
Part Number: BJ773-16060-SUS
Weight (g): 190
Dimensions H(mm): 74
Dimensions A(mm): 16(-0.02/-0.10)
Dimensions F(mm): 26
Dimensions D(mm): 14.5
Dimensions E(mm): 43
Dimensions B(mm): 19(plus or minus 0.3)
Dimensions C(mm): 14(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 60(+0.50)
Dimensions G(mm): 21.8
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passivation) Coating, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Shear Force (kN): 257
Recommended Hole Inner Diameter (mm): 16(-0.02/-0.10)

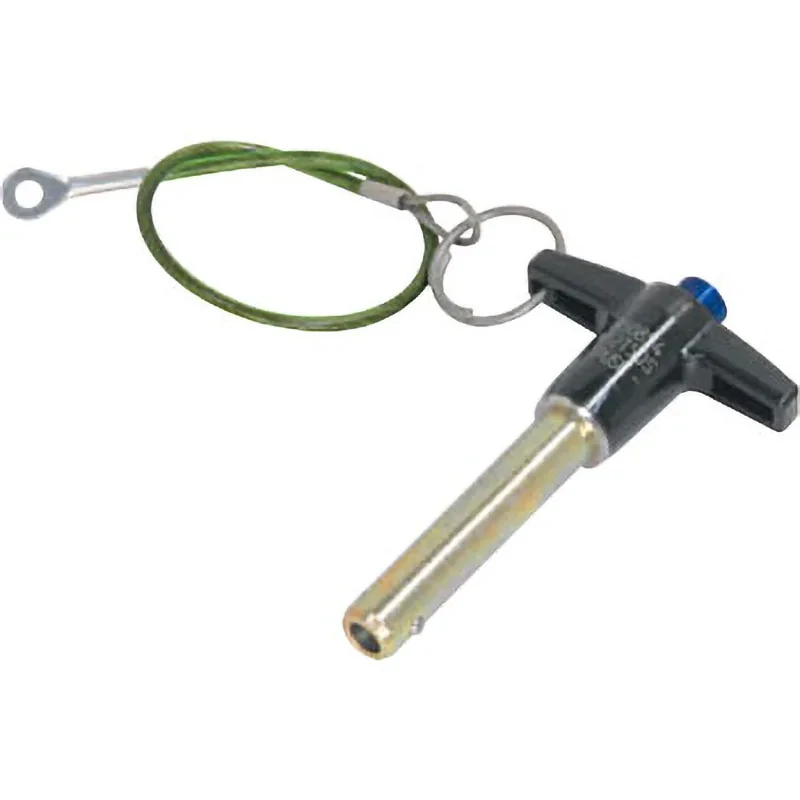

Enables quick one-touch operation for securely fastening and separating workpieces and parts that are frequently joined.
