Description

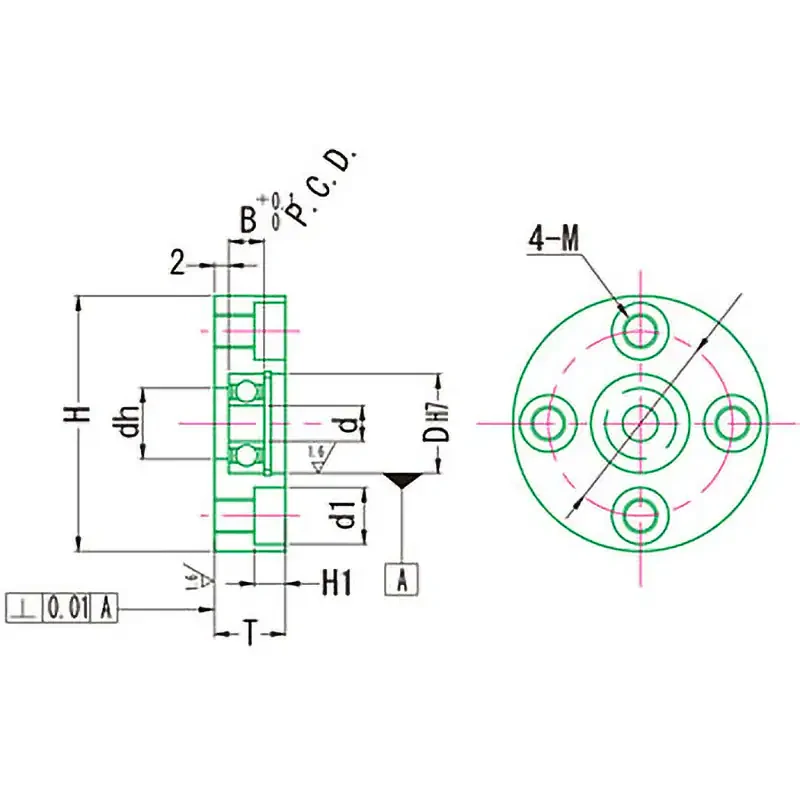

Dimension D (mm): (H7) Tolerance: 28+0.021
Dimension DH (mm): 24
Dimension H: 1 (mm): 4.4
Dimension P.C.D. (mm): 42
Dimension D (mm): 12
Material: (H) Lead-Free Electroless Nickel Plated, (B) Bearing Steel
Weight (g): 172
Dimension T: 13
Dimension B: 8
Dimension H: 52
Dimension D: 18
Dimension M (Bottom Hole): M5*P0.8 (4.3)
