Description
Capacity: 1 piece

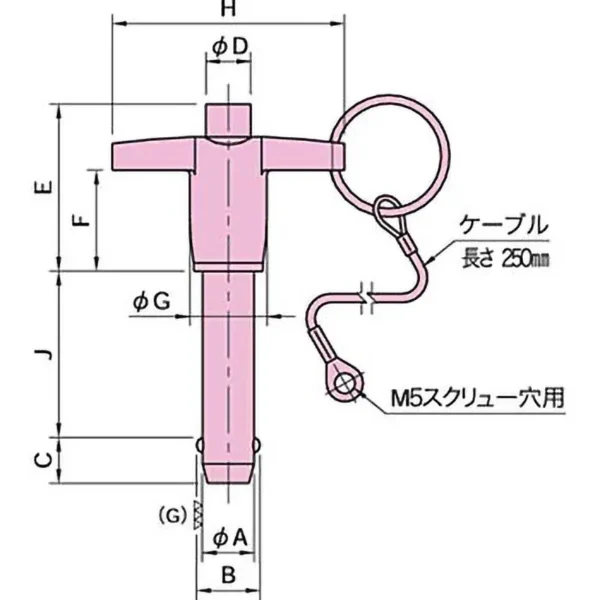

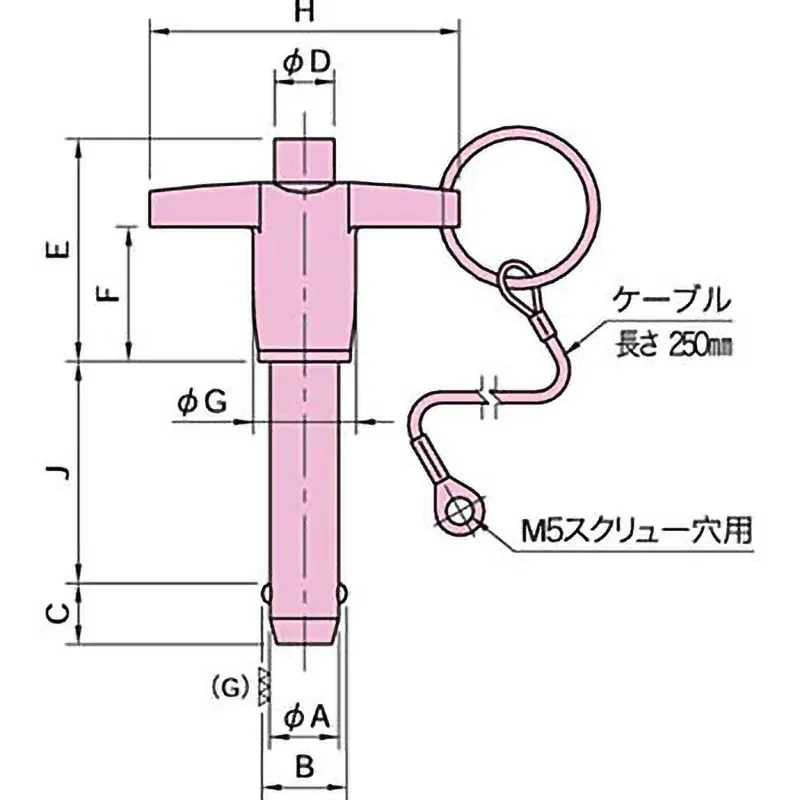

Dimensions H(mm): 51
Part Number: BJ773-12080-SUS
Weight (g): 124
Dimensions H(mm): 51
Dimensions A(mm): 12(-0.02/-0.10)
Dimensions F(mm): 24
Dimensions D(mm): 11.1
Dimensions E(mm): 37
Dimensions B(mm): 14.5(plus or minus 0.3)
Dimensions C(mm): 10(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 80(+0.50)
Dimensions G(mm): 14.4
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (passivation) coating, polishing finish
Surface Treatment: (Handle) Anodized surface treatment
Minimum Shear Force (kN): 144
Recommended Hole Inner Diameter (mm): 12(-0.02/-0.10)

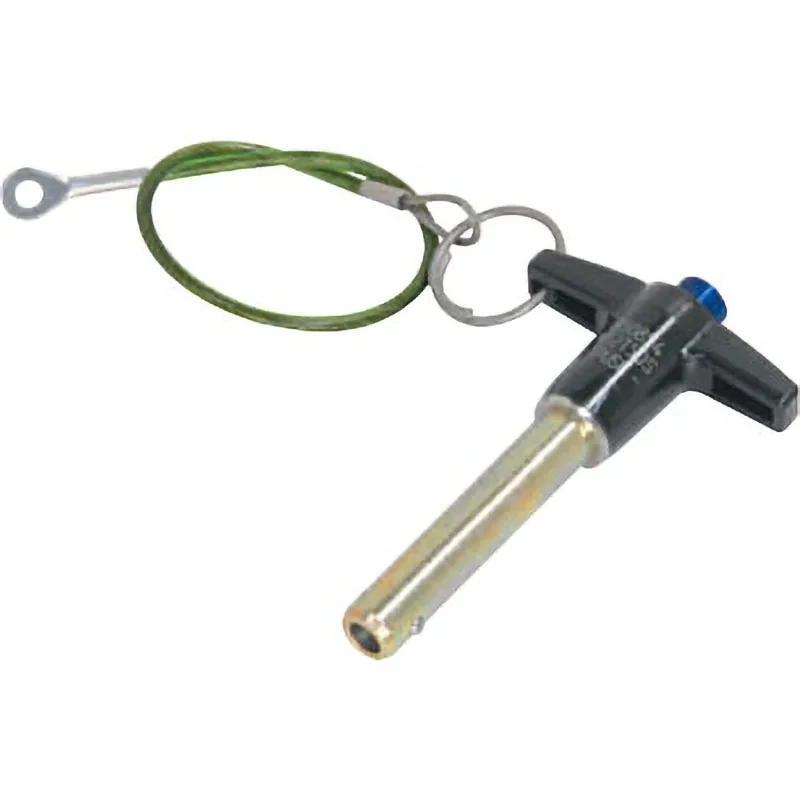

Allows for quick one-touch operation to fully secure and separate workpieces and parts that are frequently joined together.
