Description

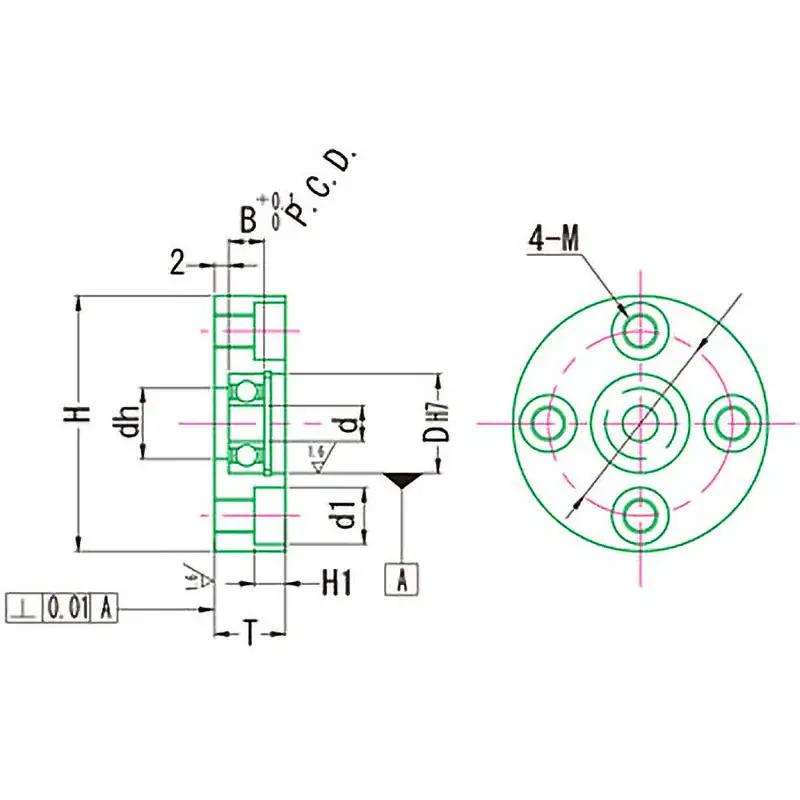

Dimension D (mm): (H7) Tolerance: 22+0.021
Dimension DH (mm): 18
Dimension H (mm): 4.4
Dimension P.C.D. (mm): 35
Dimension D (mm): 8
Material: (H)/ Lead-Free Electroless Nickel Plating, (B)/ Bearing Steel
Weight (g): 122
Dimension T: 12
Dimension B: 7
Dimension H: 45
Dimension D: 18
Dimension M (Lower Hole): M5*P0.8 (4.3)
