Description

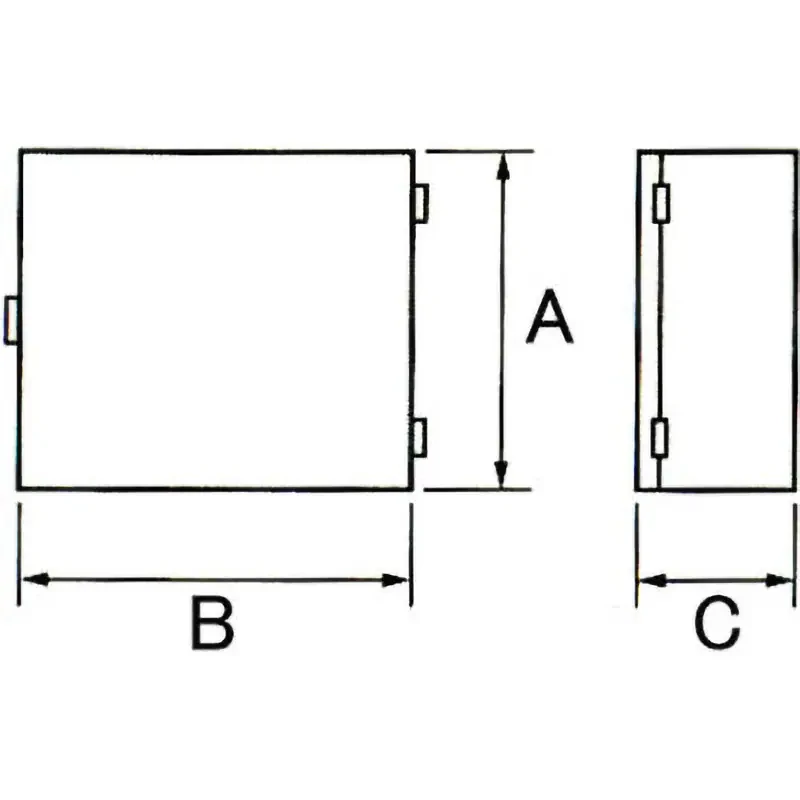

Dimensions (Height A * Width B * Depth C) (mm): 400 * 400 * 120
Effective Depth (mm): 103
Base Dimensions (Height * Width) (mm): 350 * 350
Protection Level: IP4X
Weight (kg): 7.8
Color: Light Beige
Specifications: With Gasket

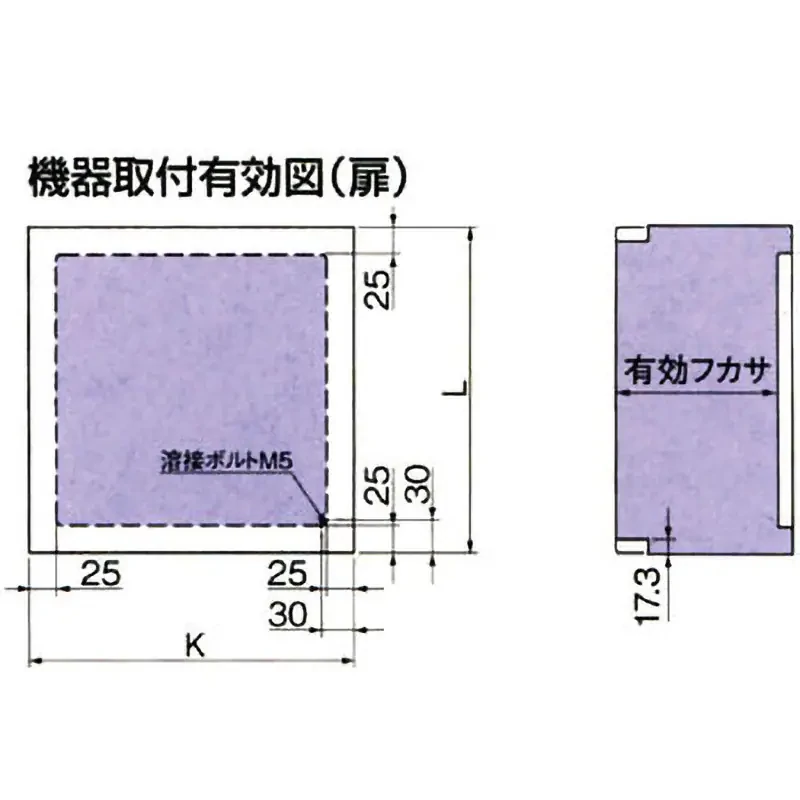

Dimension L (mm): 397
Plate Thickness (mm) (Door): 1.6 / (Body): 1.2
Handle Snap Latch (Stainless Steel)
Dimension K (mm): 398
Paint Color: Light Beige Paint (5Y7/1)
Door Opening Method: Single Opening
Installation Location: Indoor
Coating: Powder Coating
Material (Base): Made of Iron
Material (Box): Iron
RoHS Directive (10 Substances Compliance): Compliant
With the adoption of a catch, the door opens and closes smoothly!
The grounding terminal uses brass screws.
The fixing of the iron base adopts a nut holder type that minimizes screw protrusion.
