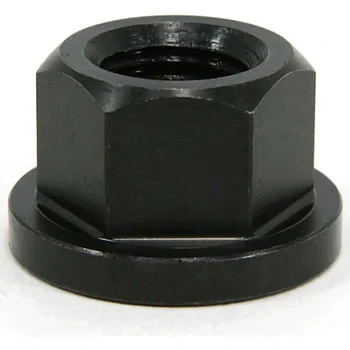

Description
Compatible bolt diameter: M16*2.0
Two-face width (mm): 24
Flange diameter D (mm): 33
Height (mm): 20
Weight (g): 81
Usage: For all types of tightening.
TRUSCO Part No. 398-7035
Material: S45C
Dimension D (mm): 20
Dimension E (mm): 5
Dimension C (mm): 24
Finish: Black Oxide
Hardness HRC: 25 to 30
Dimension B (mm): 33
Heat-Treated Quenching
Thread diameter: AM16
No washer is needed. Tightening can be done easily.
