Description
Description: Quantity: 1 piece
Number of notches: 2
Contact configuration: 1b
Notch angle (degrees): 60

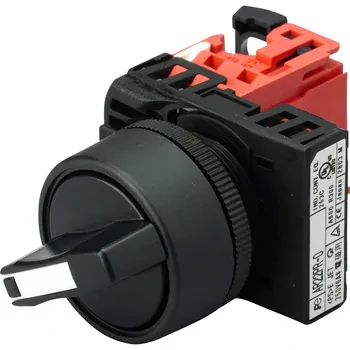

Part number: AR22PR-001B
Protection structure: Operating part: IP65 (oil-resistant type)
Contact configuration: 1b
Frame: Round frame
Notch angle (degrees): 60
Number of notches: 2
Mounting dimensions (mm): Diameter 22.3 Diameter 25.5 compatible
Mounting hole diameter (Diameter mm): 22
Rated operating current (A): AC-15 (Coil load): 24V/6, 110V/6, 220V/6, 440V/2.5 DC-13 (Coil load): 24V/4, 110V/1.3, 220V/0.45 DC-12 (Resistive load): 24V/6, 110V/2.5, 220V/1
Reset method: Automatic (Left 闂?Right)
Operating part shape: Knob type
Mechanical durability: Over 200,000 cycles
Type: Standard type
Category: Selector
Dielectric strength: Between live parts and earth, between opposite live parts: AC 2500V for 1 minute
Rated insulation voltage (V): AC/DC 600
Rated frequency (Hz): 50/60
Terminal screw: M3.5 screw with square washer, compatible with plus and minus screws (self-up type)
Storage temperature (Celsius degrees): -40 to 80
Insulation resistance (Megaohm): Between live parts and earth, between opposite live parts: 100 or more (measured with DC 500V megger)
Operating ambient temperature (Celsius degrees): -20 to 70 (provided no freezing or condensation)
Electrical durability: Over 500,000 cycles (at AC 220V 6A); Over 1,000,000 cycles (at AC 220V 3A)
Short-circuit protection device: Fuse 15A
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Vibration resonance test: Double amplitude 0.1mm, frequency: 10 to 55Hz; Fixed vibration endurance test: Double amplitude 3.0mm, frequency: 16.7Hz
Rated continuous current (A): 10
Switching frequency (operations/hour): 1200 (duty cycle 40%)
Material (ring) (round): Resin
Color (knob): Black
Conditional short-circuit current (A): 1000
Relative humidity (%RH): Inside panel: 45 to 85 (at -5 to 40 Celsius degrees) (provided no freezing or condensation)
Shock resistance (malfunction) (m/s2): 100
Shock resistance (endurance) (m/s2): 500
Special custom products –
Front tightening structure
Contact transformer unit addition and replacement are one-touch
Increased work efficiency with two-way wiring
Short body depth dimension
Terminal part IP2X compliant products also available
Excellent contact reliability
Standard product with overseas standard certification
Buzzer also available
