Description

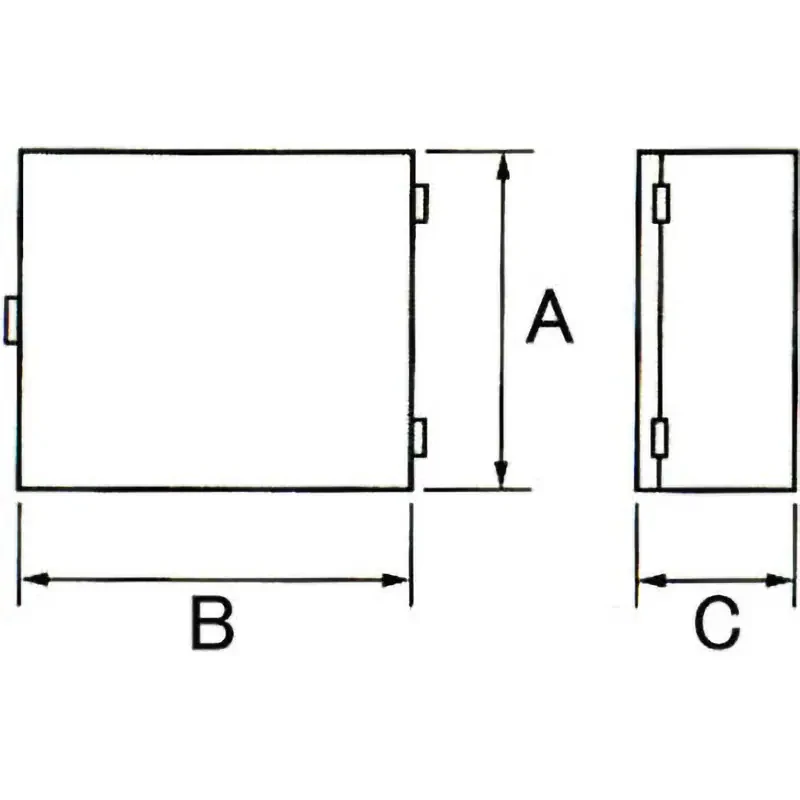

Dimensions (Height A * Width B * Depth C) (mm): 300 * 400 * 120

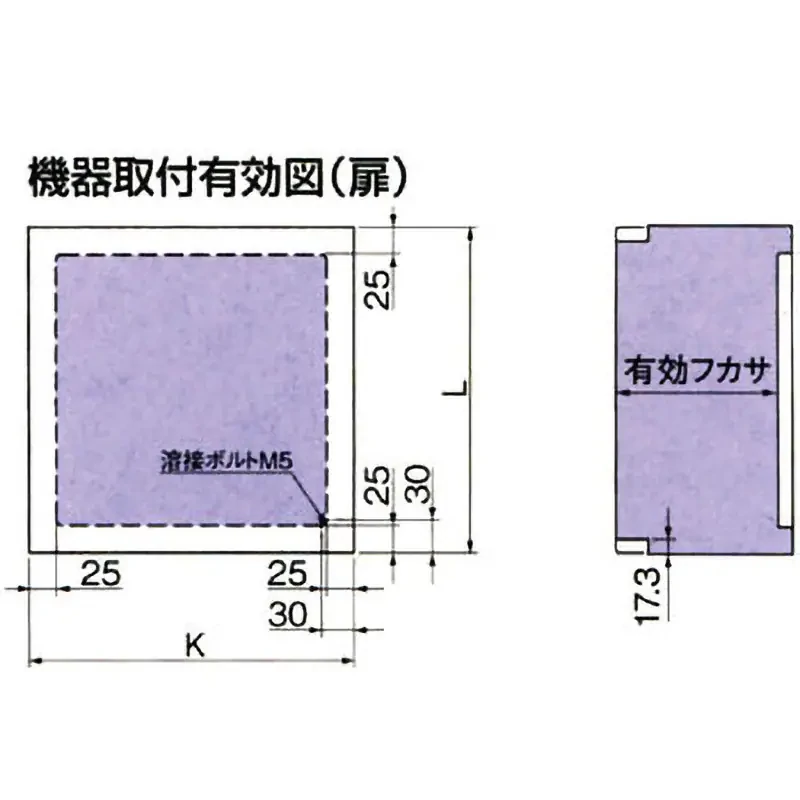

Effective Depth (mm): 103
Base Plate Dimensions (Height * Width) (mm): 250 * 350
Protection Level: IP4X
Weight (kg): 6.2
Color: Light Beige
Specifications: With Packing
Dimension L (mm): 297
Plate Thickness (mm) (Door): 1.6 / (Body): 1.2
Handle Snap Latch (Stainless Steel)
Dimension K (mm): 398
Paint Color: Light Beige Paint (5Y7/1)
Door Opening Method: Single Opening
Installation Location: Indoor
Coating: Powder Coating
Material (Base Plate): Made of Steel
Material (Box): Steel
RoHS Directive (10 Substances Compliance): Compliant
The adoption of a catch enables smooth opening and closing of the door!
The grounding terminal uses a brass screw.
The fixing of the steel base plate adopts a low-protrusion nut holder type.
