Description

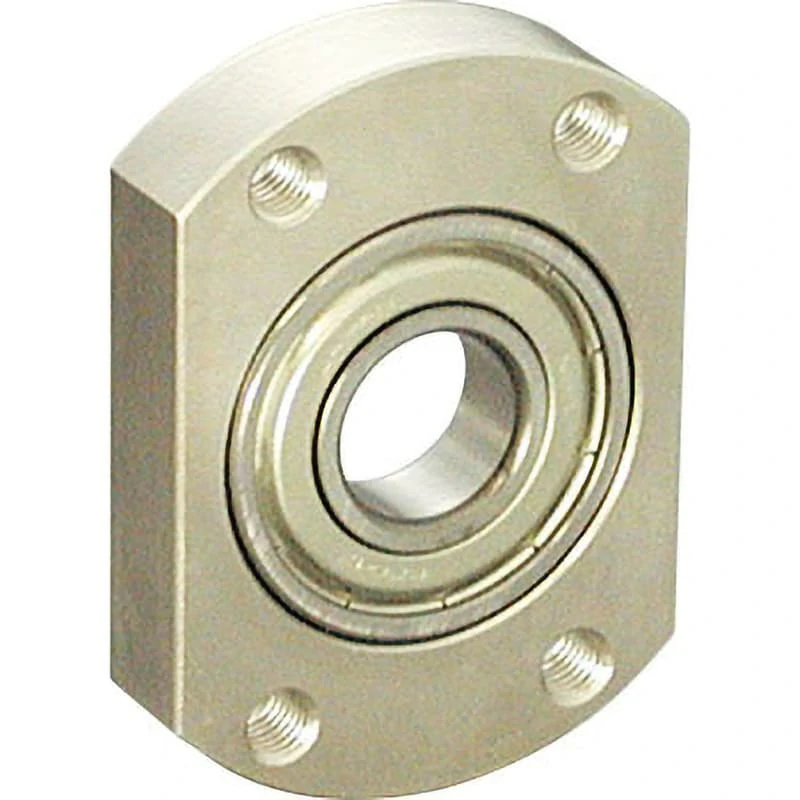

Material: (H)/Lead-Free Electroless Nickel Plating, (B)/Bearing Steel

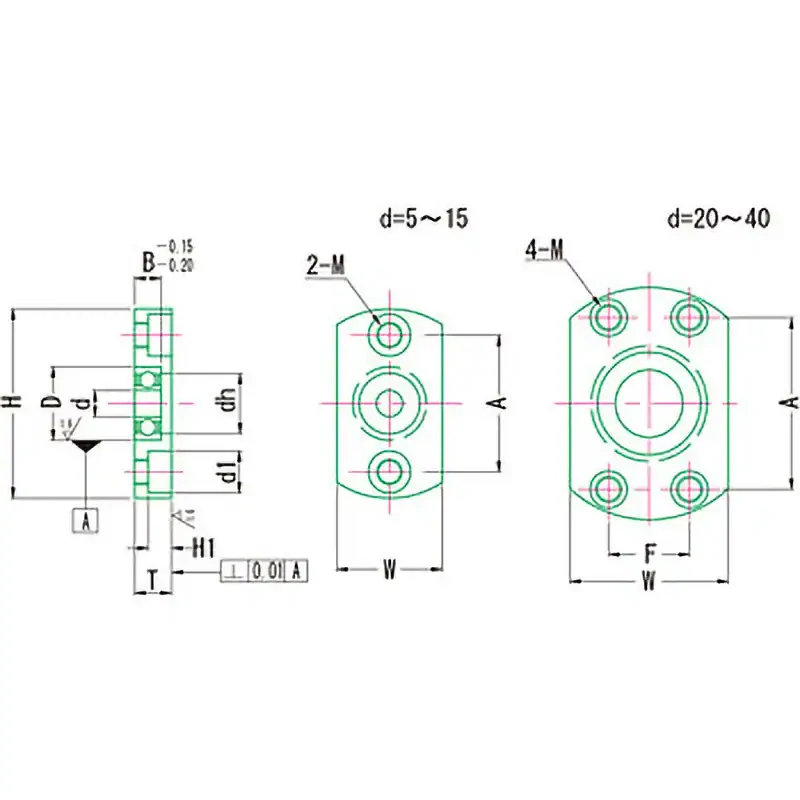

Dimension D: 19.5
Dimension D(mm): 15
Dimension D(mm): (H7) Tolerance: 28+0.021
Dimension B: 7
Dimension H: 57
Dimension W: 37
Dimension T: 9
Dimension DH(mm): 25
Dimension A: 45
Dimension F: –
Dimension M (Bottom Hole): M6*P1.0(5.2)
Weight (g): 106
Dimension H: 1(mm): 5.4
