Description
Capacity: 1 piece

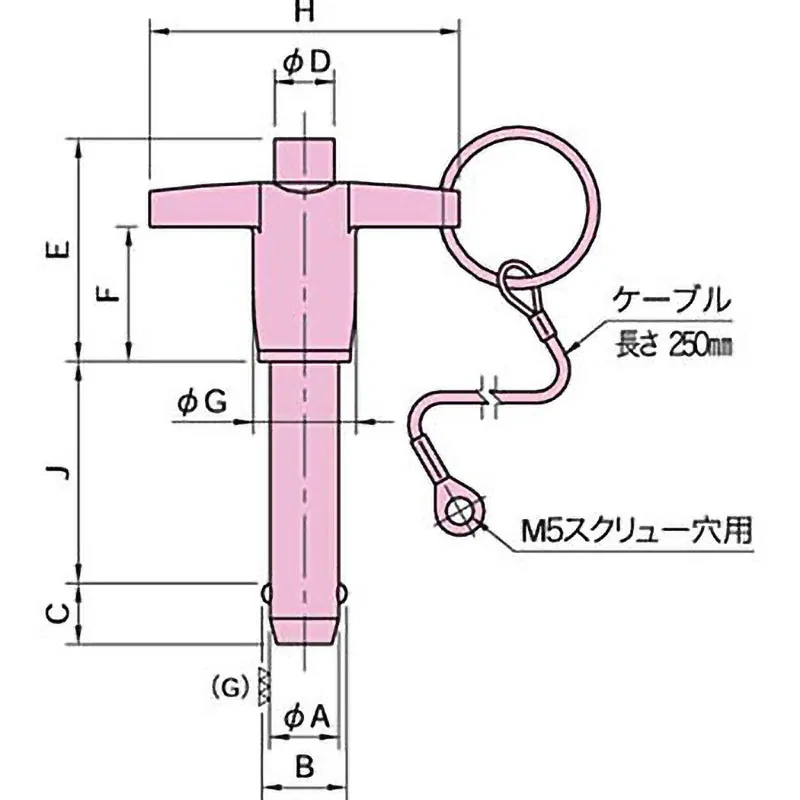

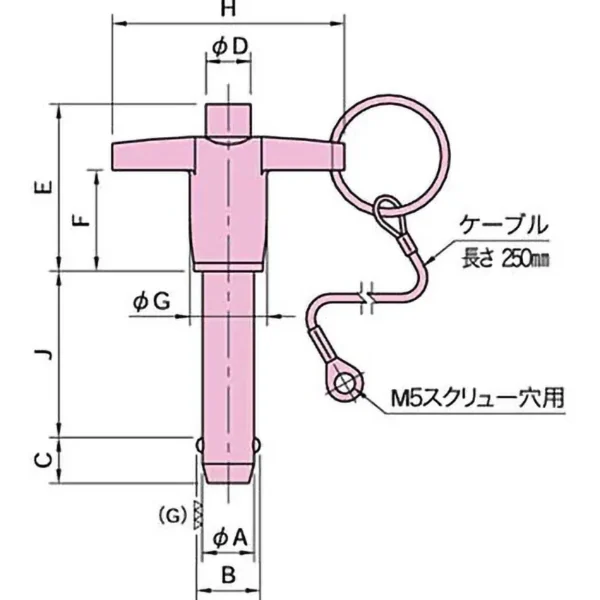

Dimension H (mm): 51
Part number: BJ773-12030-SUS
Weight (g): 80
Dimension H (mm): 51
Dimension A (mm): 12 (-0.02/-0.10)
Dimension F (mm): 24
Dimension D (mm): 11.1
Dimension E (mm): 37
Dimension B (mm): 14.5 (plus or minus 0.3)
Dimension C (mm): 10 (plus or minus 1)
Material: (Ball) SUS440C
Dimension J (mm): 30 (+0.50)
Dimension G (mm): 14.4
Handle color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface treatment: (Shank) Oxidation (passivation) coating, polishing finish
Surface treatment: (Handle) Anodized surface treatment
Minimum two-sided shear strength (kN): 144
Recommended hole inner diameter (mm): 12 (-0.02/-0.10)

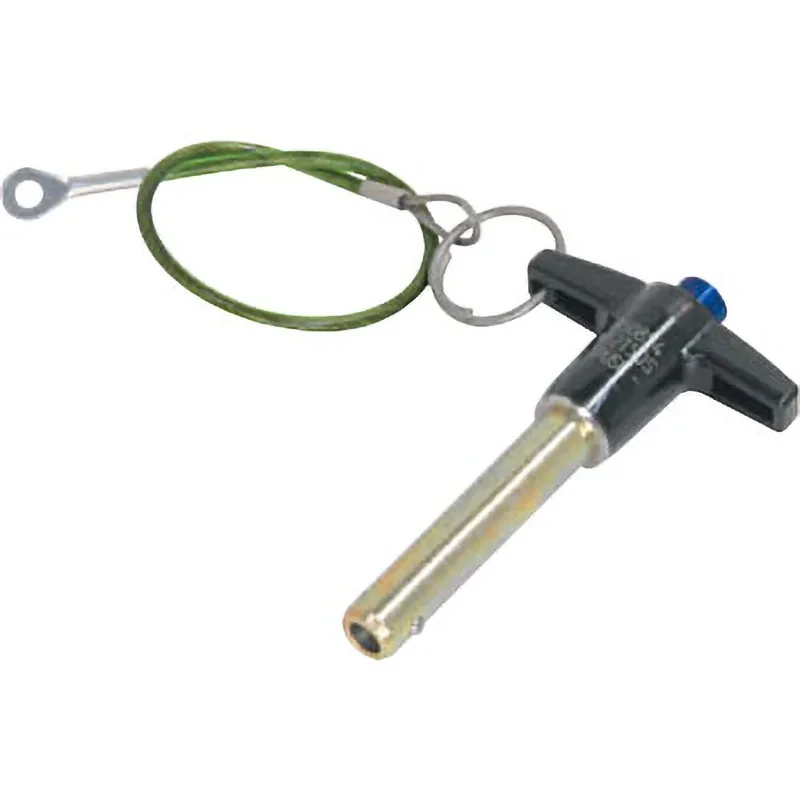

Enables quick and easy one-touch operation for securely fastening and separating workpieces and parts that are frequently joined.
