Description
Content Volume: 1 piece

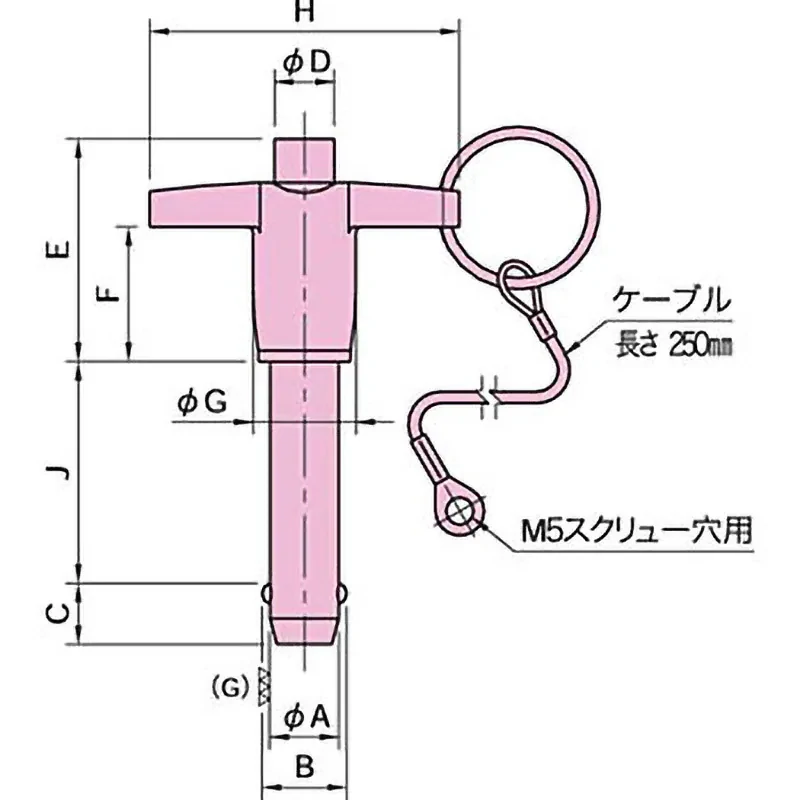

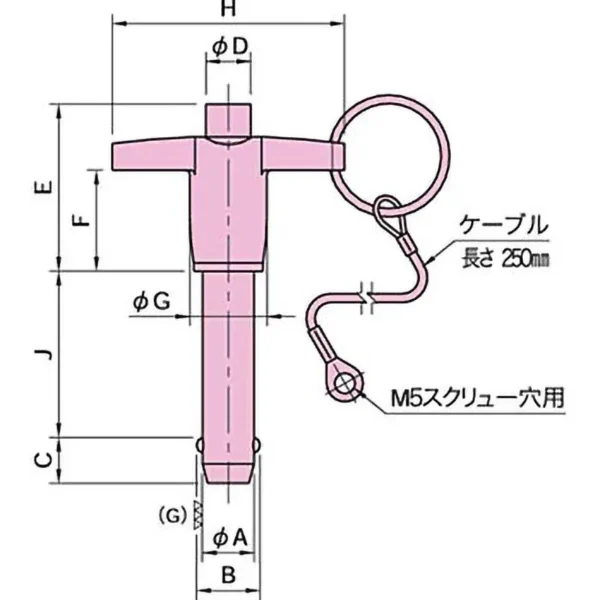

Dimensions H(mm): 51
Part Number: BJ773-10100-SUS
Weight (g): 100
Dimensions H(mm): 51
Dimensions A(mm): 10(-0.02/-0.10)
Dimensions F(mm): 24
Dimensions D(mm): 7.7
Dimensions E(mm): 36
Dimensions B(mm): 11.9(plus or minus 0.3)
Dimensions C(mm): 9(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 100(+0.50)
Dimensions G(mm): 14.1
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passive) Coating, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Two-Shear Strength (kN): 100
Recommended Hole Inner Diameter (mm): 10(-0.02/-0.10)

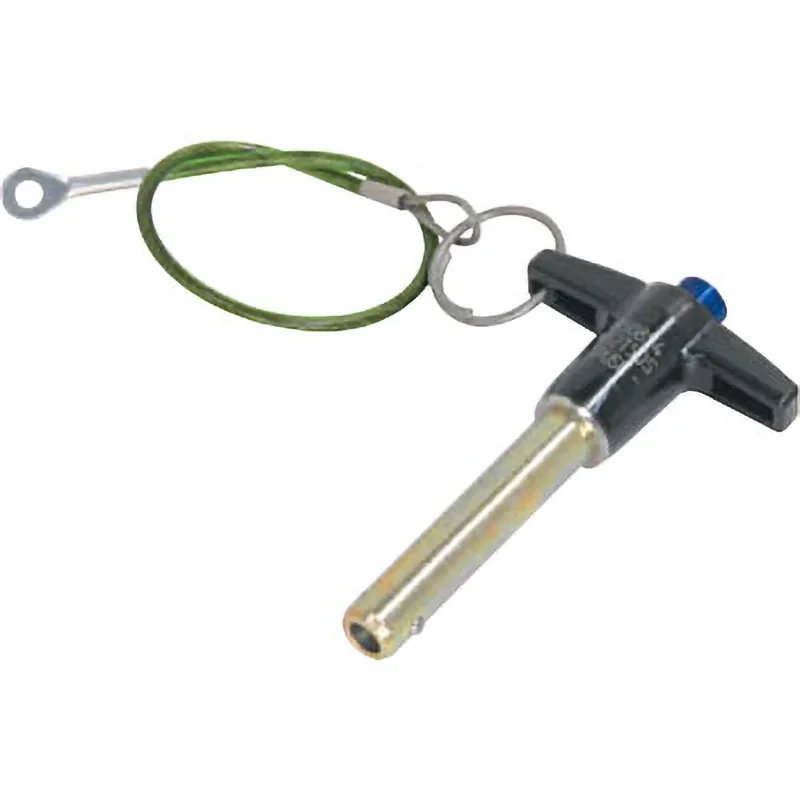

Enables quick, one-touch operation for completely securing and separating workpieces and parts that are frequently joined together.
