Description
Contents: 1 piece

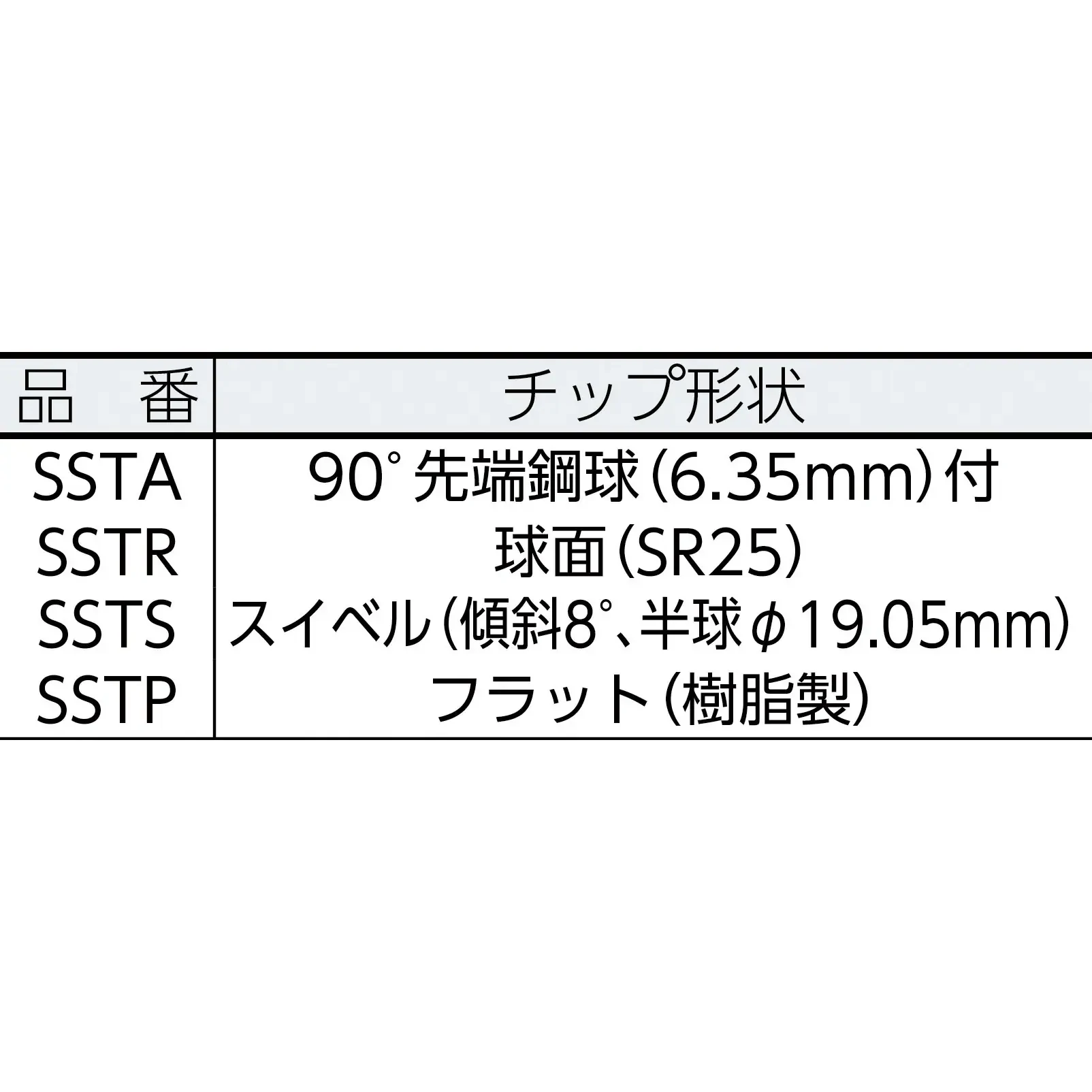

Type: 90 degrees chip (tip hard ball: 6.35)
Part Number: SSTA
Hardness HRC: 40 to 45
Trusco Part Number: 818-8451
Type: 90 degrees chip (tip hard ball: 6.35)
Material: (Main Body) S45C
Weight (g): 50
Fits (Support) FS50S to 300S, MSS50 to 265, FS80LS to 300LS, MSS90LS to 310LS
Leg Length (mm): 10
Chip Diameter (mm): 25
Leg Diameter (mm): 11

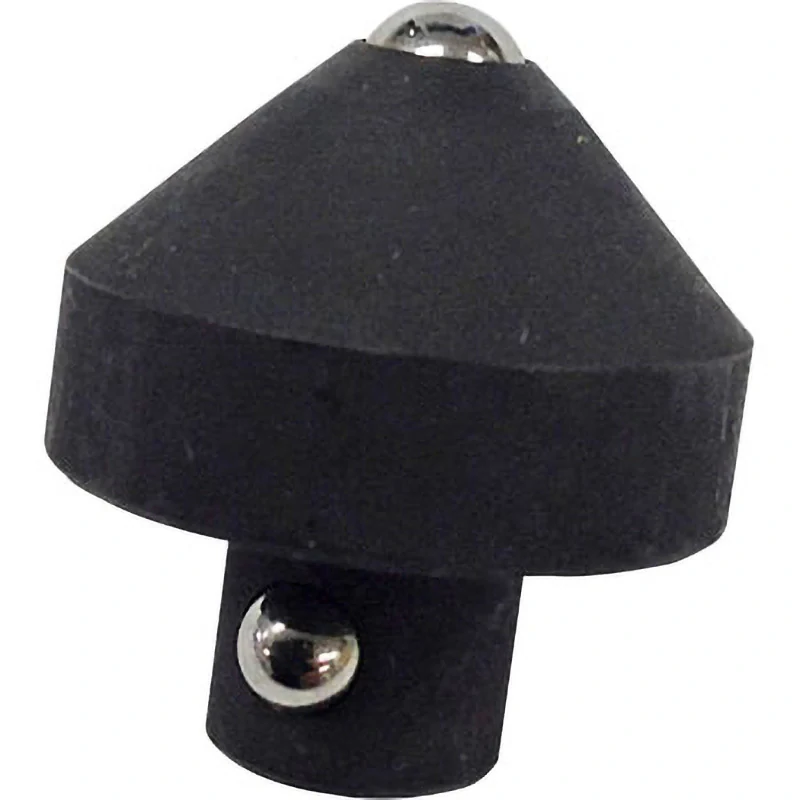

This is a special chip for screw support that accommodates various workpieces.
It is equipped with a ball plunger, making it difficult to detach the chip.
