Description
Contents: 1 piece

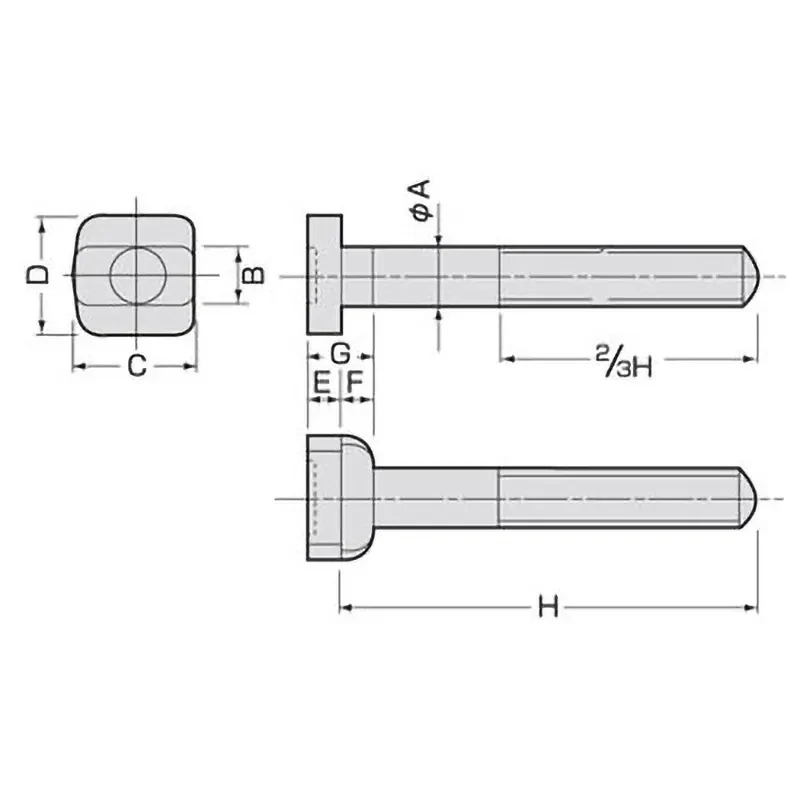

Screw dimensions: M12*1.75
Dimension H(mm): 100
Part number: TBM-12100
Dimension A(mm): 12
Dimension B(mm): 12
Dimension C(mm): 26
Dimension D(mm): 22
Dimension E(mm): 7
Dimension F(mm): 6
Dimension G(mm): 13
Dimension H(mm): 100
Screw dimensions: M12*1.75
Usage: For fixing clamps (jigs) to the table.
Specification: Special bolt precision forged
Trusco part number: 302-8011
Weight (g): 100
Screw length (mm): 66.7
T-slot width: 12mm
A bolt diameter that matches the table T-slot size can be used.

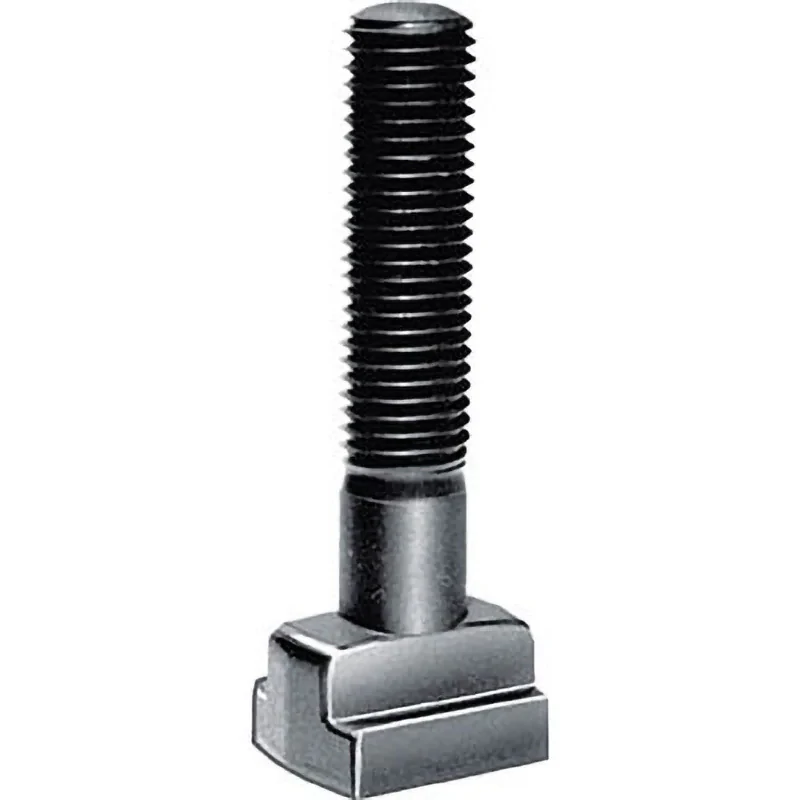

This is a special bolt precision forged from carbon steel.
