Description
Capacity: 1 piece

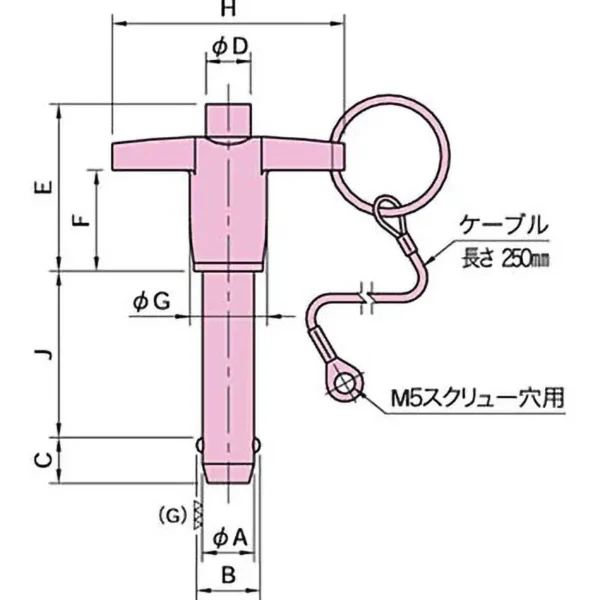

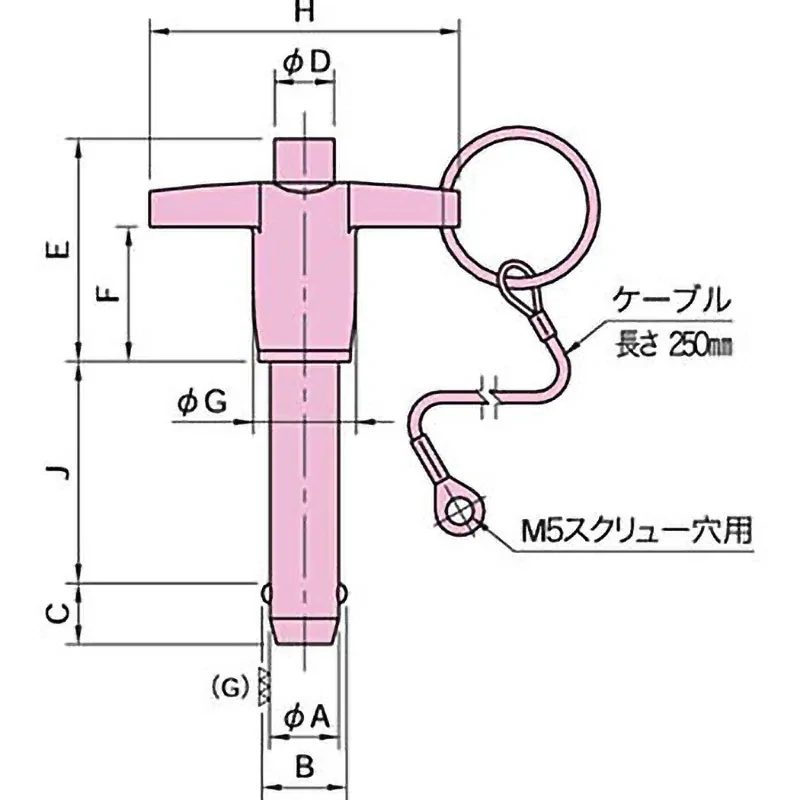

Dimensions H(mm): 51
Product number: BJ773-10025-SUS
Weight (g): 55
Dimensions H(mm): 51
Dimensions A(mm): 10(-0.02/-0.10)
Dimensions F(mm): 24
Dimensions D(mm): 7.7
Dimensions E(mm): 36
Dimensions B(mm): 11.9(plus or minus 0.3)
Dimensions C(mm): 9(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 25(+0.50)
Dimensions G(mm): 14.1
Handle color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface treatment: (Shank) Oxidation (passivation) film, polished finish
Surface treatment: (Handle) Anodized surface treatment
Minimum two-surface shear force (kN): 100
Recommended hole inner diameter (mm): 10(-0.02/-0.10)
Enables quick one-touch operation for securely fastening and separating workpieces and parts frequently repeated.
