Description
Material: Main body: SCM435, Ball: SUJ2, Spring: SWP-B, Spacer: SUS304
Type: Light load

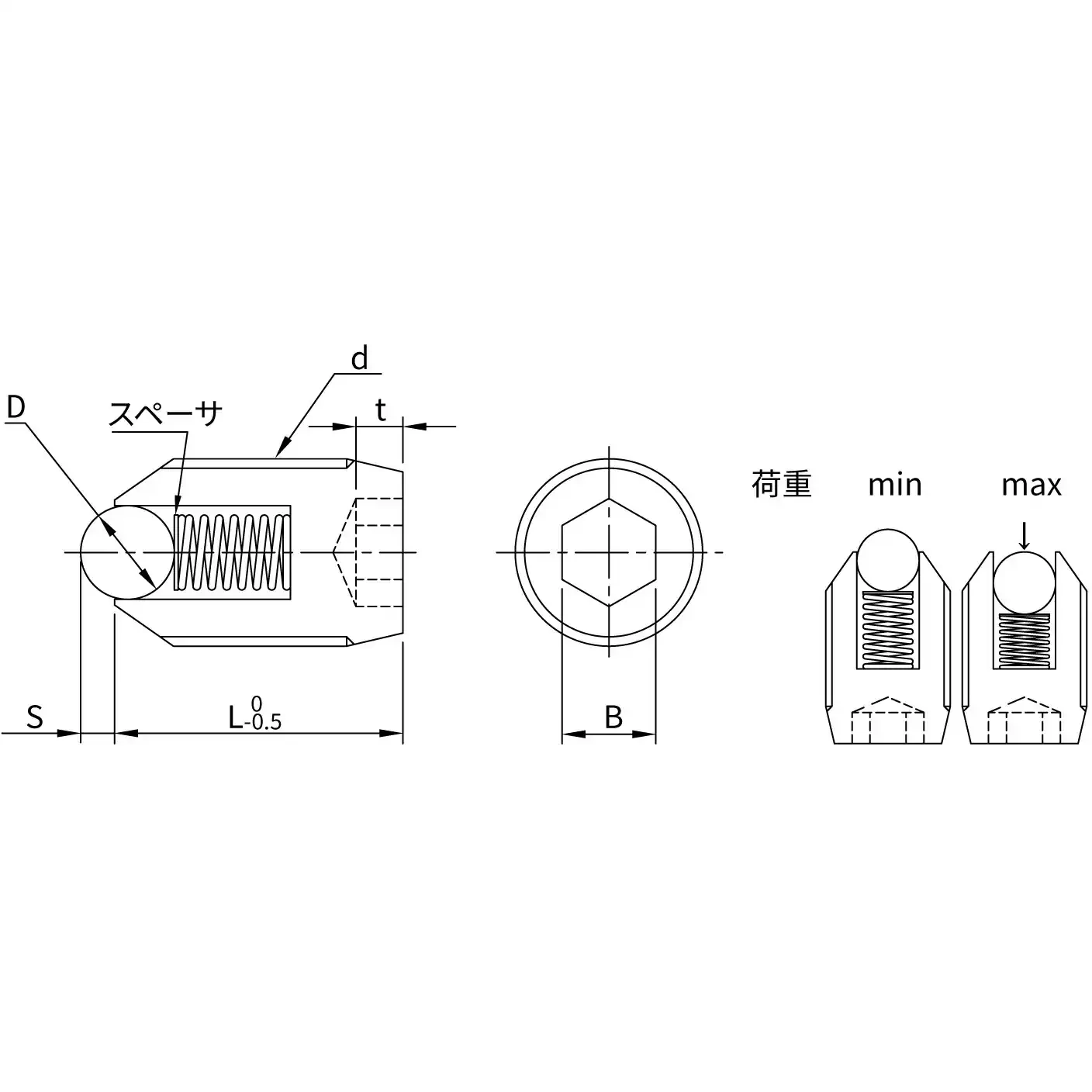

Dimensions L (mm): 12
Hardness Main body: 29 to 35 HRC, Ball: HRC 55 or higher
Dimensions t (mm): 2
Dimensions S (mm): 0.8
Operating temperature (Celsius degrees): -30 to 80
Dimensions D (mm): 3
Surface treatment: Black oxide coating
Dimensions B (mm): 2.5
Dimensions N (mm): 9.8
Nominal diameter: d5
