Description
Contents: 1 piece

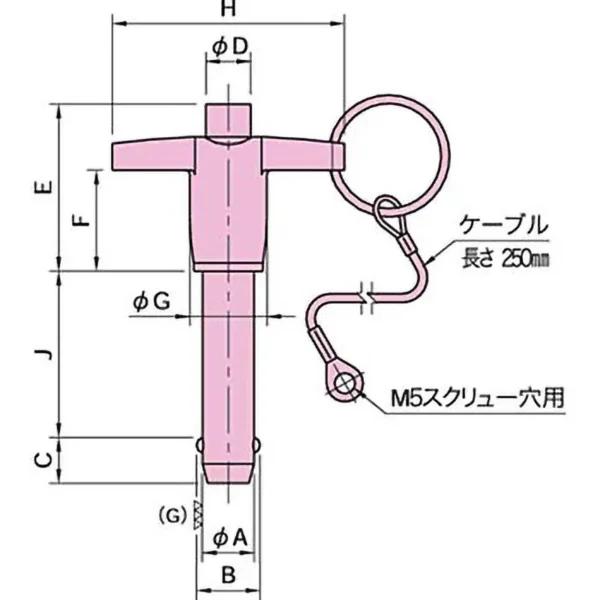

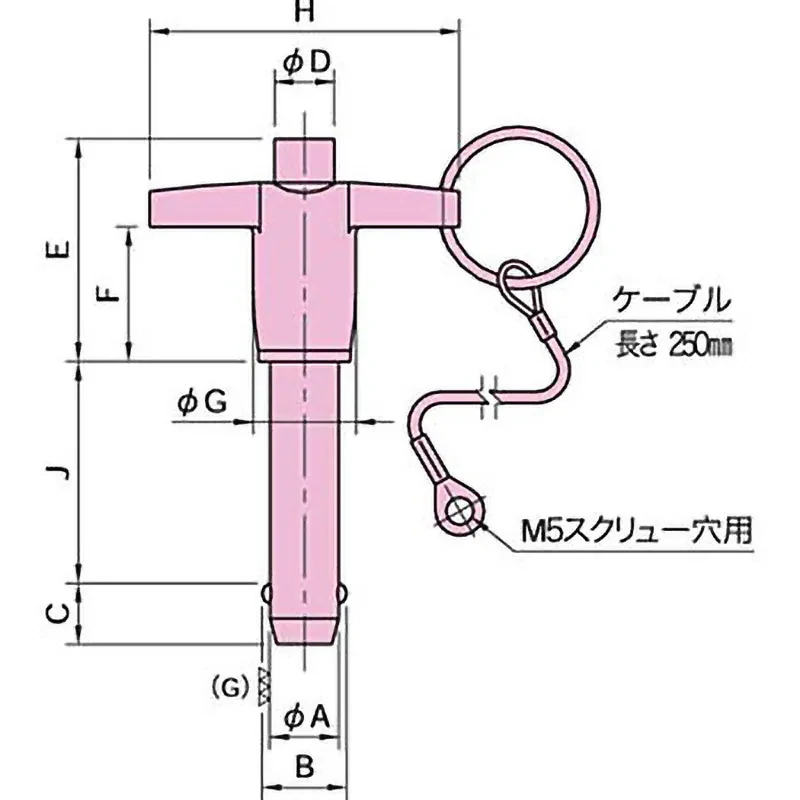

Dimensions H(mm): 46
Part Number: BJ773-08100-SUS
Weight (g): 70
Dimensions H(mm): 46
Dimensions A(mm): 8(-0.02/-0.10)
Dimensions F(mm): 21
Dimensions D(mm): 6.5
Dimensions E(mm): 32
Dimensions B(mm): 9.4(plus or minus 0.3)
Dimensions C(mm): 8(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 100(+0.50)
Dimensions G(mm): 11
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passive) Film, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Two-Shear Strength (kN): 65
Recommended Hole Inner Diameter (mm): 8(-0.02/-0.10)

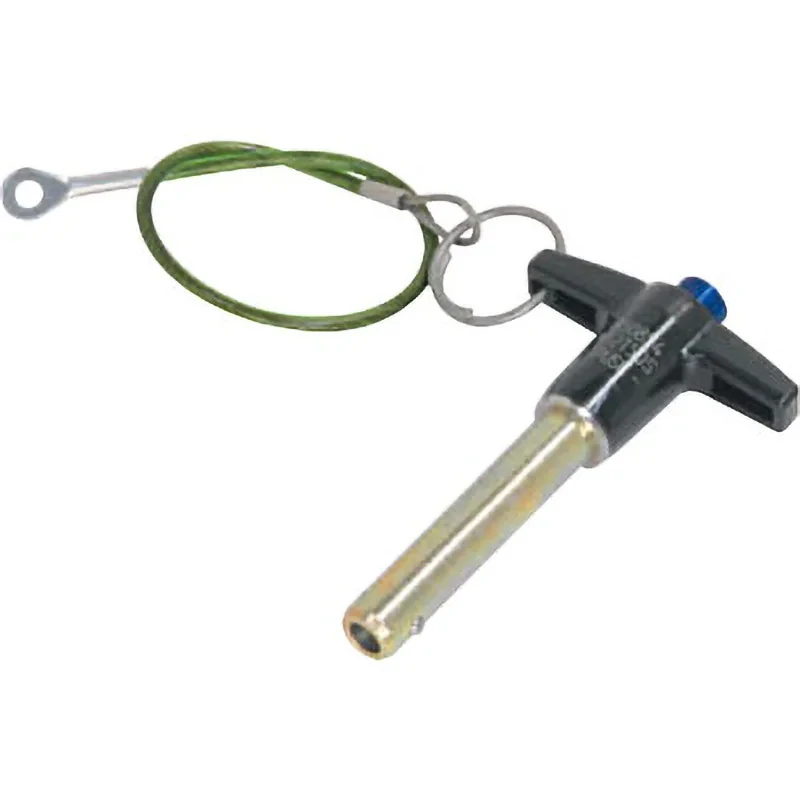

Allows for rapid one-touch operation to completely secure and separate frequently repeated connections between workpieces and parts.
