Description
Material: (H)/Lead-Free Electroless Nickel Plating, (B)/Bearing Steel

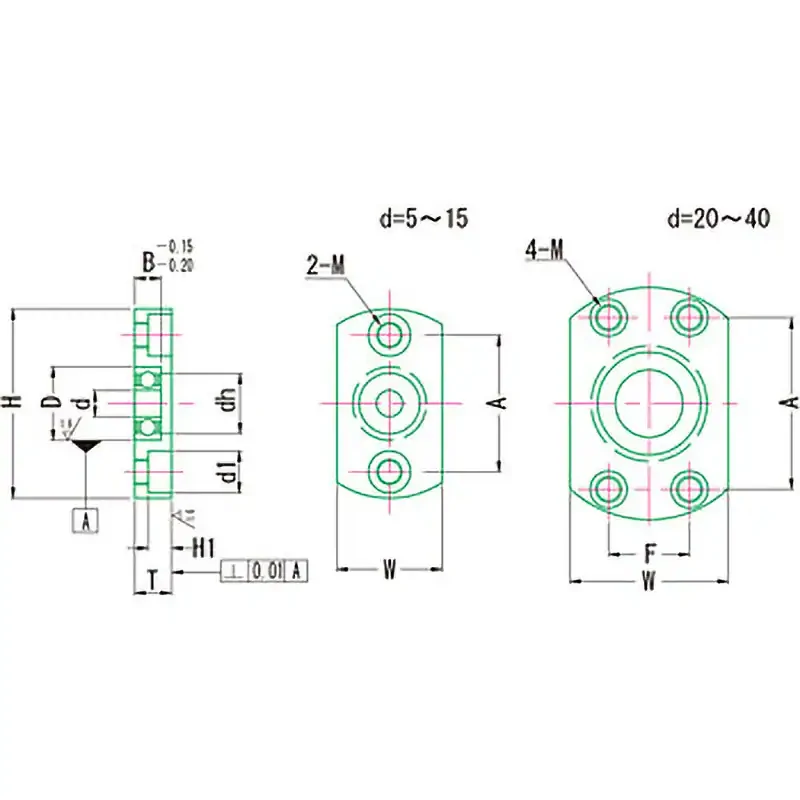

Dimension D: 114
Dimension D (mm): 30
Dimension D (mm): (H7) Tolerance: 55+0.030
Dimension B: 13
Dimension H: 96
Dimension W: 66
Dimension T: 15
Dimension DH (mm): 48
Dimension A: 70
Dimension F: 40
Dimension M (Lower Hole): M10*P1.5 (8.5)
Weight (g): 471
Dimension H: 1 (mm): 8.6
