Description
Material: Body: SCM435, Ball: SUJ2, Spring: SWP-B, Spacer: SUS304
Type: Light Load

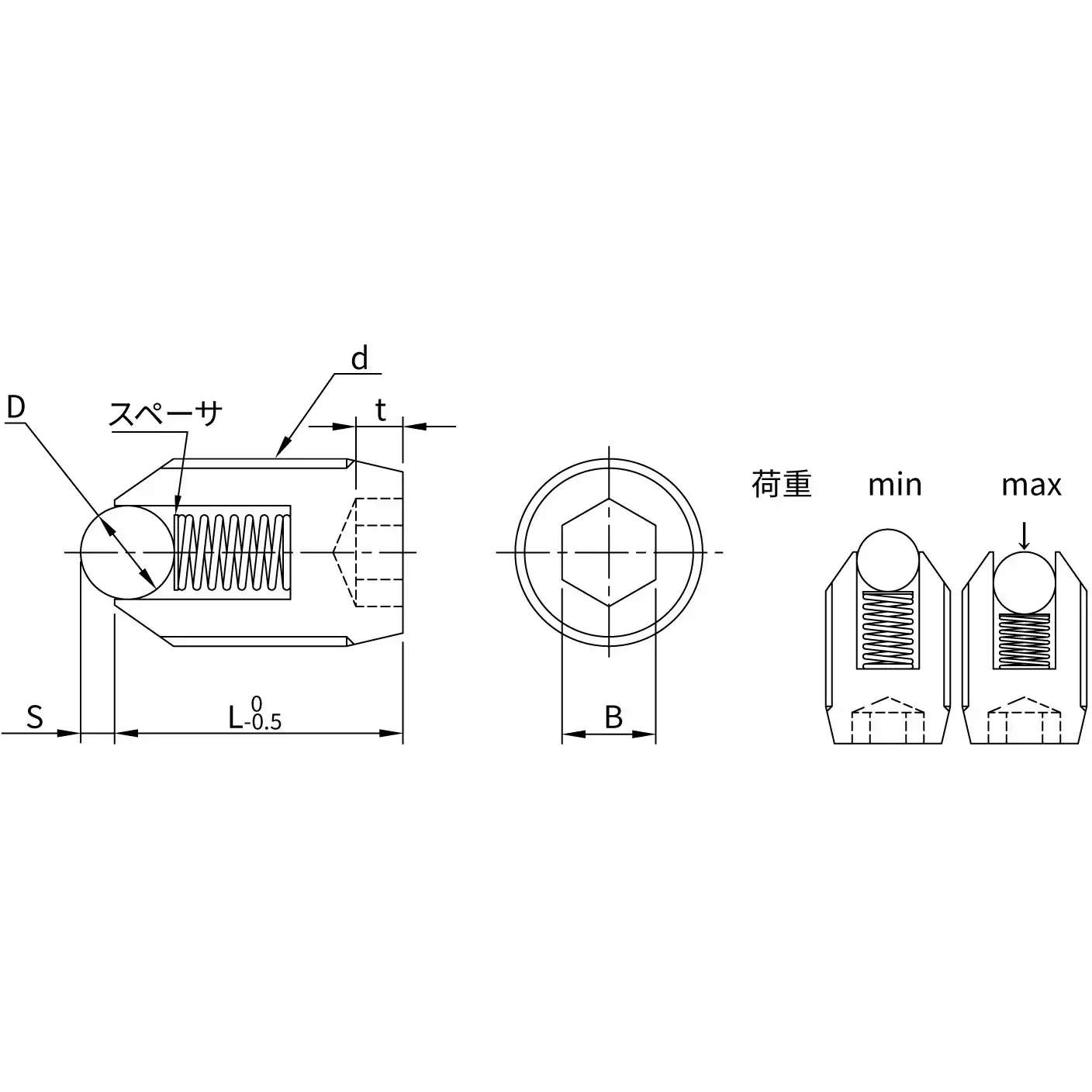

Dimensions L (mm): 25
Hardness Body: 29 to 35 HRC, Ball: HRC 55 or higher
Dimensions t (mm): 3
Dimensions S (mm): 2.5
Operating Temperature (Celsius degrees): -30 to 80
Dimensions D (mm): 9.5
Surface Treatment: Black Oxide Coating
Dimensions B (mm): 8
Dimensions N (mm): 49
Nominal Diameter: d16
