Description
Content: 1 piece
Mounting hole Diameter (mm): M8
Mounting length (mm): 25
Part number: CLMB8-25-B

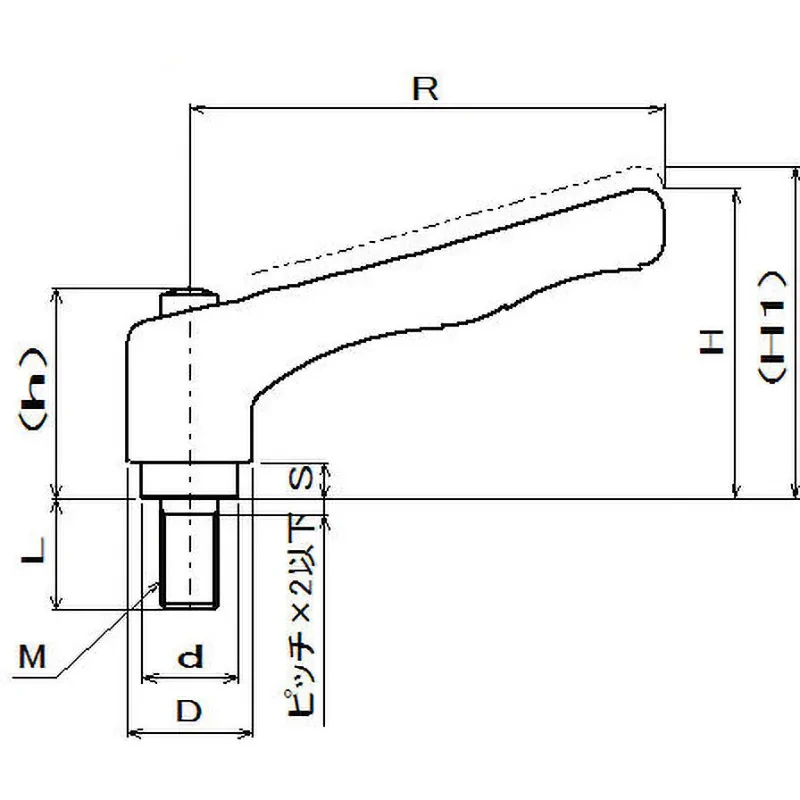

Dimension D (mm): 17.5
Dimension H (mm): 51.4
Dimension H1 (mm): 55.4
Dimension L (mm): 25
Dimension M (mm): M8
Dimension R (mm): 71.3
Dimension S (mm): 7
Dimension d (mm): 14
Dimension h (mm): 35.1

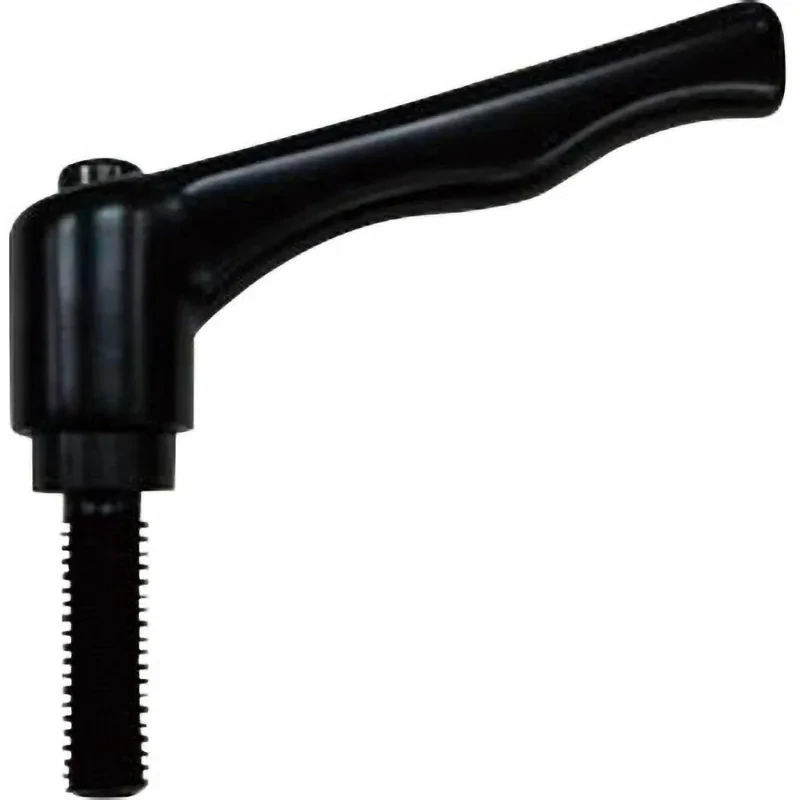

Type: Clamp Lever
Shape: L-shaped
Mounting part: Male Thread
Mounting hole Diameter (mm): M8
Mounting length (mm): 25
Turning radius (mm): 71.3
Material (main body): Zinc die-cast
Material (screw part): S45C
Material (spring part): SUS304-WPB
Surface treatment (screw part): Ferric oxide film
Surface treatment (lever part): Baked paint
Maximum load (N): 316
Maximum tightening force (kN): 12.5
Lever color: Black
