Description

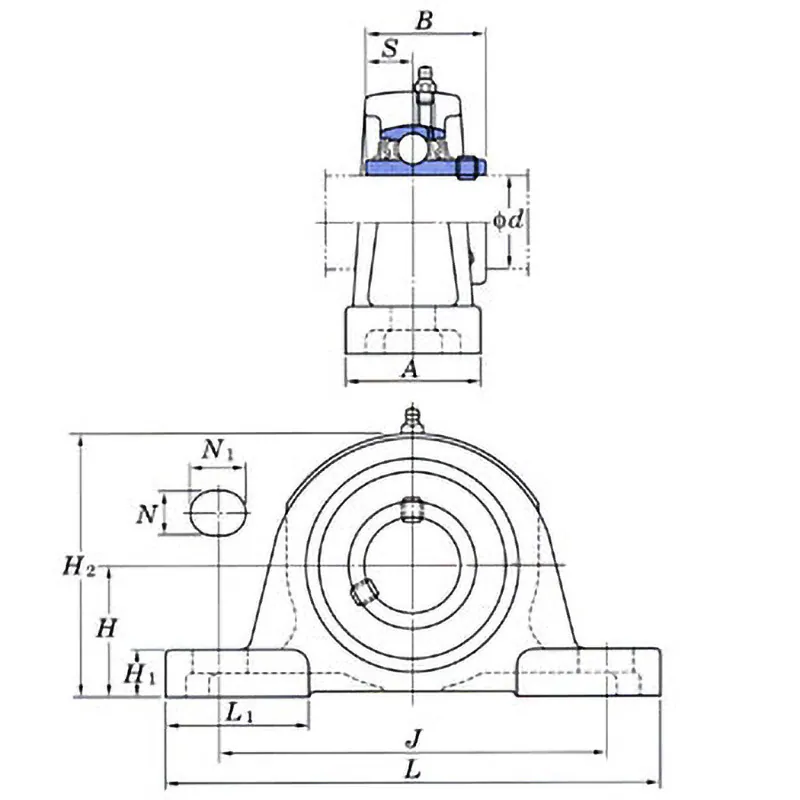

Dimension A (mm): 74
Dimension B (mm): 77.8
Dimension H (mm): 82.6
Dimension H1 (mm): 28
Dimension H2 (mm): 162
Dimension J (mm): 217
Dimension L (mm): 275
Dimension L1 (mm): 80
Dimension N (mm): 25
Dimension N1 (mm): 30
Dimension S (mm): 33.3
Dimension d (mm): 75
Shape: Pillow Shape Unit
Application: Power transmission devices, general machinery, etc.
Compatibility: P215
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Shaft hole type: Cylindrical hole (with set screw)
Basic static load rating (kN): 48.3
Basic dynamic load rating (kN): 67.4
Bearing designation number: UC215
Mounting bolt designation: M20
Coefficient: 14.5
RoHS Directive (10 substances compliance): Compliant

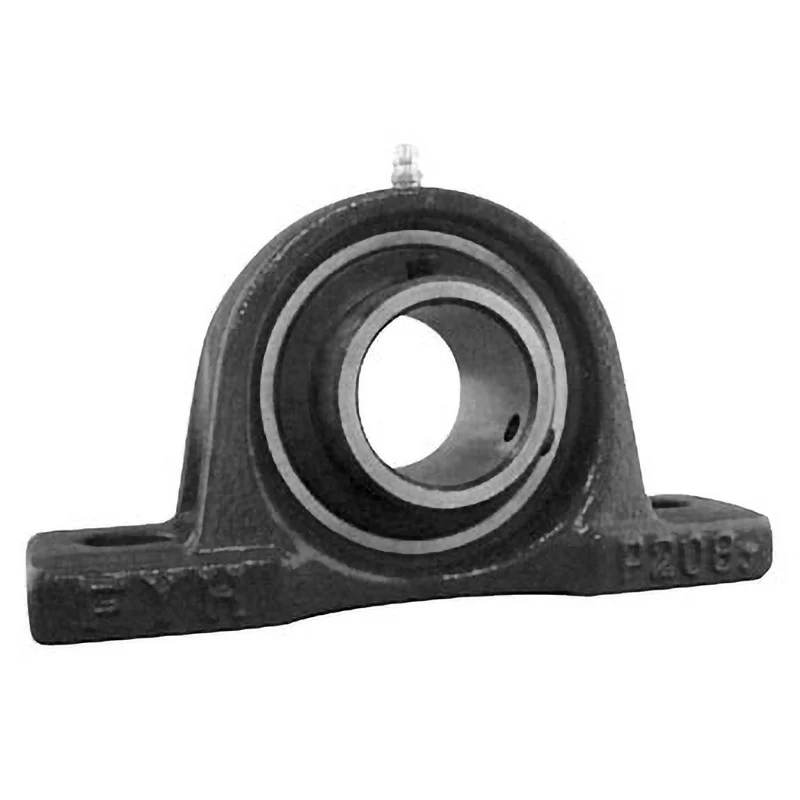

This is the most representative type of rolling bearing unit.
The rib at the base of the bearing box mounting part provides a high-strength structure for loads in all directions.
The mounting of the bearing box to the machine body is done using two bolts.
