Description
Quantity: 1 piece

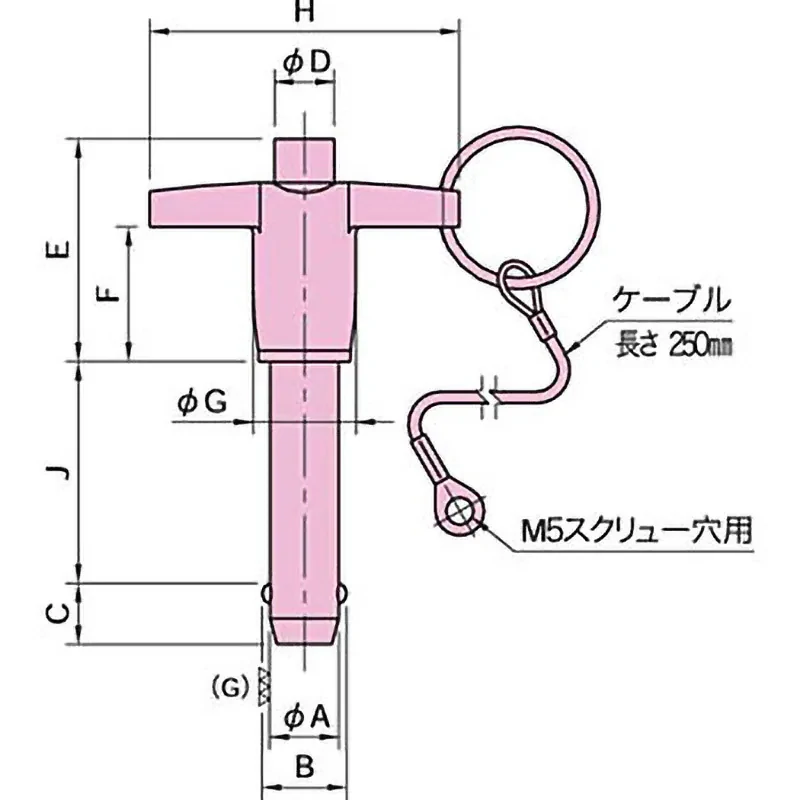

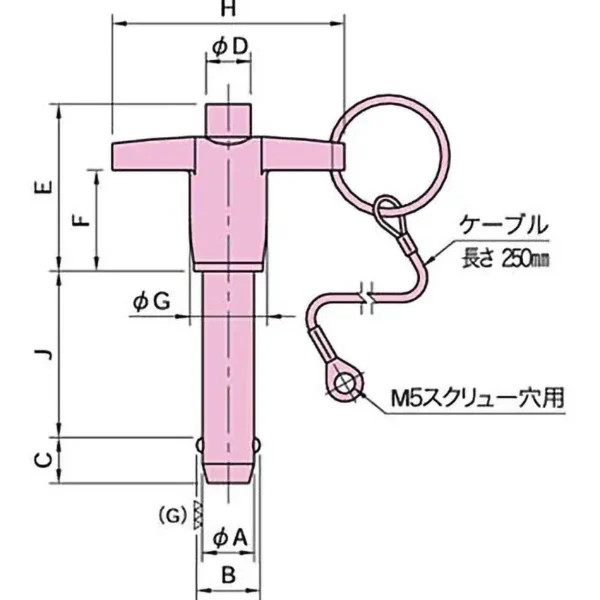

Dimension H (mm): 46
Part Number: BJ773-08050-SUS
Weight (g): 50
Dimension H (mm): 46
Dimension A (mm): 8 (-0.02/-0.10)
Dimension F (mm): 21
Dimension D (mm): 6.5
Dimension E (mm): 32
Dimension B (mm): 9.4 (??0.3)
Dimension C (mm): 8 (??1)
Material: (Ball) SUS440C
Dimension J (mm): 50 (+0.50)
Dimension G (mm): 11
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passive) Coating, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Two-Shear Strength (kN): 65
Recommended Hole Inner Diameter (mm): 8 (-0.02/-0.10)

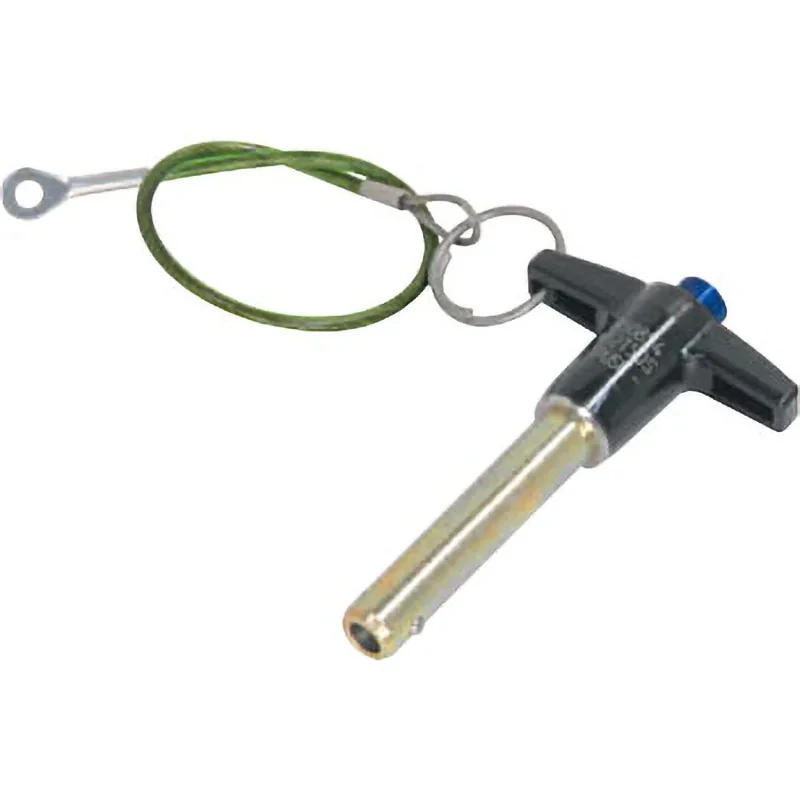

Allows for fast one-touch operation to securely fix and separate workpieces and parts that are frequently connected.
