Description

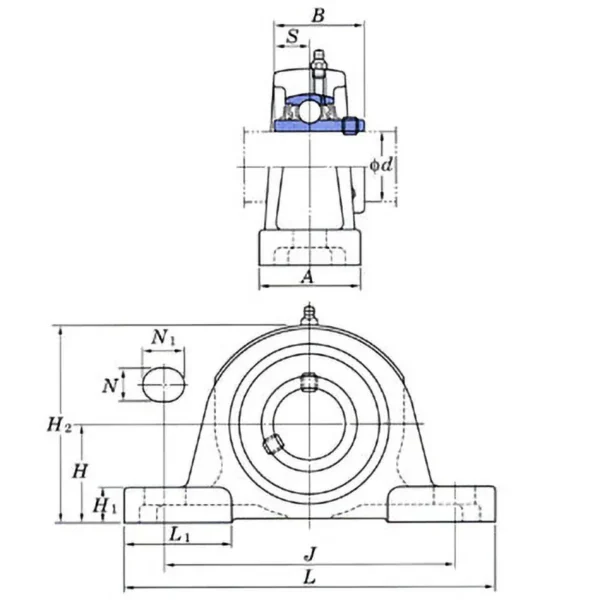

Dimensions A (mm): 70
Dimensions B (mm): 65.1
Dimensions H (mm): 76.2
Dimensions H1 (mm): 25
Dimensions H2 (mm): 150
Dimensions J (mm): 203
Dimensions L (mm): 265
Dimensions L1 (mm): 78
Dimensions N (mm): 25
Dimensions N1 (mm): 30
Dimensions S (mm): 25.4
Dimensions d (mm): 65
Shape: Pillow-shaped unit
Application: Power transmission devices, general machinery, etc.
Compatibility: P213
Grease nipple: With grease nipple
Load type: For light load
Cover: No cover
Bearing hole type: Cylindrical hole (with set screw)
Basic static load rating (kN): 40.1
Basic dynamic load rating (kN): 57.2
Bearing designation number: UC213
Mounting bolt specification: M20
Coefficient: 14.4
RoHS Directive (10 substances compliance): Compliant

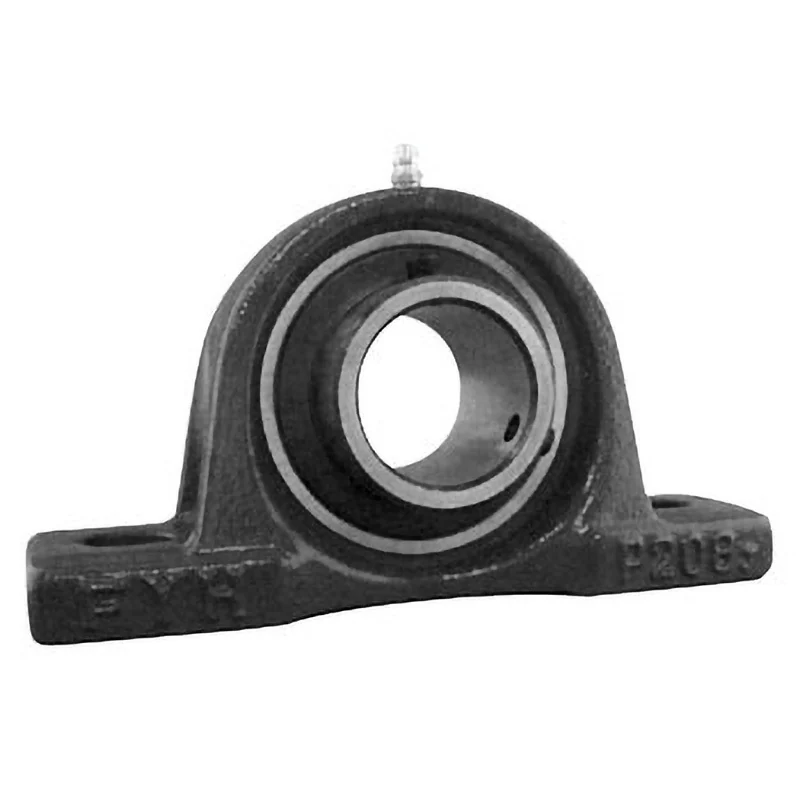

This is the most representative type of rolling bearing unit.
The base of the bearing box mounting section is reinforced with ribs, providing a high-strength structure against loads in all directions.
The mounting of the bearing box to the machine body is done with two bolts.
